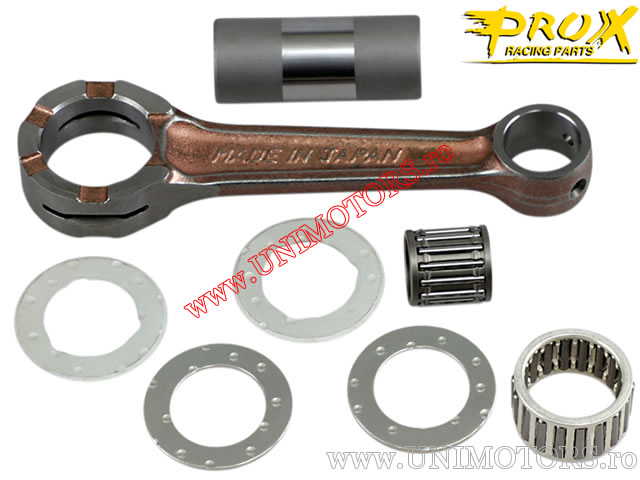

Connecting Rod Kit - Suzuki RM 125 ('04-'12) - ProX

ProX connecting rod kit for Suzuki RM 125 (2004-2012).

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 28.00 mm
- dimension C - distance between bolt centers: 110.00 mm
- dimension D - upper width: 16.00 mm
- dimension E - lower width: 16.00 mm
- dimension F - total length: 143.00 mm
- dimension G - inner length: 86.50 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 53.00 mm
- washers: 22x37x1.50 mm

Made in Japan.
