Connecting Rod Kit - Suzuki RM 250 ('96-'02) - ProX

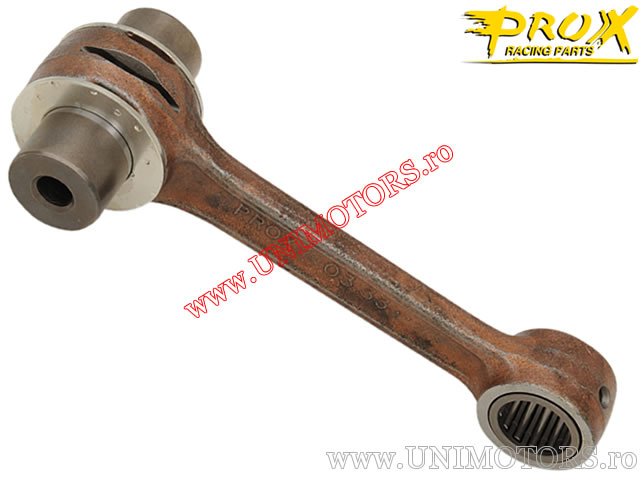

Connecting rod kit ProX for Suzuki RM 250 (1996-2002).

Dimensions:
- dimension A - upper diameter: 23.00 mm
- dimension B - lower diameter: 30.00 mm
- dimension C - distance between bolt centers: 125.50 mm
- dimension D - upper width: 20.00 mm
- dimension E - lower width: 20.00 mm
- dimension F - total length: 161.45 mm
- dimension G - inner length: 99.00 mm
- dimension H - lower bolt diameter: 24.00 mm
- dimension I - lower bolt length: 57.90 mm
- washers: 24x40x1.50 mm

Made in Japan.
