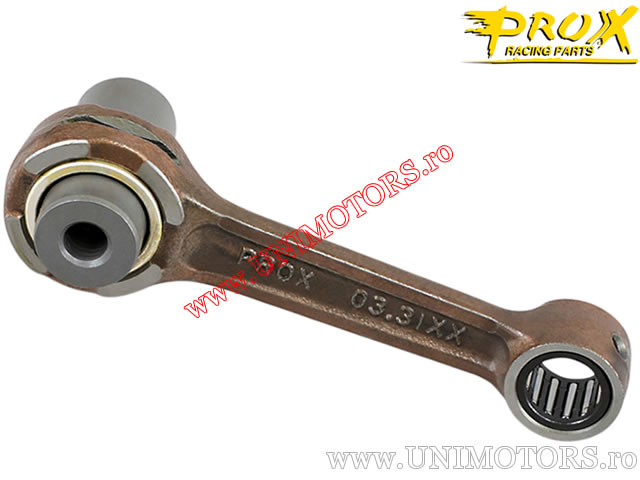

Connecting Rod Kit - Suzuki RM 80 ('90-'01) - ProX

ProX connecting rod kit for Suzuki RM 80 (1990-2001).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 93.60 mm
- dimension D - upper width: 16.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 123.40 mm
- dimension G - inner length: 71.60 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 45.00 mm
- washers: none

Made in Japan.
