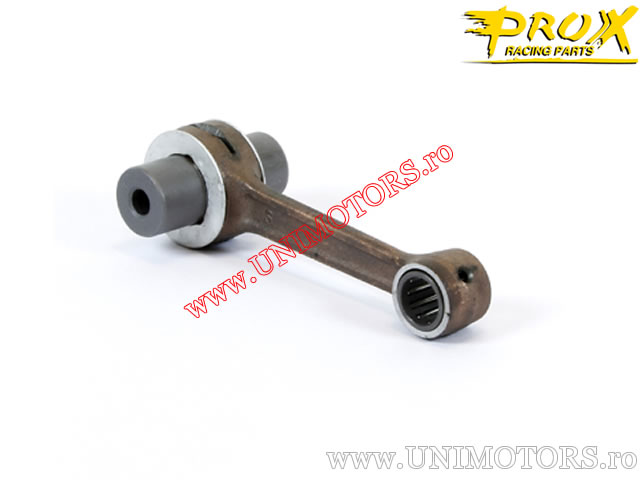

Connecting Rod Kit - Suzuki TS 125 X - ProX

ProX connecting rod kit for Suzuki TS 125 X.

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 28.00 mm
- dimension C - distance between bolt centers: 100.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 15.85 mm
- dimension F - total length: 130.60 mm
- dimension G - inner length: 77.00 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 53.00 mm
- washers: 22x37x1.00 mm

Made in Japan.
