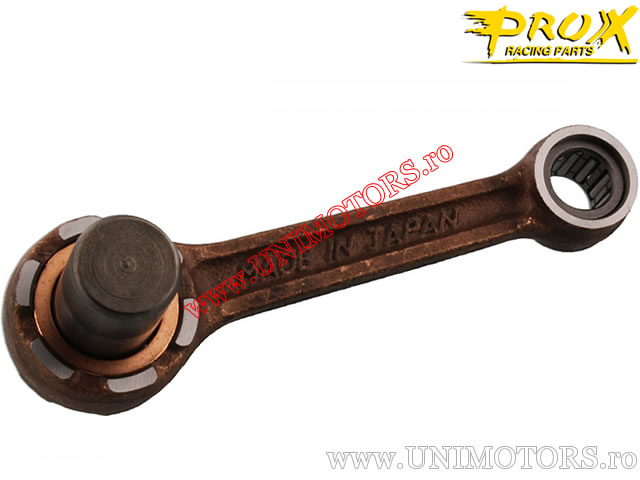

Connecting Rod Kit - Yamaha PW 50 ('81-'20) - ProX

Connecting rod kit ProX for Yamaha PW 50 (1981-2020).

Dimensions:
- dimension A - upper diameter: 14.00 mm
- dimension B - lower diameter: 22.00 mm
- dimension C - distance between bolt centers: 80.00 mm
- dimension D - upper width: 11.75 mm
- dimension E - lower width: 11.75 mm
- dimension F - total length: 104.00 mm
- dimension G - inner length: 61.85 mm
- dimension H - lower bolt diameter: 16.00 mm
- dimension I - lower bolt length: 37.00 mm
- washers: none

Made in Japan.
