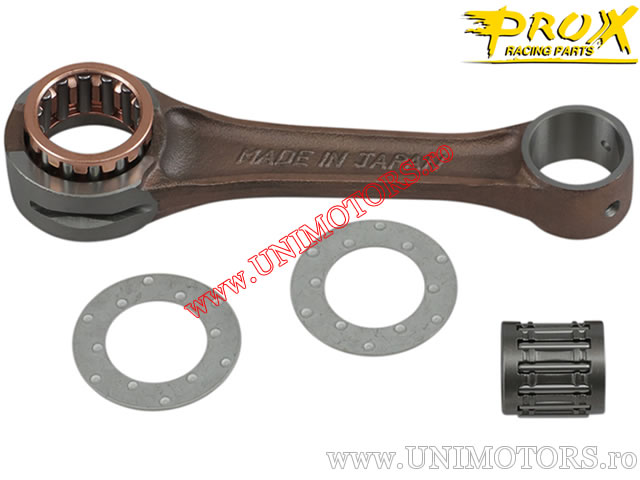

ProX connecting rod kit for Yamaha RD 350 LC YPVS / YFZ 350 Banshee.

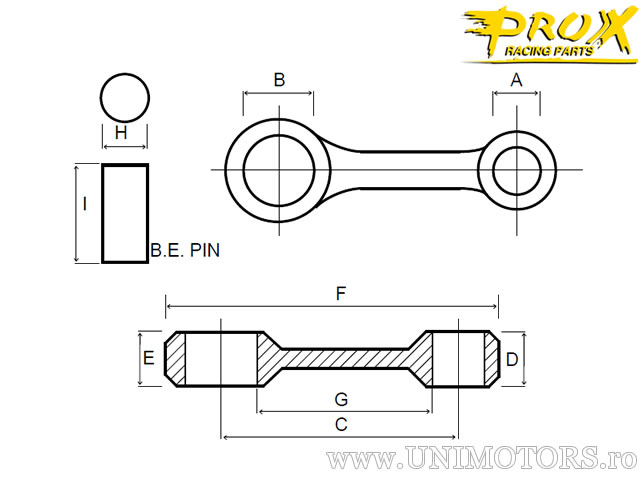

Dimensions:
- dimension A - upper diameter: 21.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 110.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 142.50 mm
- dimension G - inner length: 85.00 mm
- dimension H - lower bolt diameter: -
- dimension I - lower bolt length: -
- washers: 22x37x1.00 mm
- note: does not include lower bolt
Made in Japan.
