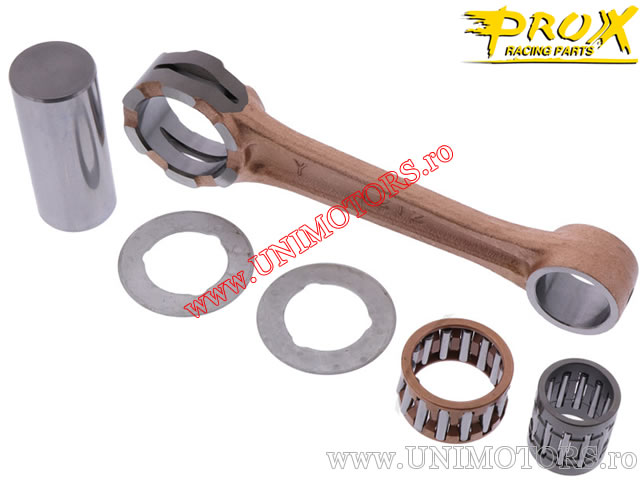

ProX connecting rod kit for Yamaha RD 400 (1976-1979).

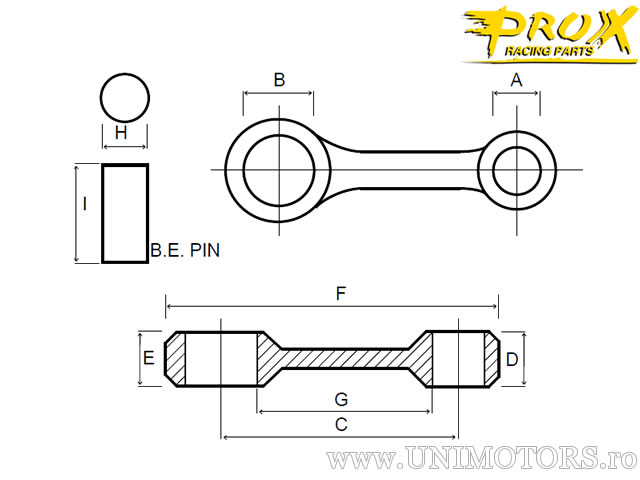

Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 28.00 mm
- dimension C - distance between bolt centers: 115.00 mm
- dimension D - upper width: 16.00 mm
- dimension E - lower width: 16.00 mm
- dimension F - total length: 147.00 mm
- dimension G - inner length: 91.00 mm
- dimension H - lower bolt diameter: 91.00 mm
- dimension I - lower bolt length: 22.00 mm
- washers: 22x37x1.00 mm
Made in Japan.
