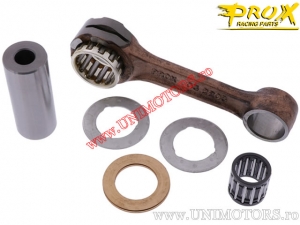

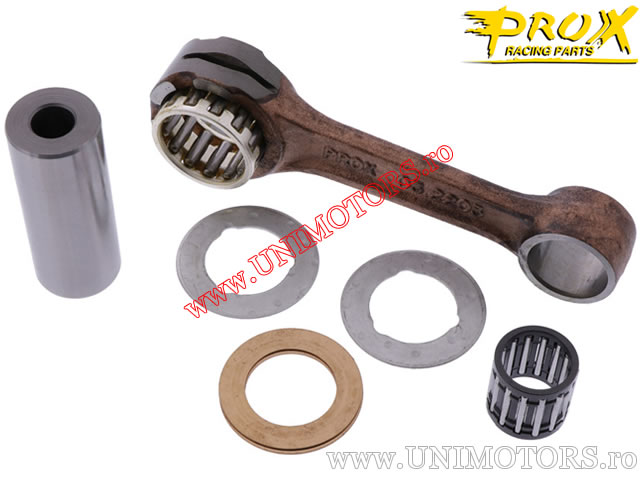

ProX connecting rod kit for Yamaha YZ 125 (1980-1985).
Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 98.00 mm
- dimension D - upper width: 17.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 130.00 mm
- dimension G - inner length: 73.50 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 54.50 mm
- washers: 22x36x0.50 / 22x37x1.00 mm
Made in Japan.
