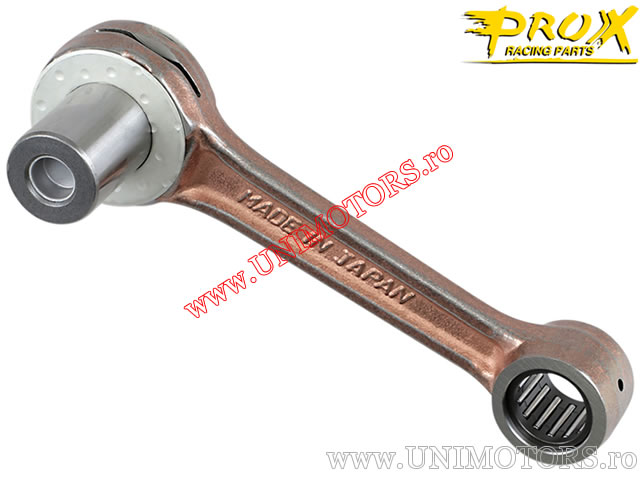

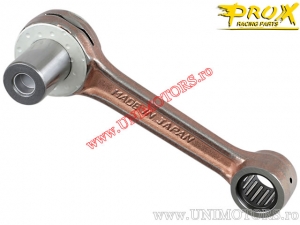

ProX connecting rod kit for Yamaha YZ 250 (1999-2020).

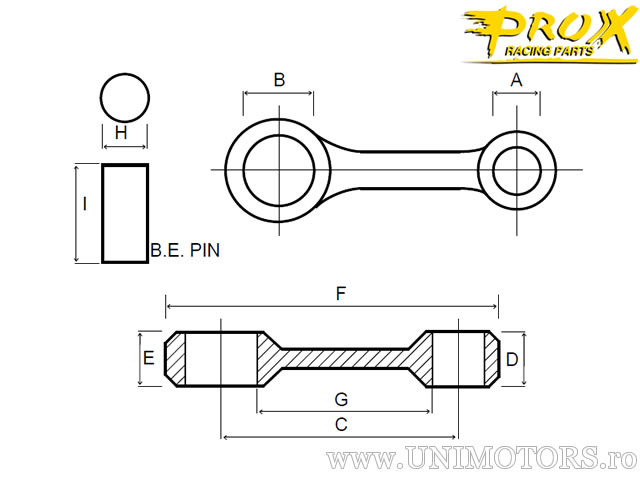

Dimensions:
- dimension A - upper diameter: 22.00 mm
- dimension B - lower diameter: 31.00 mm
- dimension C - distance between bolt centers: 125.00 mm
- dimension D - upper width: 20.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 161.30 mm
- dimension G - inner length: 98.50 mm
- dimension H - lower bolt diameter: 24.00 mm
- dimension I - lower bolt length: 59.00 mm
- washers: 24x41x1.0 mm
Made in Japan.
