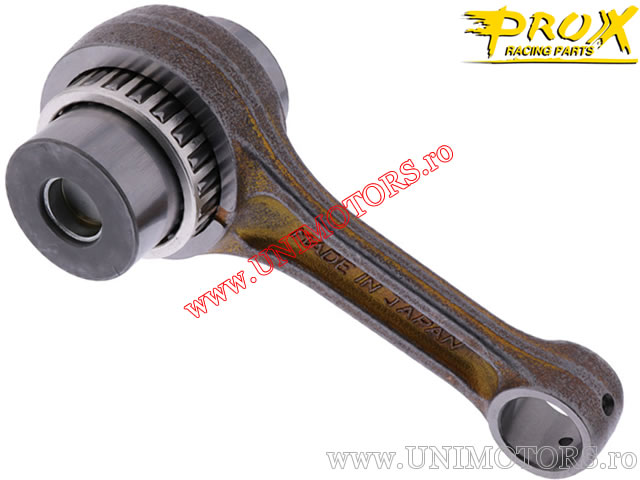

Connecting Rod Kit - Yamaha YZ 450 F ('20) - ProX

ProX connecting rod kit for Yamaha YZ 450 F (2020).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 104.50 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 21.00 mm
- dimension F - total length: 145.15 mm
- dimension G - inner length: 74.50 mm
- dimension H - lower bolt diameter: 34.00 mm
- dimension I - lower bolt length: 60.80 mm
- washers: none

Made in Japan.
