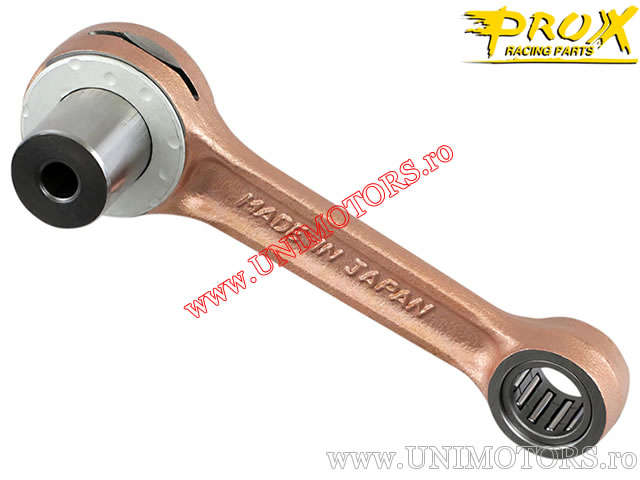

Connecting Rod Kit - Yamaha YZ 80 ('93-'01) / YZ 85 ('02-'18) - ProX

ProX connecting rod kit for Yamaha YZ 80 (1993-2001) / YZ 85 (2002-2018).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 96.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 126.40 mm
- dimension G - inner length: 74.00 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 43.25 mm
- washers: 20x33x1.00

Made in Japan.
