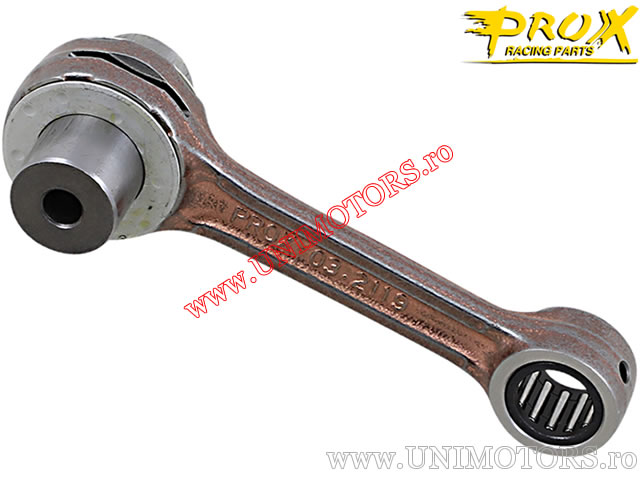

Connecting Rod Kit - Yamaha YZ 85 ('19-'20) - ProX

ProX connecting rod kit for Yamaha YZ 85 (2019-2020).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 92.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 126.60 mm
- dimension G - inner length: 70.00 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 43.25 mm
- washers: 20x33x1.00

Made in Japan.
