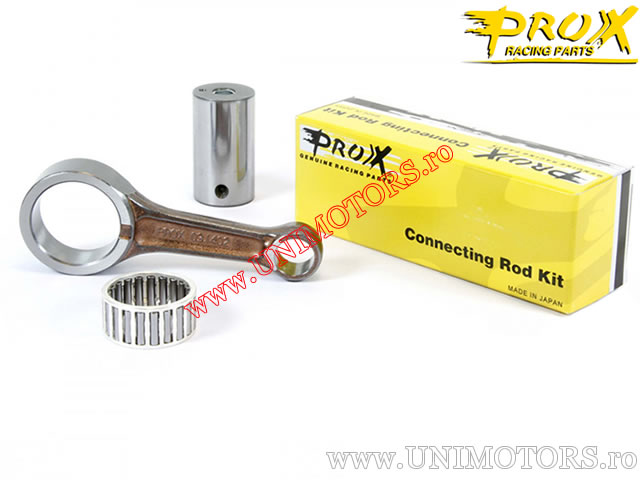

Connecting rod kit - Honda CRF 450 R ('02-'08) - ProX

ProX connecting rod kit for Honda CRF 450 R (2002-2008).

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 105.50 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 19.75 mm
- dimension F - total length: 145.60 mm
- dimension G - inner length: 75.00 mm
- dimension H - lower bolt diameter: 34.00 mm
- dimension I - lower bolt length: 61.00 mm
- washers: none

Made in Japan.
