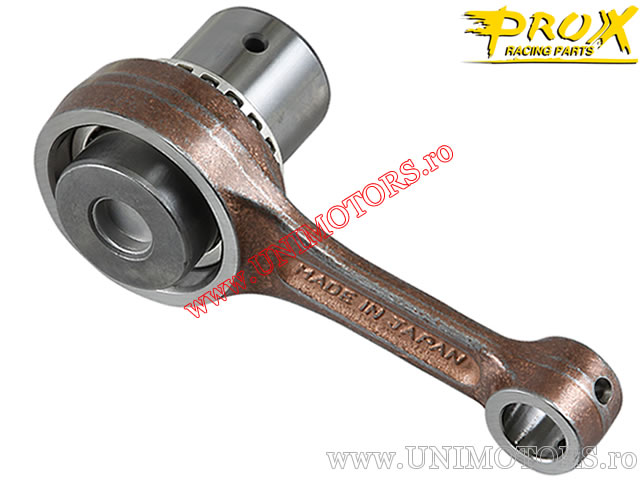

ProX connecting rod kit for Husqvarna TC 250 / TE 250 / TXC 250 (2010-2013).
Dimensions:
- dimension A - upper diameter: 14.00 mm
- dimension B - lower diameter: 40.00 mm
- dimension C - distance between bolt centers: 92.00 mm
- dimension D - upper width: 17.00 mm
- dimension E - lower width: 18.00 mm
- dimension F - total length: 129.30 mm
- dimension G - inner length: 65.00 mm
- dimension H - lower bolt diameter: 32.00 mm
- dimension I - lower bolt length: 56.00 mm
- washers: none
Made in Japan.
