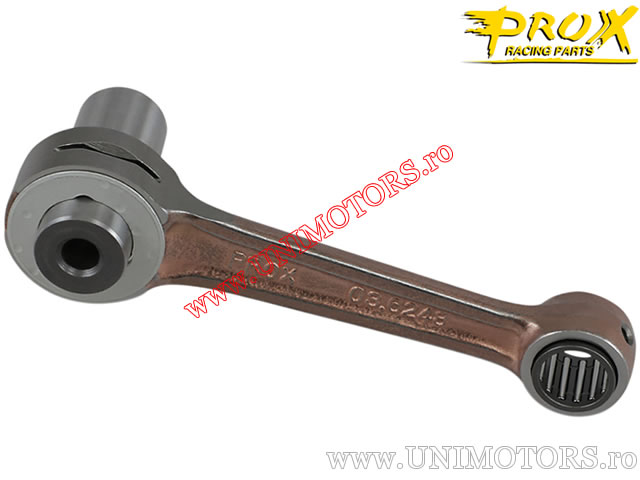

Connecting rod kit - KTM EXC 200 ('98-'16) / SX 200 ('03-'05) - ProX

ProX connecting rod kit for KTM EXC 200 (1998-2016) / SX 200 (2003-2005).

Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 28.00 mm
- dimension C - distance between bolt centers: 118.00 mm
- dimension D - upper width: 15.90 mm
- dimension E - lower width: 15.90 mm
- dimension F - total length: 151.40 mm
- dimension G - inner length: 94.00 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 55.00 mm
- washers: 22x37x1.00

Made in Japan.
