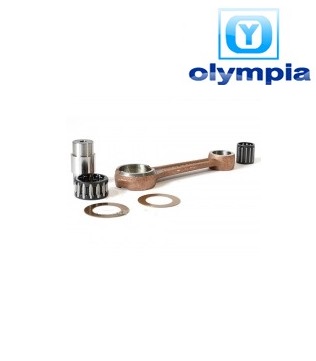

Connecting rod kit - Piaggio Ape MP500 / MP550 2T AC 180cc - Olympia

Connecting rod kit Olympia. Among the most important applications are: Piaggio Ape 180cc: MP 500 / MP 550.

MADE IN ITALY;

Specifications:
- Piston pin hole diameter: 20 mm;
- Crank pin hole diameter: 16 mm;
- Connecting rod length (center of holes): 110 mm;
- Connecting rod width (at piston pin): 15.5 mm;
- Connecting rod width (at lower end): 15.5 mm;
- Total connecting rod length (outer to outer): 145 mm;
- Length 1 (inner hole distance): 85.5 mm;
- Crank pin diameter: 22 mm;
- Crank pin length: 48 mm.
