Connecting rod kit - Suzuki RM 250 ('03-'12) - ProX

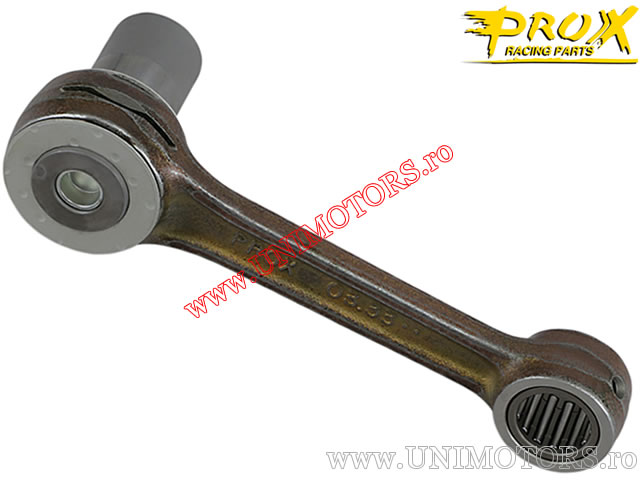

Connecting rod kit ProX for Suzuki RM 250 (2003-2012).

Dimensions:
- dimension A - upper diameter: 23.00 mm
- dimension B - lower diameter: 30.00 mm
- dimension C - distance between bolt centers: 125.00 mm
- dimension D - upper width: 19.85 mm
- dimension E - lower width: 19.85 mm
- dimension F - total length: 161.80 mm
- dimension G - inner length: 98.50 mm
- dimension H - lower bolt diameter: 24.00 mm
- dimension I - lower bolt length: 59.30 mm
- washers: 24x39x1.00 mm

Made in Japan.
