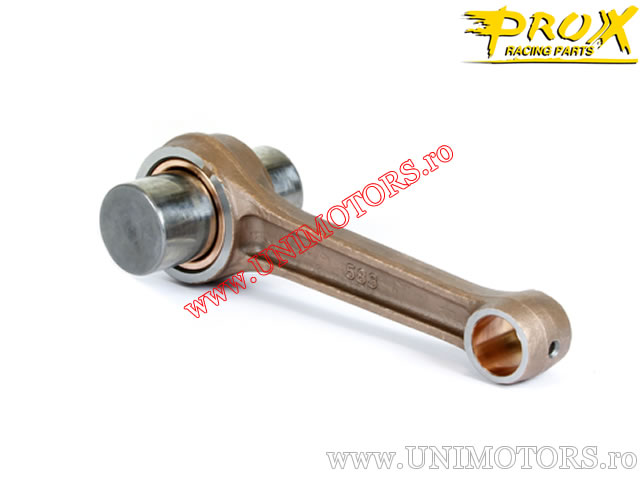

ProX connecting rod kit for Yamaha XT 500 (1976-1977).
Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 145.20 mm
- dimension D - upper width: 23.80 mm
- dimension E - lower width: 23.80 mm
- dimension F - total length: 188.50 mm
- dimension G - inner length: 114.20 mm
- dimension H - lower bolt diameter: 34.00 mm
- dimension I - lower bolt length: 73.70 mm
- washers: none
Made in Japan.
