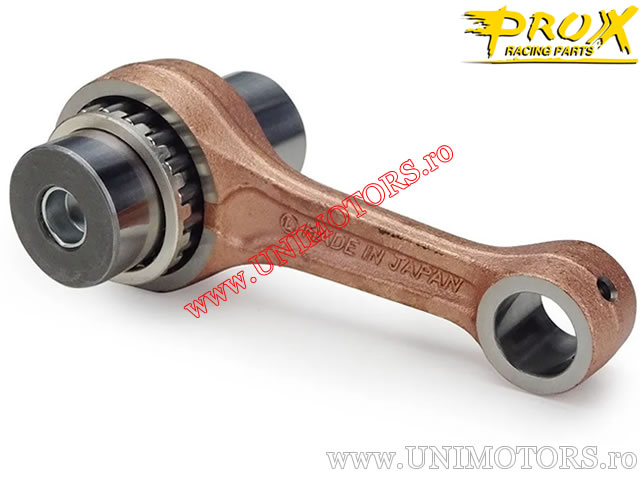

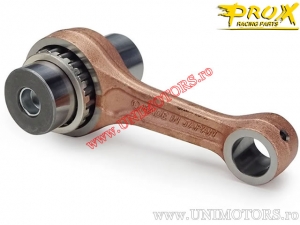

Connecting rod kit - Yamaha YFM 250 R Raptor ('08-'14) - ProX

ProX connecting rod kit for Yamaha YFM 250 R Raptor (2008-2014).

Dimensions:
- dimension A - upper diameter: 17.00 mm
- dimension B - lower diameter: 40.00 mm
- dimension C - distance between bolt centers: 100.50 mm
- dimension D - upper width: 20.00 mm
- dimension E - lower width: 20.00 mm
- dimension F - total length: 139.75 mm
- dimension G - inner length: 72.00 mm
- dimension H - lower bolt diameter: 32.00 mm
- dimension I - lower bolt length: 67.75 mm
- washers: none

Made in Japan.
