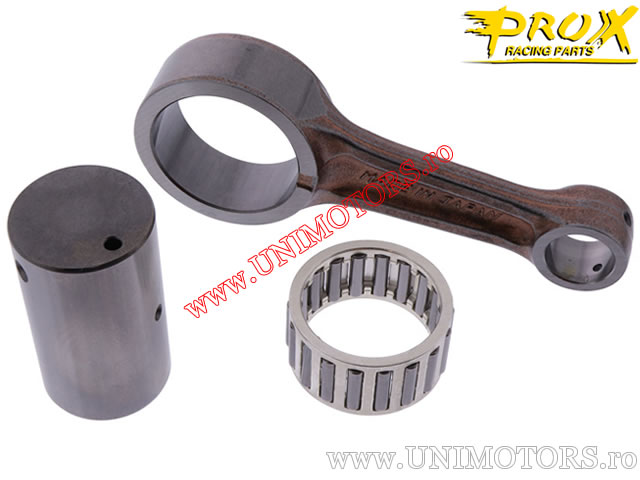

ProX connecting rod kit for Yamaha YFZ 450 R (2009-2013).
Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 45.00 mm
- dimension C - distance between bolt centers: 108.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 23.00 mm
- dimension F - total length: 150.70 mm
- dimension G - inner length: 75.50 mm
- dimension H - lower bolt diameter: 36.00 mm
- dimension I - lower bolt length: 62.80 mm
- washers: none
Made in Japan.
