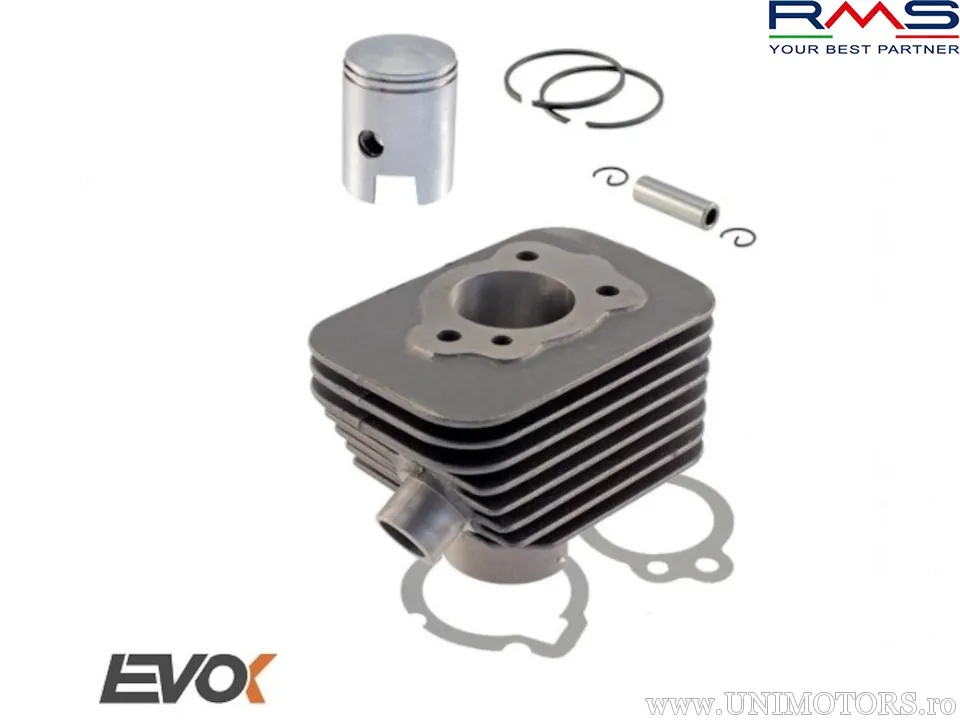

Cylinder set D.38.20 mm bolt 12 - Moped Piaggio Ciao / Boxer / Bravo/ Si 2T AC 50cc - RMS

Motor cylinder set RMS. Among the most important applications are: Piaggio 50cc Moped: Boxer / Bravo / Ciao / Si.

Features:
- Piston diameter: 38.20 mm;
- Piston pin diameter: 12 mm;
- Cylinder stud spacing (diagonal): A-56.50 mm / B-58.00 mm;
- Cylinder height: 60.50 mm;
- Skirt diameter: 45.00 mm;
- Skirt height: 30.5 mm;
- RMS premium variant (high-quality);
- Manufacturer: EVOK (for RMS).
