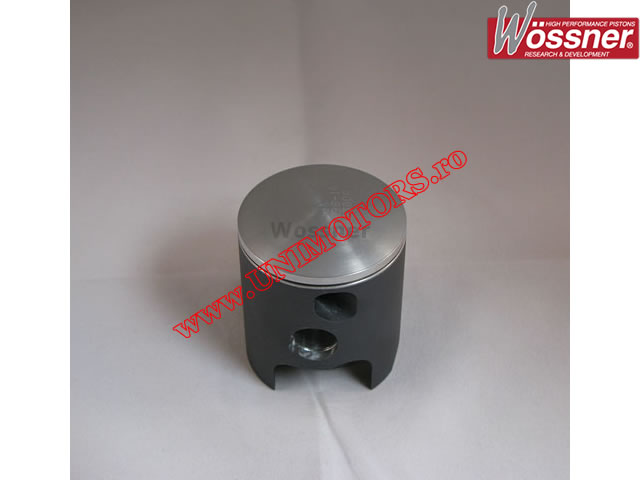

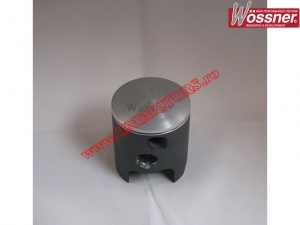

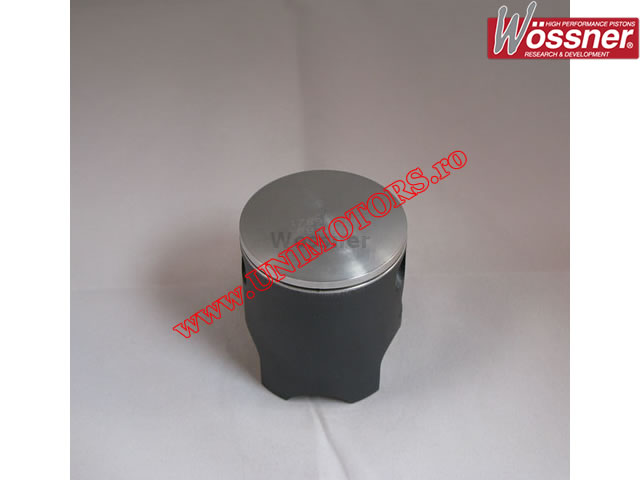

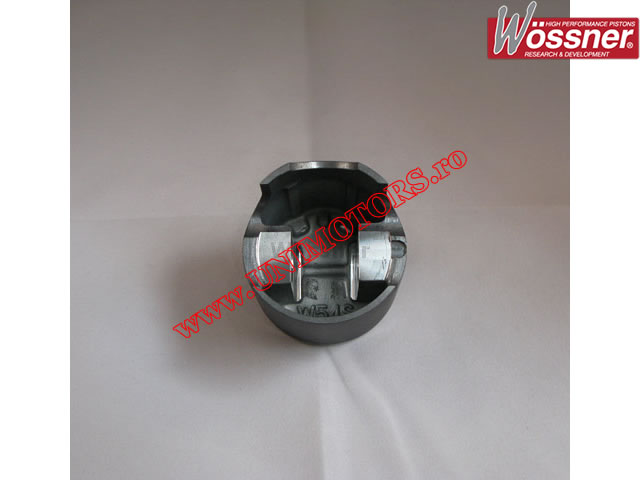

Forged piston kit Wossner for KTM SX 125 manufactured between 1984-1986.
The kit includes piston, ring, pin, and circlips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 54.00mm
- thermal clearance: 0.06mm
- pin-to-top distance (measured from the center of the pin): 30.00mm
- piston pin dimensions: 15x10x45mm.
Available piston sizes:
- A (53.94 mm)
- B (53.95 mm)
- C (53.96 mm)
