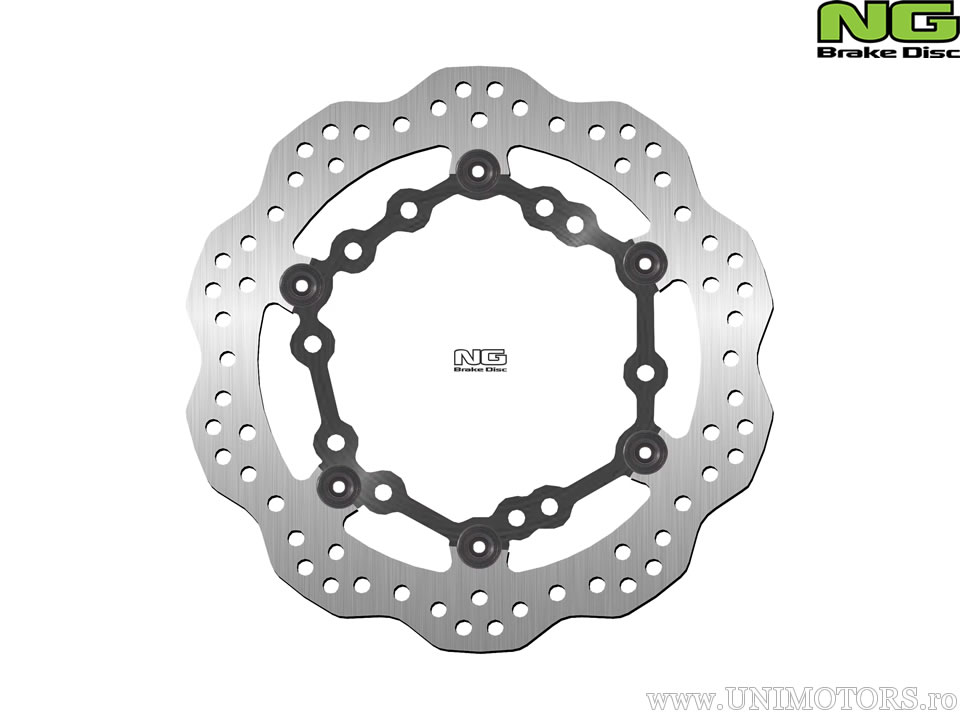

Front floating brake disc Wave NG Brake Disc for left: YAMAHA IRON 250 MAX (2016-) / XMAX 250 IRON MAX YP R ABS (2014-2016) / XMAX 250 YP R ABS (2011-2016) / left / right: YAMAHA GRAN 400 MAJESTY SP (2005-) / GRAND 250 MAJESTY (2004-2005) / MAJESTY 400 YP / ABS (2004-2013) / TMAX 530 / ABS (2017-2019) / TMAX 530 / TMAX ABS (2012-2014) / TMAX 530 / TMAX ABS (2015-2016) / TMAX 530 DX 2019 ABS (2017-2021) / TMAX 530 IRON MAX / ABS (2015-2016) / TMAX 530 LUX MAX / ABS (2015-2016) / TMAX 530 SX ABS (2017-2019) / TMAX 530 SX SPORT EDITION ABS (2017-2019) / TMAX 562 / TMAX TECH MAX ABS (2020-2023) / XMAX 400 ABS (2013-2014) / XMAX 400 ABS (2015-2021) / XMAX 400 IRON MAX ABS (2016-) / XMAX 400 IRON MAX ABS (2017-2020) / XMAX 400 TECH MAX ABS (2020-2021) / XMAX 400 X-MAX SPORT / ABS (2017-2018) / XP 500 T-MAX (2008-2011) / XP 500 T-MAX / BLACK MAX (2004-2007) / right: YAMAHA XMAX 125 YP R ABS (2010-2013) / XMAX 125 YP R non ABS (2006-2013) / XMAX 250 YP R non ABS (2005-2013) / XMAX 250 YP R SPORT ABS (2010-2013).
The Spanish manufacturer NG Brake Disc is TUV certified, complies with ISO 9001:2000 standards, and represents the original equipment (OEM) for numerous European and Japanese brands.
Technical data:
- disc type: floating;
- outer diameter: Ø 267.00 mm;
- inner diameter: Ø 132.00 mm;
- thickness: 4.00 mm;
- number of bolts: -;
- bolt diameter: 8.25 mm.
The complete application list can be found below.
