Front Racing Brake Disc MSW247RAC Floating - Lucas TRW

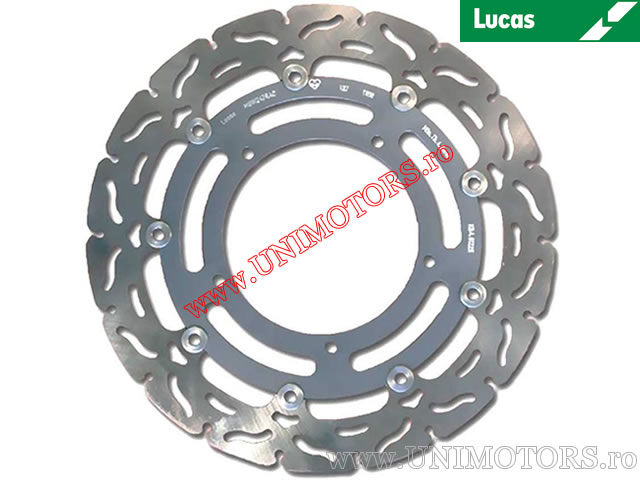

Floating racing brake disc front from Lucas TRW - MSW 247 RAC.

The floating racing brake discs Lucas TRW feature an outer disc - the contact area with the brake pads, made from a 35 HRC steel alloy and an innovative design with oversized perforations for optimal cooling. They are produced using state-of-the-art technologies, with minimal tolerances and high-precision finishes. The interior of the disc is made from a high-hardness aluminum alloy, CNC machined and anodized in titanium color, resulting in an extremely durable yet lightweight disc.

Lucas TRW is a global leader in the production of parts and accessories for vehicles and motorcycles. TRW Moto is the specialized division of Lucas for braking systems, clutches, and accessories for motorcycles, scooters, and ATVs.

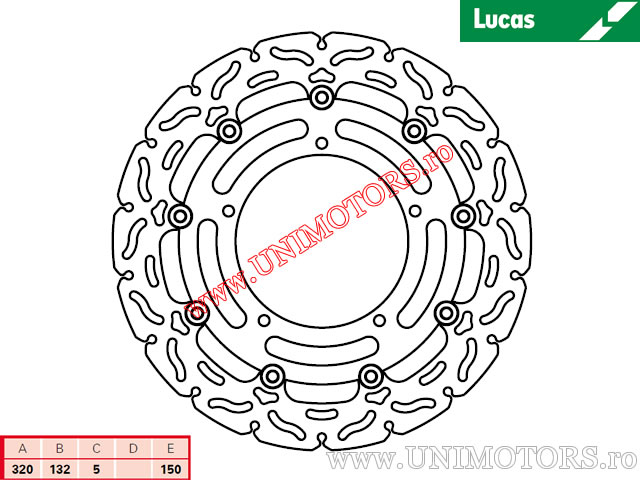

Technical specifications:
- type: floating disc - contoured
- material: steel / aluminum
- outer diameter (mm): 320
- inner diameter (mm): 132
- thickness (mm): 5
- weight (kg): 1.542
- TÜV approved: yes

Among the most important applications are: Yamaha FZ1 - N 1000 (2006-2015) / FZ1 - NA 1000 (2008-2015) / FZ1 - S Fazer 1000 (2006-2015) / FZ1 - SA Fazer 1000 (2007-2015) / YZF - R1 1000 (2004-2006) / XVS - Custom 1300 (2014-2016) / XV-Y - V-max ABS 1700 (2009-2016).

Complete application list can be found below.
