Front Sprocket JTF280.13 (520 pitch) - Honda NX 250 ('88-'96) - JM

Front sprocket steel -JTF280.13 pitch 520 and 13 teeth for Honda NX 250 (1988-1996).

Specifications:
- Advantages of the JT Racing sprocket;
- Reduced weight through relief holes;
- Made from high-quality Chromoly SCM420 steel for maximum durability;
- Perfect for the sport rider;

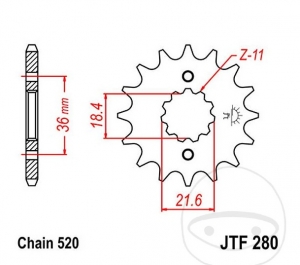

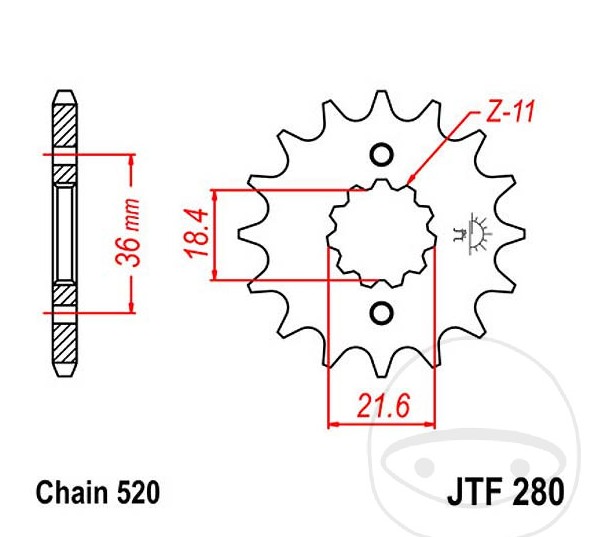

Technical data:
- Chain pitch: 520;
- Mounting: fine spline;
- Minimum inner diameter: 18.4 mm;
- Maximum inner diameter: 21.6 mm;
- Inner teeth (number of teeth): 11;
- Number of mounting holes: 2;
- Distance between mounting holes: 36 mm;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 13.

The complete application list can be found below.
