Steel front sprocket -JTF330.15 pitch 630 and 15 teeth for Honda CB 750 K (1978-1979).

Specifications:
- JT Sprockets is currently the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the entire range of sprockets and gears for both aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the smallest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

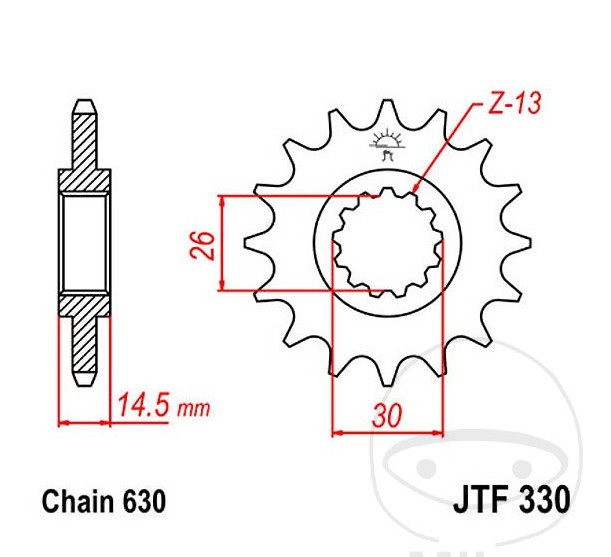

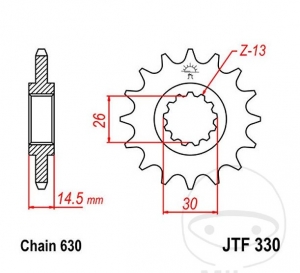

Technical data:
- Chain pitch: 630;
- Mounting: fine spline;
- Minimum inner diameter: 21 mm;
- Maximum inner diameter: 25 mm;
- Inner teeth (distance): 6 mm;
- Number of mounting holes: none;
- Width: 10.7 mm;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 15.

The complete application list can be found below.
