Front Sprocket JTF519.15 (pitch 530) - JM

Front sprocket steel -JTF519.15 pitch 530 and 15 teeth.

Specifications:
- JT Sprockets' production is today the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the full range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the tightest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

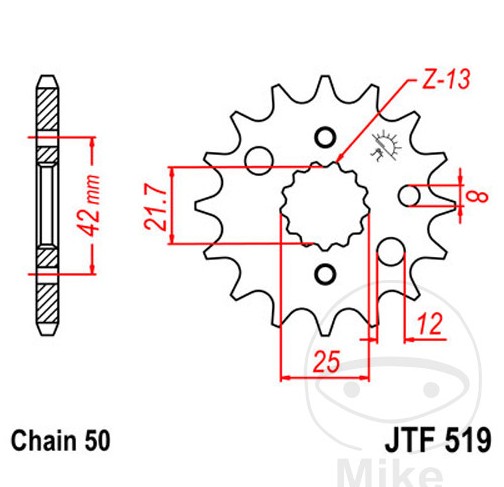

Technical data:
- Chain pitch: 530;
- mounting: fine groove;
- minimum inner diameter: 21.7 mm;
- maximum inner diameter: 25 mm;
- inner teeth (number of teeth): 13;
- number of mounting holes: 2-3 ;
- distance between mounting holes: 42 mm;
- execution: standard;
- manufacturer: JT;
- number of teeth: 15.

The complete application list can be found below.
