Front brake disc MSW259 floating - Lucas TRW

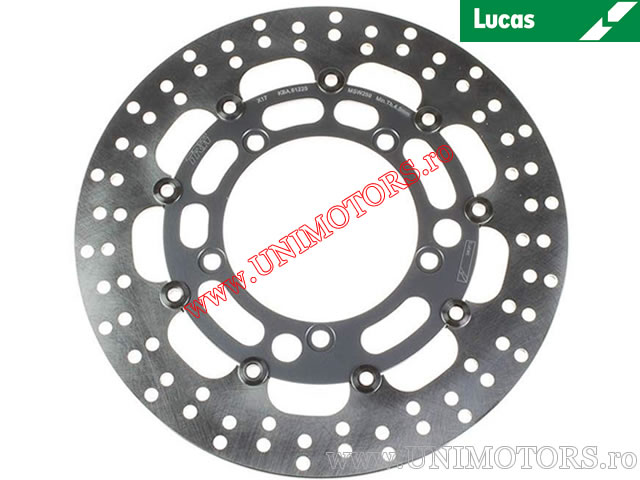

Floating front brake disc from Lucas TRW - MSW 259.

The floating brake discs Lucas TRW feature an outer disc - the contact area with the brake pads, made from a 35 HRC steel alloy and a round design with perforations for optimal cooling. They are produced using state-of-the-art technologies, with minimal tolerances and high-precision finishes. The interior is made from a high-hardness aluminum alloy, CNC machined and anodized in titanium color, resulting in an extremely durable yet lightweight disc.

Lucas TRW is a global leader in the production of parts and accessories for vehicles and motorcycles. TRW Moto is the specialized division of Lucas for braking systems, clutches, and accessories for motorcycles, scooters, and ATVs.

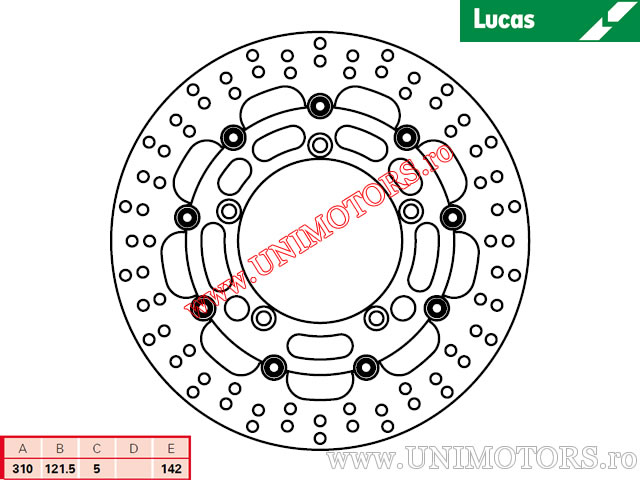

Technical specifications:
- type: floating disc
- material: steel / aluminum
- outer diameter (mm): 310
- inner diameter (mm): 121.5
- thickness (mm): 5
- weight (kg): 0.911
- TÜV approved: yes

Among the most important applications are: Suzuki GSR 600 (2006-2010) / GSR - A 600 (2007-2010) / DL - A V-Strom 650 (2012-2016) / DL - A V-Strom 650 (2017-) / DL - A V-Strom 650 (2017-) / DL - A V-Strom 650 (2007-2011) / DL - V-Strom 650 (2008-2011) / DL - XT A V-Strom 650 (2015-2016) / DL - XTA V-Strom 650 (2017-) / DL - XTA V-Strom 650 (2017-) / GSF - A Bandit 650 (2007-2008) / GSF - A Bandit 650 (2009-2012) / GSF - Bandit 650 (2007-2008) / GSF - Bandit 650 (2009-2012) / GSF - S Bandit 650 (2007-2008) / GSF - S Bandit 650 (2009-2012) / GSF - SA Bandit 650 (2007-2008) / GSF - SA Bandit 650 (2009-2016) / GSX - F 650 (2008-2013) / GSX - FA 650 (2009-2016) / GSR 750 (2011-2015) / GSR - A 750 (2012-2016) / GSX-S - A, AZ 750 (2017-) / DL - A V-Strom 1000 (2014-2016) / DL - A V-Strom 1000 (2017-) / DL - XTA V-Strom 1000 (2017-) / GSF - A Bandit 1200 (2006) / GSF - Bandit 1200 (2006) / GSF - S Bandit 1200 (2006) / GSF - SA Bandit 1200 (2006) / GSF - SA Bandit 1250 (2007-2017) / GSX - FA 1250 (2010-2017) / GSX - BK B-King 1300 (2007-2010) / GSX - BKA B-King ABS 1300 (2007-2010) / GSX - R Hayabusa 1300 (2008-2012) / GSX - RA Hayabusa 1300 (2013-2017) / VZR - Intruder M1800R2 1800 (2008-2009) / VZR - Intruder M1800RZB 1800 (2014-2017).

Complete application list can be found below.
