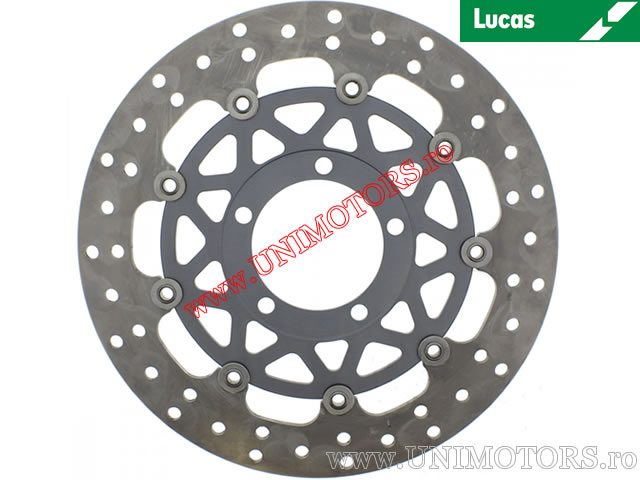

Floating front brake disc from Lucas TRW - MSW 286.
The floating brake discs Lucas TRW feature an outer disc - the contact area with the brake pads, made from a 35 HRC steel alloy and a round design with perforations for optimal cooling. They are produced using state-of-the-art technologies, with minimal tolerances and high-precision finishes. The interior is made from a high-hardness aluminum alloy, CNC machined and anodized in titanium color, resulting in an extremely durable yet lightweight disc.
Lucas TRW is a global leader in the production of parts and accessories for vehicles and motorcycles. TRW Moto is the specialized division of Lucas for braking systems, clutches, and accessories for motorcycles, scooters, and ATVs.

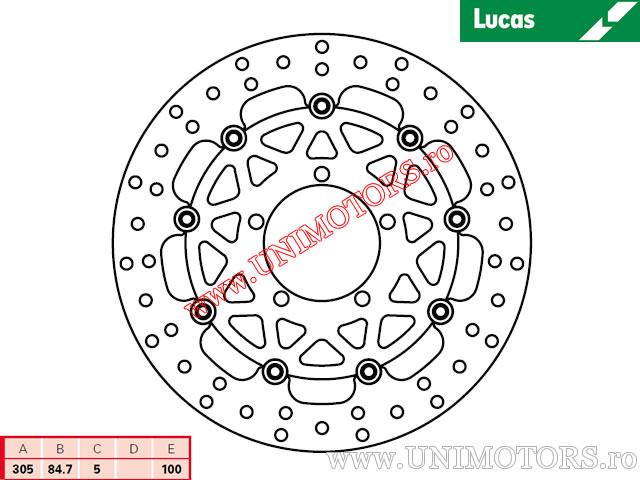

Technical specifications:
- type: floating disc
- material: steel / aluminum
- outer diameter (mm): 305
- inner diameter (mm): 84.7
- thickness (mm): 5
- weight (kg): 1.378
- TÜV approved: yes
Among the most important applications are: Triumph Tiger 800 (2011-2014) / Tiger ABS 800 (2011-2014) / Tiger XC 800 (2011-2014) / Tiger XC ABS 800 (2011-2014) / Tiger XC ABS 800 (2015-2016) / Tiger XC ABS 800 (2017-) / Tiger XCA ABS 800 (2015-2016) / Tiger XCA ABS 800 (2017-) / Tiger XCX ABS 800 (2015-2016) / Tiger XCX ABS 800 (2017-) / Tiger XR ABS 800 (2015-2016) / Tiger XR ABS 800 (2017-) / Tiger XRT ABS 800 (2015-2016) / Tiger XRT ABS 800 (2017-) / Tiger XRX ABS 800 (2015-2016) / Tiger XRX ABS 800 (2017-) / Tiger Explorer ABS 1200 (2012-2015) / Tiger Explorer XC ABS 1200 (2012-2015) / Tiger Explorer XC ABS 1200 (2015-) / Tiger Explorer XCA ABS 1200 (2015-) / Tiger Explorer XCX ABS 1200 (2015-) / Tiger Explorer XR ABS 1200 (2015-) / Tiger Explorer XRT ABS 1200 (2015-) / Tiger Explorer XRX ABS 1200 (2015-) / Tiger Explorer XRX LRH ABS 1200 (2018-).
Complete application list can be found below.
