Front pinion Kawasaki KL 250 / KLX 250 / KX 250 / KX 500 / Yamaha RD 350 / XT 250 / YFM 125 / YFM 350 / YZ 250 - JTF 569 - JT

Please select the number of teeth from the box above.

The front sprockets JT Sprockets are made from steel and are characterized by high wear resistance and machining using the most modern CNC equipment. Each sprocket goes through 25 stages of manufacturing and quality inspection.

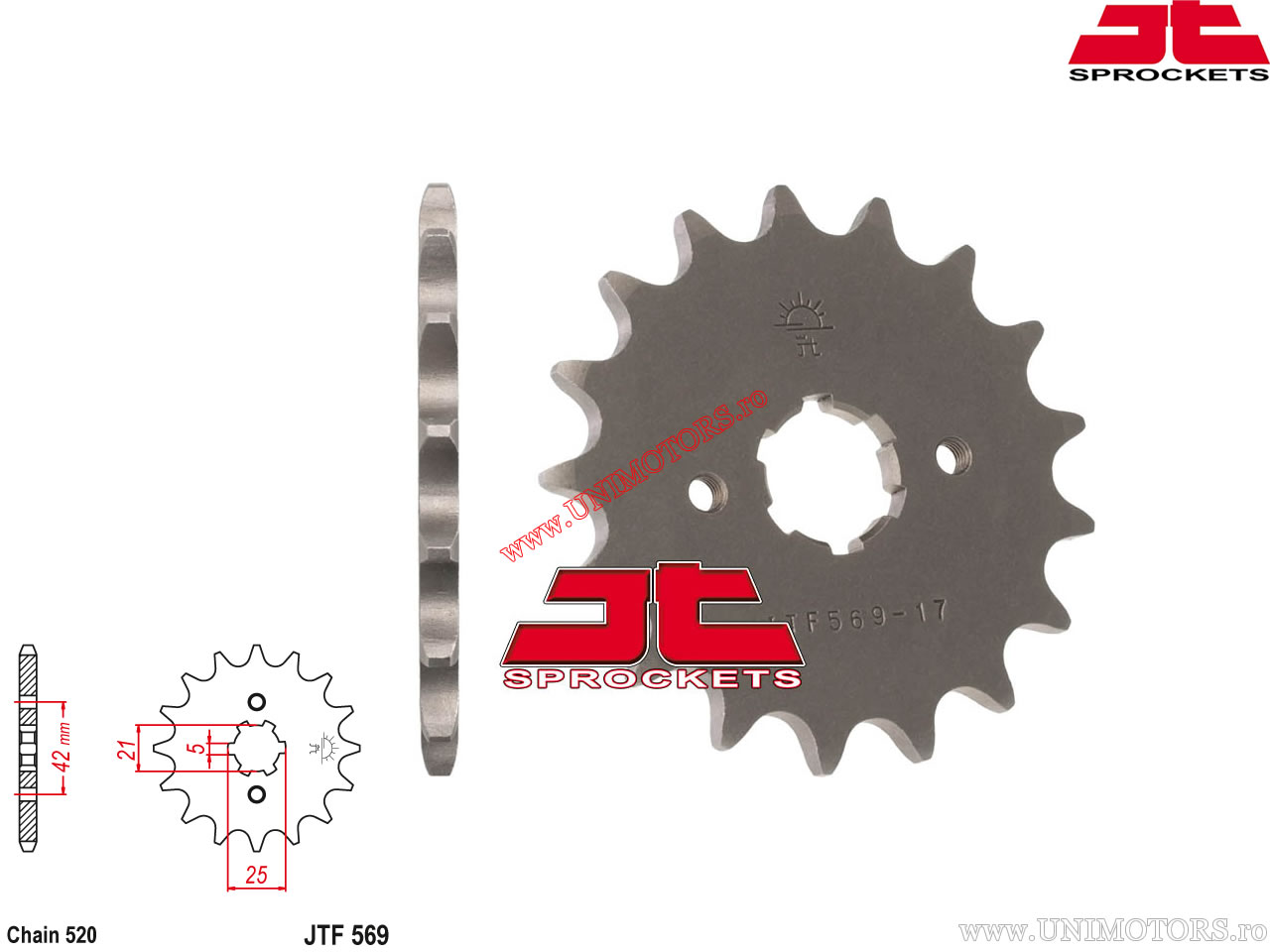

Technical specifications:
Chain pitch: 520
Mounting type: Large spline
Small inner diameter: 21 mm
Large inner diameter: 25 mm
Number of teeth on inner spline: 6
Tooth spacing on inner spline: 5 mm
Number of mounting holes: 2
Distance between mounting holes: 42 mm
Execution: standard
Manufacturer: JT

Applications:
Among the most important applications are: Kawasaki KL 250 (1978-1983) / KLX 250 R (1994-1997) / KLX 250 E (1993-1995) / KLX 300 R (1997-2002) / KX 250 (1987-1998) / KX 500 (1983-2003) / Z 200 A (1977-1980) / Z 250 C (1980-1982) / Z 250 G Ltd (1981-1984) / DT 250 MX (1977-1982) / DT 400 MX (1977-1979) / RD 350 YPVS (1983-1989) / SR 250 (1983-1993) / XT 250 (1980-1990) / XV 250 Virago (1989-2000) / YFA1 125 Breeze (2000-2004) / YFM 125 Grizzly (2004-2014) / YFM 350 R Raptor (2003-2013) / YFM 350 Warrior (2000-2004) / YFZ 350 Banshee (2000-2012) / YZ 250 2T (1980-1997) / YZ 465 (1980-1981) / YZ 490 (1982-1988).

Complete application list can be found below.
