The front sprockets JT Sprockets are made from steel and are characterized by high wear resistance and machining using the most modern CNC equipment. Each sprocket goes through 25 stages of manufacturing and quality inspection.

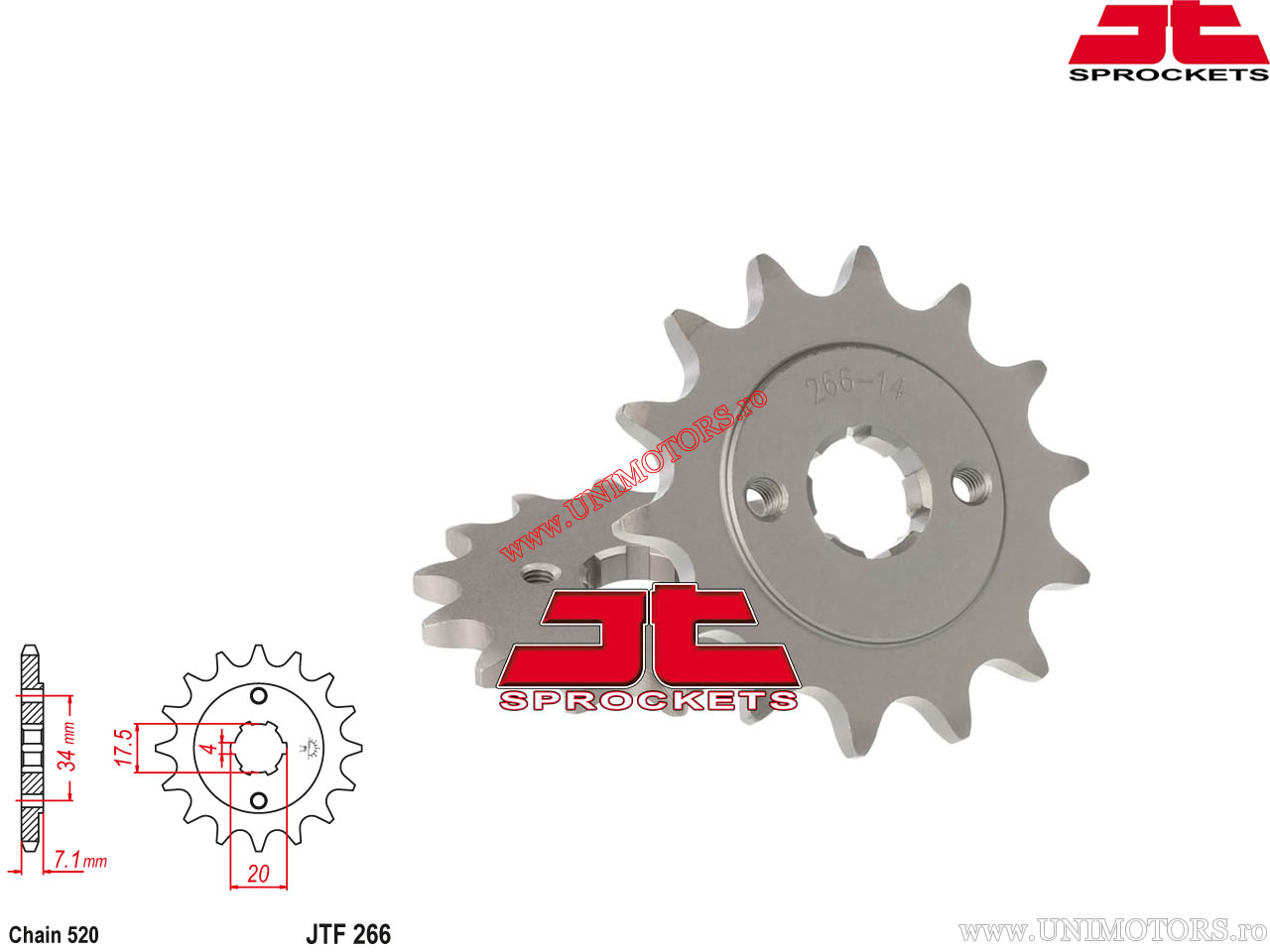

Technical specifications:
Chain pitch: 520
Mounting type: Large spline
Small inner diameter: 17.5 mm
Large inner diameter: 20 mm
Number of teeth on inner spline: 6
Tooth spacing on inner spline: 4 mm
Number of mounting holes: 2
Distance between mounting holes: 34 mm
Width: 7.1 mm
Execution: standard
Manufacturer: JT
Applications:
Among the most important applications are: Honda CR 125 R (1981-1985).
Complete application list can be found below.
