Front sprocket JTF1556.12 (pitch 428) - JM

Steel front sprocket -JTF1556.12 pitch 428 and 12 teeth.

Specifications:
- JT Sprockets is currently the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the entire range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets manufactures correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the tightest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

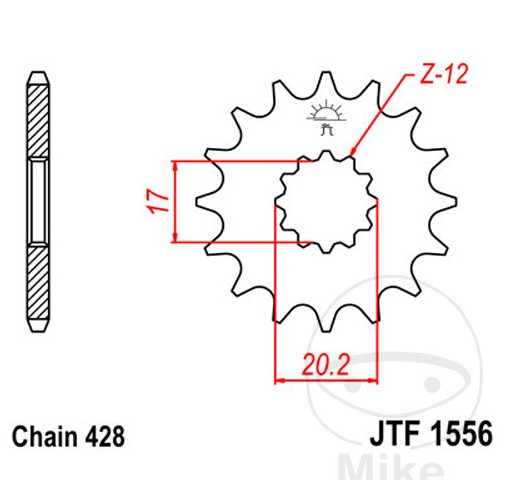

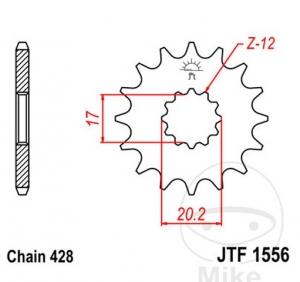

Technical data:
- Chain pitch: 428;
- Mounting: fine groove;
- Minimum inner diameter: 17 mm;
- Maximum inner diameter: 20.2 mm;
- Inner teeth (number of teeth): 12;
- Number of mounting holes: none;
- Width: 7.2 mm;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 12.

The complete application list can be found below.
