Front sprocket JTF268.14 (520 pitch) - Honda CR 125 R ('86) - JM

Front sprocket steel -JTF268.14 pitch 520 and 14 teeth for Honda CR 125 R (1986).

Specifications:
- JT Sprockets is currently the largest and most modern manufacturing unit for sprockets and gears worldwide;
- Equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the full range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages;
- subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the tightest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

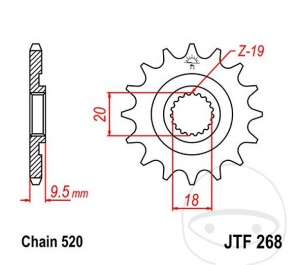

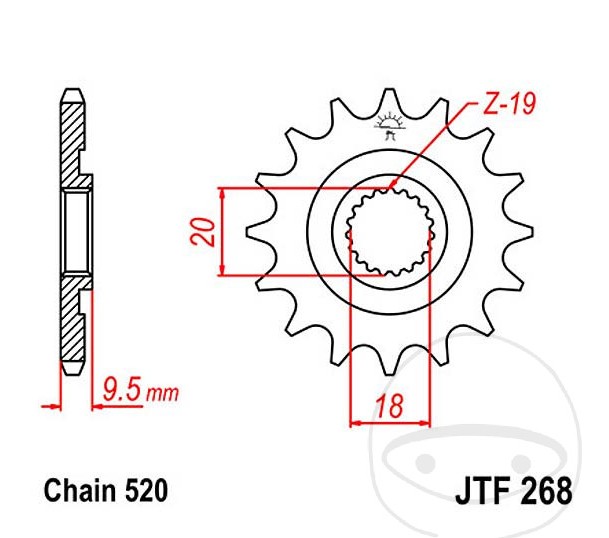

Technical data:
- Chain pitch: 520;
- Mounting: fine groove;
- Minimum inner diameter: 18 mm;
- Maximum inner diameter: 20 mm;
- Inner teeth (number of teeth): 19;
- Number of mounting holes: none;
- Width: 9.5 mm;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 14.

The complete application list can be found below.
