Front sprocket JTF290.15 (step 525) - Honda XBR 500 Gussrad ('85-'87) - JM

Front sprocket steel -JTF290.15 pitch 525 and 15 teeth for Honda XBR 500 Gussrad (1985-1987).

Specifications:
- JT Sprockets is currently the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the full range of sprockets and gears for both aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets manufactures correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the tightest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

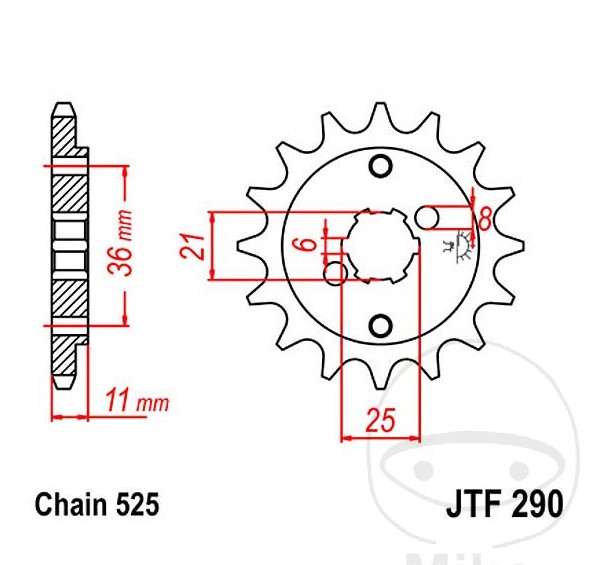

Technical data:
- Chain pitch: 525;
- Mounting: large spline;
- Minimum inner diameter: 21 mm;
- Maximum inner diameter: 25 mm;
- Inner teeth (number of teeth): 6;
- Inner tooth (distance): 6 mm;
- Number of mounting holes: 2;
- Distance between mounting holes: 36-8 mm;
- Width: 11 mm;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 15.

The complete application list can be found below.
