Front sprocket JTF505.14 (pitch 428) - JM

Front sprocket steel -JTF505.14 pitch 428 and 14 teeth.

Specifications:
- JT Sprockets is today the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the full range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the smallest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

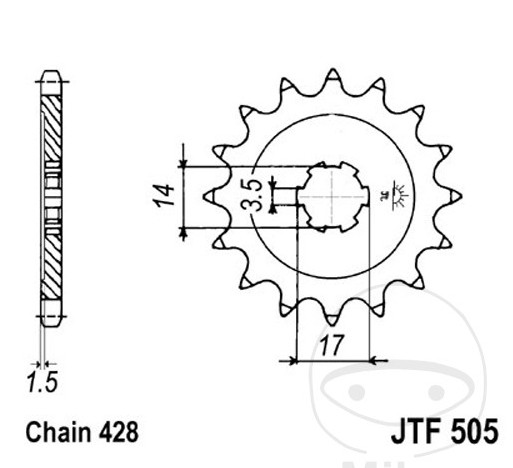

Technical data:
- Chain pitch: 428;
- mounting: large groove;
- minimum inner diameter: 14 mm;
- maximum inner diameter: 17 mm;
- inner teeth (number of teeth): 6;
- inner tooth (distance): 3.5 mm;
- number of mounting holes: none;
- execution: standard;
- manufacturer: JT;
- number of teeth: 14.

The complete application list can be found below.
