Intake gallery (32x44x33mm / cylinder 2°/3°) - Kawasaki 900-1000 - Malossi

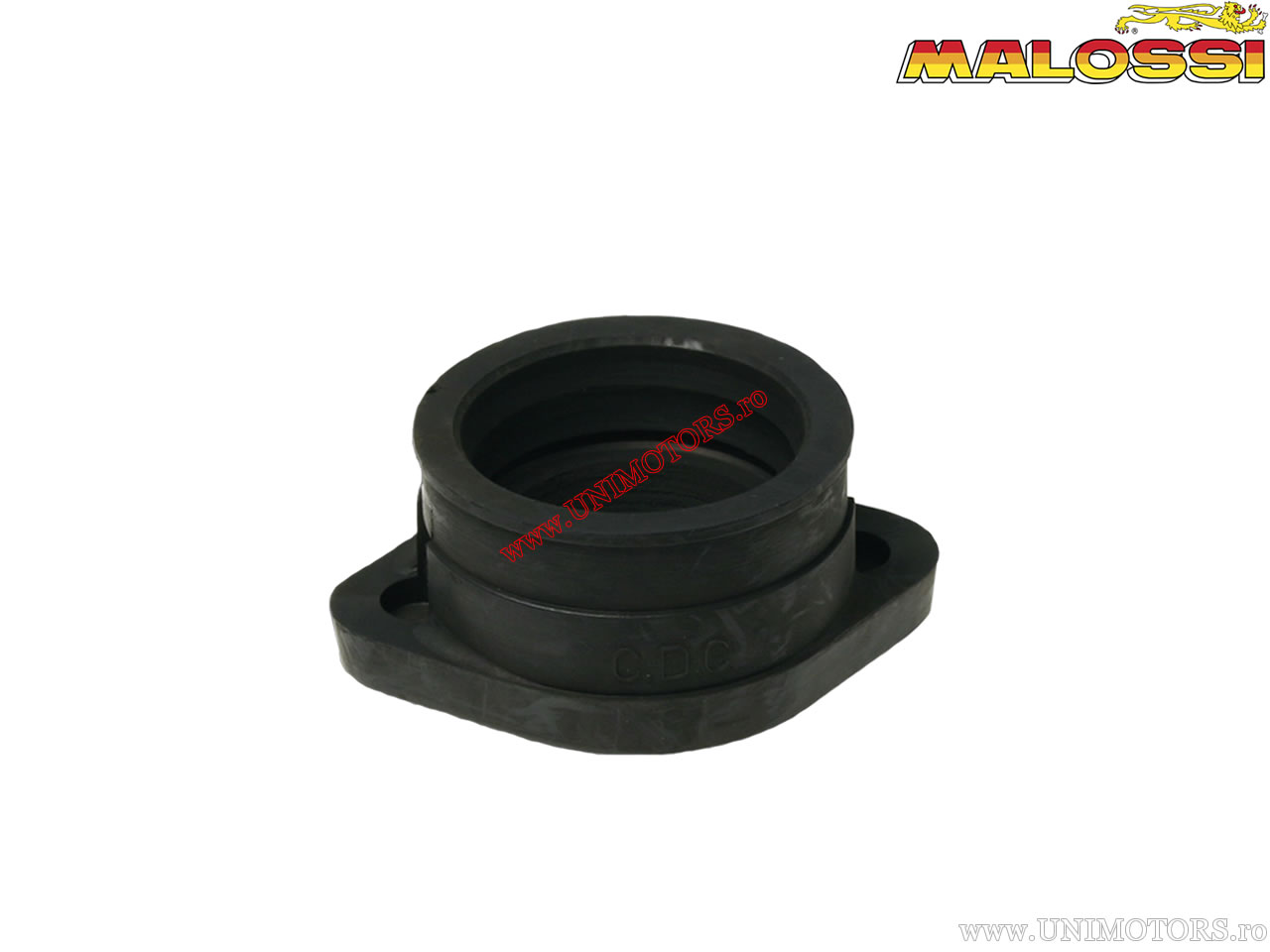

Intake manifold (32x44x33mm) Malossi. Among the most important applications are: Kawasaki 900-1000.

- Malossi has created a new line of rubber intake manifolds for the new generation of scooters;
- The rubber manifold has a composite structure;
- The construction starts with an aluminum insert that is wrapped in a special plastic material;
- The material is resistant to oils and fuels;
- The intake manifold directs the air-fuel mixture to the engine through a reed valve;
- Engine efficiency is calculated as the product of volumetric efficiency, thermodynamic efficiency, and mechanical efficiency;
- Wheelbase: 58 mm;
- Hole diameter: 6.25 mm;
- Manifold diameter: 32 mm;
- Inlet diameter: 44 mm;
- Grooves: 2;
- Total length: 33 mm;
- Carburetor applications: PHF 32B / PHBE 32B;
- Material: NBR.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
