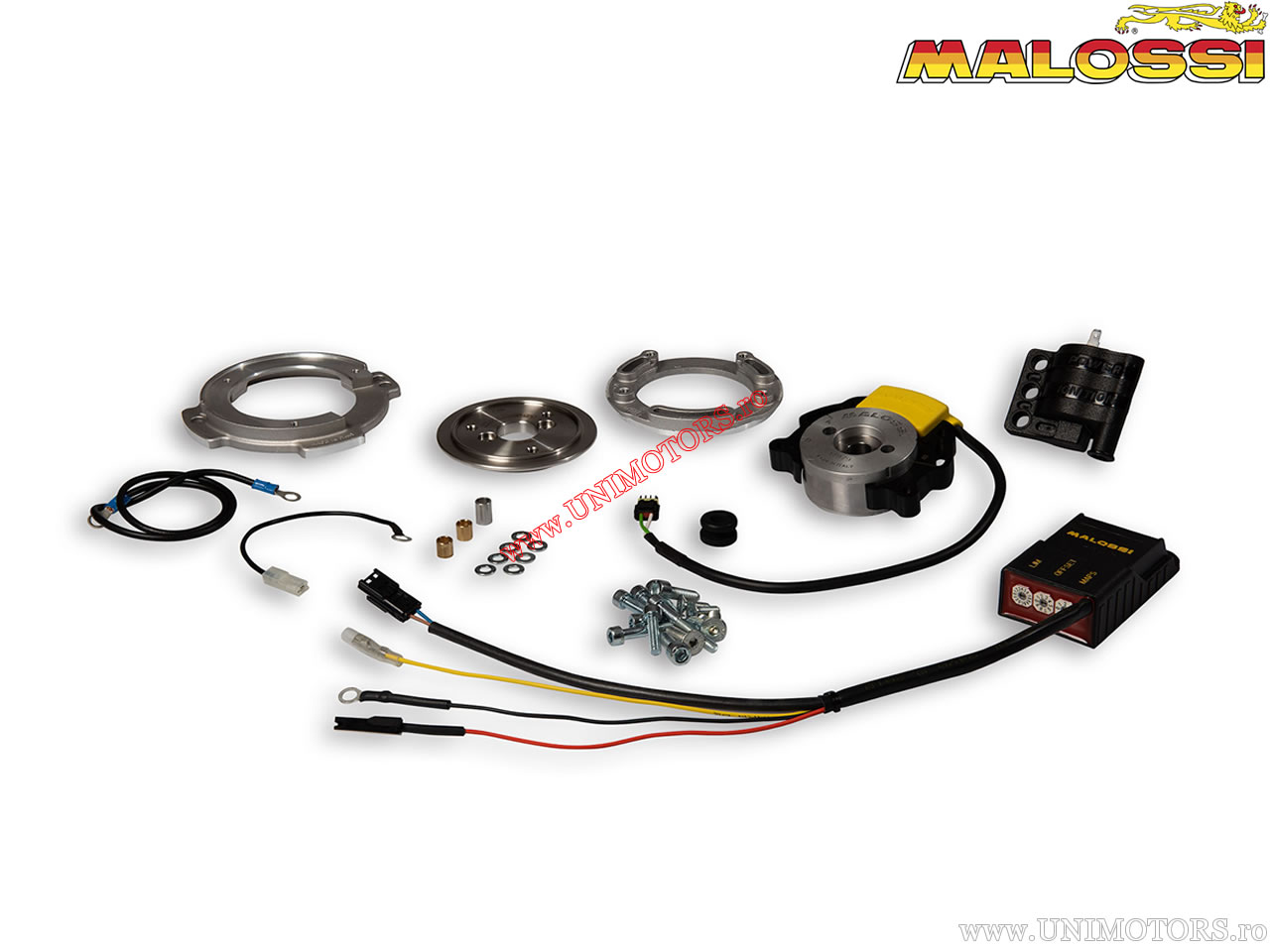

Internal ignition rotor MHR Team II (5518275) - DRR DRX 90 2T LC (2016 ->) - Malossi

Internal ignition rotor MHR Team II Malossi. Among the most important applications are: DRR DRX 90 2T LC (2016 ->).

- Control unit with variable timing advance synchronization and 3 trimmers:
- MAPS trimmer: selects the ignition timing map;
- OFFSET trimmer: shifts the selected map by ± 2°;
- LIM trimmer: selects the RPM limit (16 possible settings);
- Eight preset maps:
- 1 variable ignition advance map for 4-stroke engines;
- 6 variable ignition advance maps for 2-stroke engines;
- 1 fixed ignition advance map;
- System based on an 8-bit STM8 microprocessor with a processing speed of 20 MIPS;
- Reduced processing time, improved precision and stability in ignition advance;
- Hardware construction with enhanced immunity to interference;
- Temperature class 105°C cable;
- Compensation for flywheel mounting error of ± 2° with increments of 0.5° via an external trimmer;
- Eight selectable ignition advance tables via an external trimmer;
- The ignition advance tables for vector ignition consist of 24 breakpoints with linear interpolation;

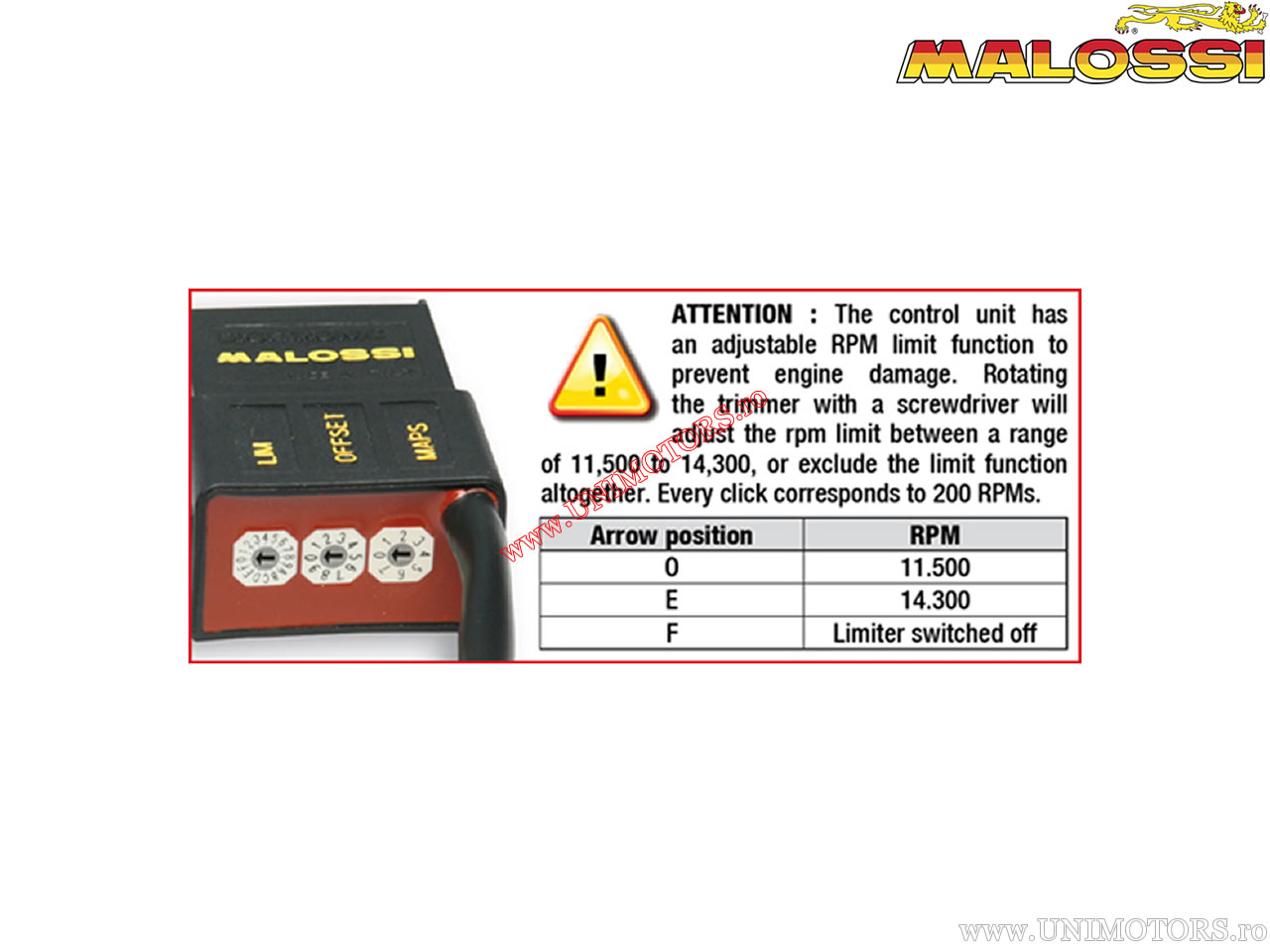

- Adjustable RPM limit via an external trimmer with 16 settings;
- 15 settings to adjust the RPM limit between 11,500 RPM and 14,300 RPM in 200 RPM increments;
- One setting to disable the RPM limiter;
- High voltage coil;
- Maximum discharge voltage > 40 KV for engine speeds > 3000 RPM;
- Maximum open circuit voltage spike > 50KV;
- Rise time 10bar > 1750V/uS;

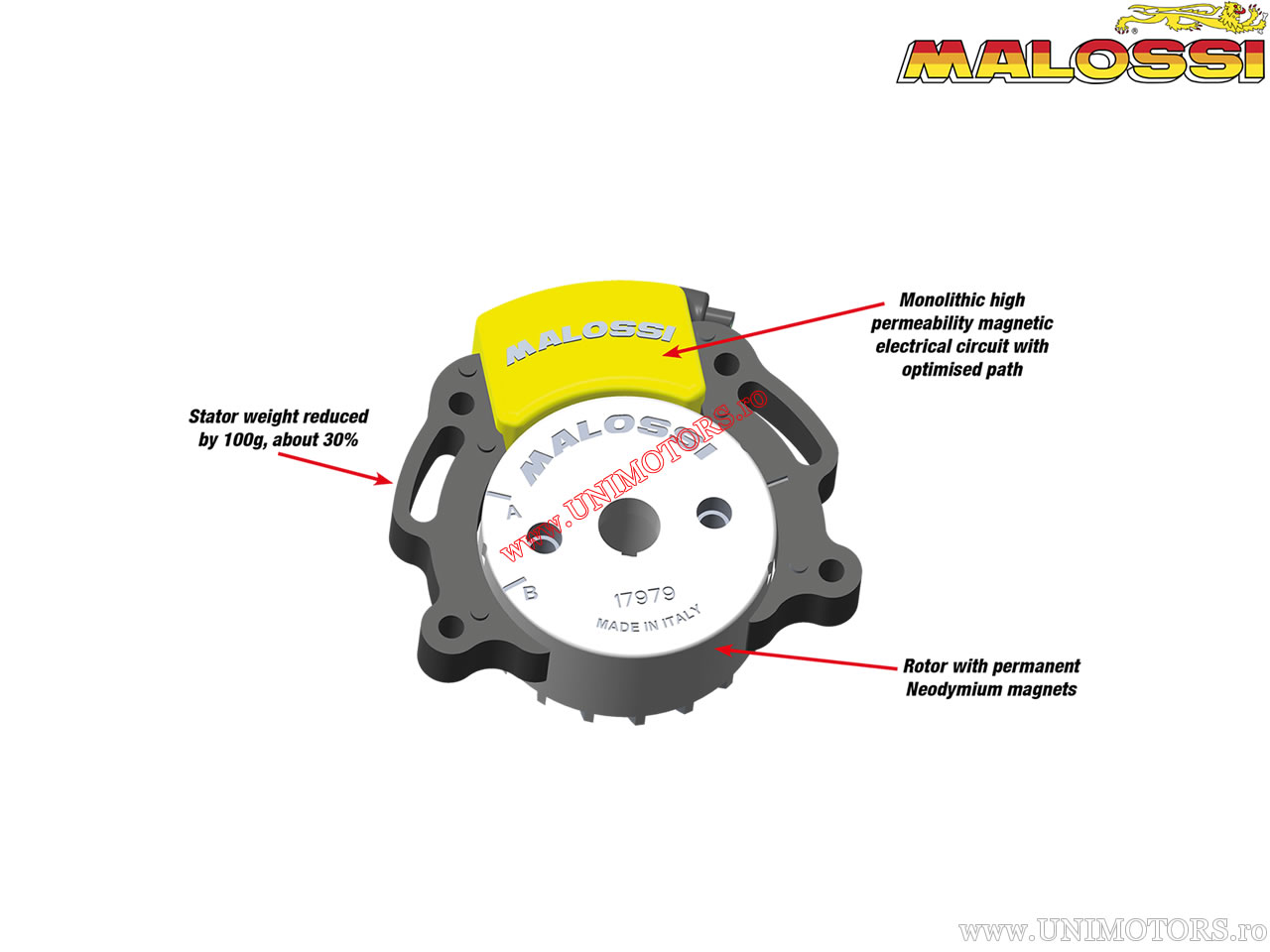

- Rotor-stator unit;
- Stator weight reduced by approximately 30% - total 100g;
- Monolithic magnetic circuit of high permeability;
- Optimized magnetic trajectory;
- Reinforcement of the wound part, with high-grade insulation wire and increased wire diameter;
- Electrical performance improved by +20%;
- Minimum starting speed reduced from 450 RPM to 370 RPM;
- Miniaturized waterproof connector with IP67 protection, with retention lock;
- Automotive grade wiring;
- Rotor Ø 58 with Neodymium permanent magnets;
- MIPS (Millions of Instructions Per Second).

Warning: For this type of ignition, the lighting set is disconnected.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
