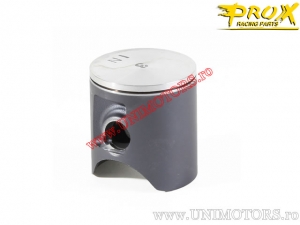

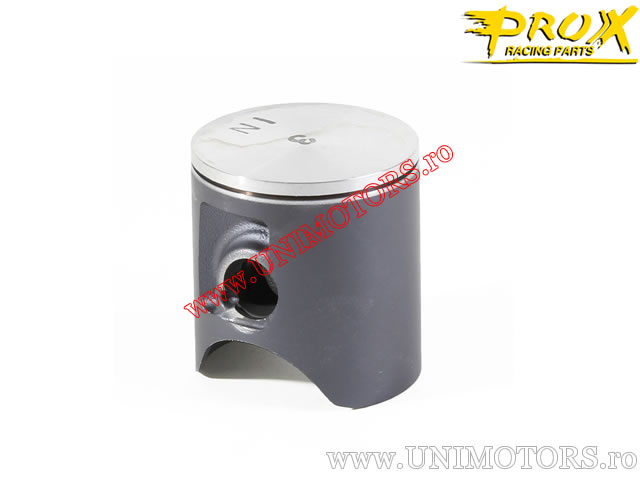

Kit piston - Honda CR 125 R ('92-'03) - 125 2T - ProX

Please select the piston size from the box above.

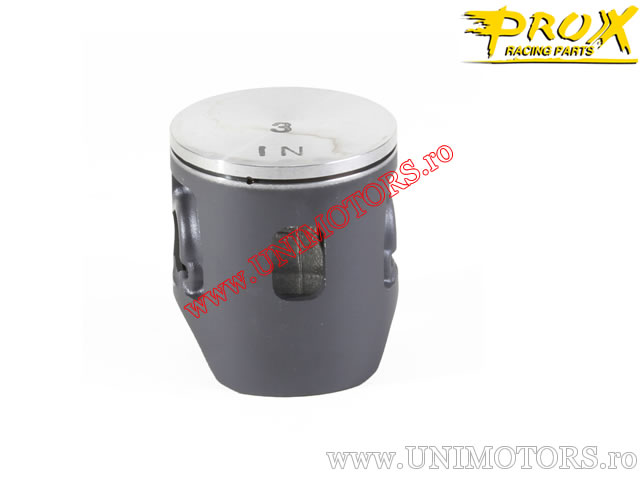

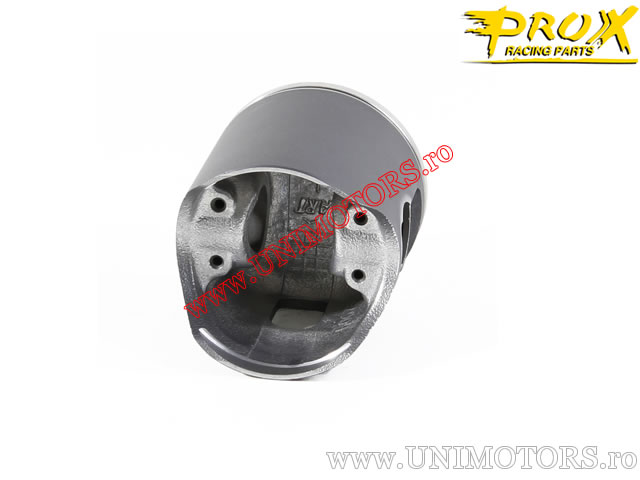

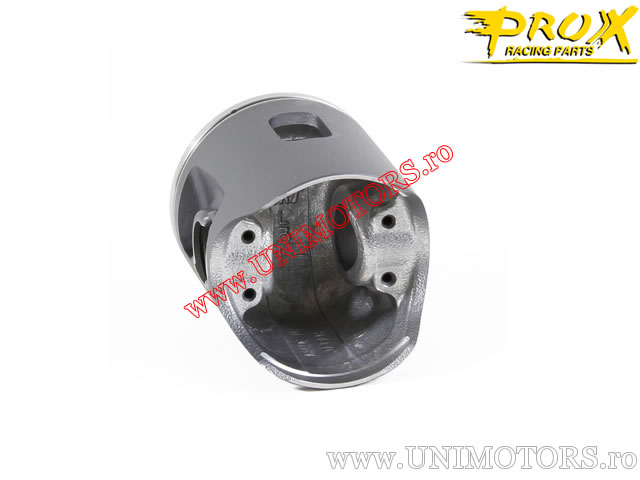

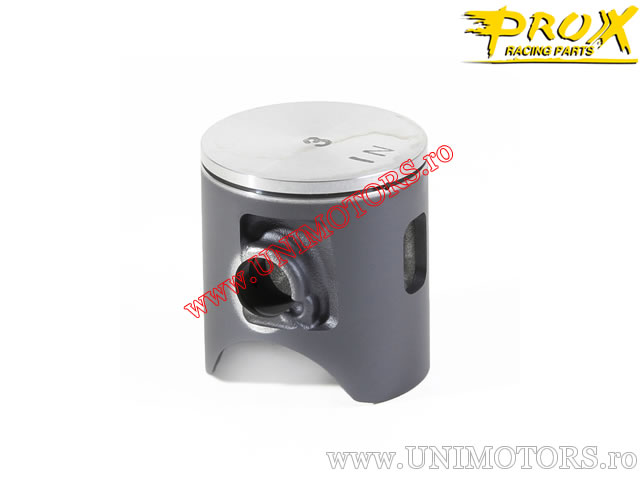

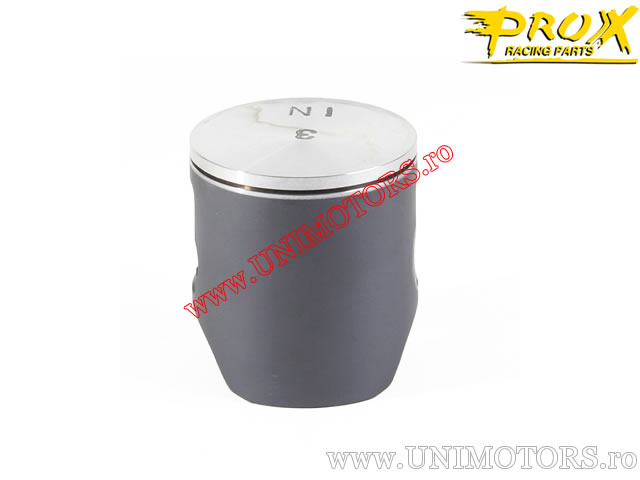

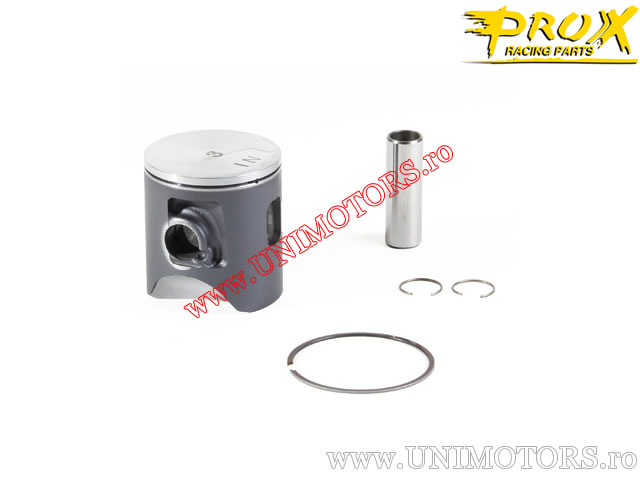

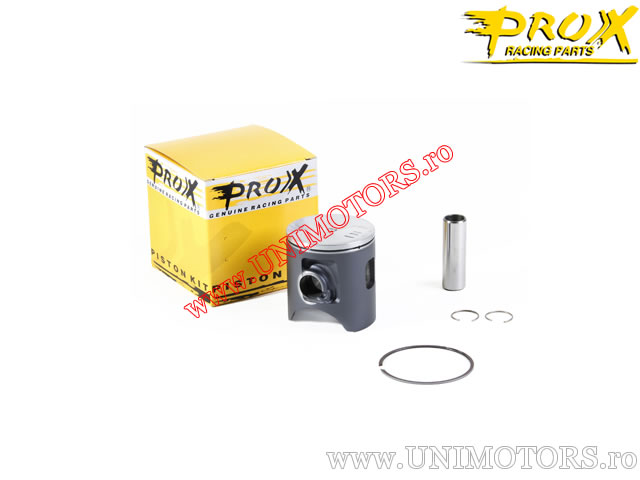

ProX piston kit for Honda CR 125 R manufactured between 1992-2003 - 125cc 2T. The complete application list can be found below.

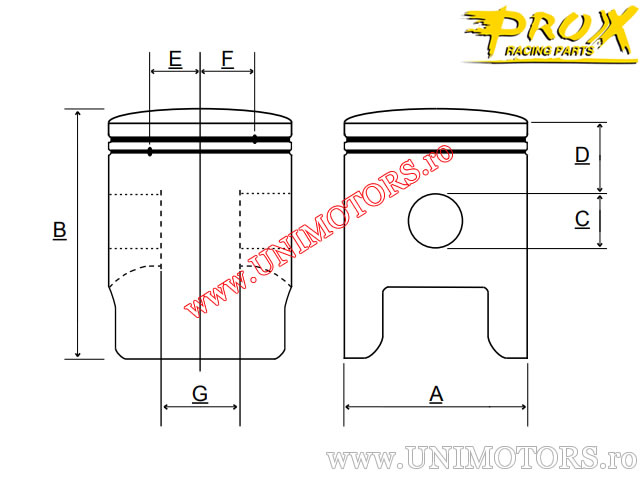

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 58.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 20.50 mm
- ring pin position measured from center (E): 11.50 mm
- ring pin position measured from center (F): -
- internal distance of piston pin (G): 17.50 mm
- piston crown shape: flat
- manufacturing technology: cast piston with intake window and coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (53.94 mm)
- B (53.95 mm)
- C (53.96 mm)
- D (53.97 mm)
