Kit piston - Honda CR 500 R ('82-'01) - 500 2T - ProX

Please select the piston size from the box above.

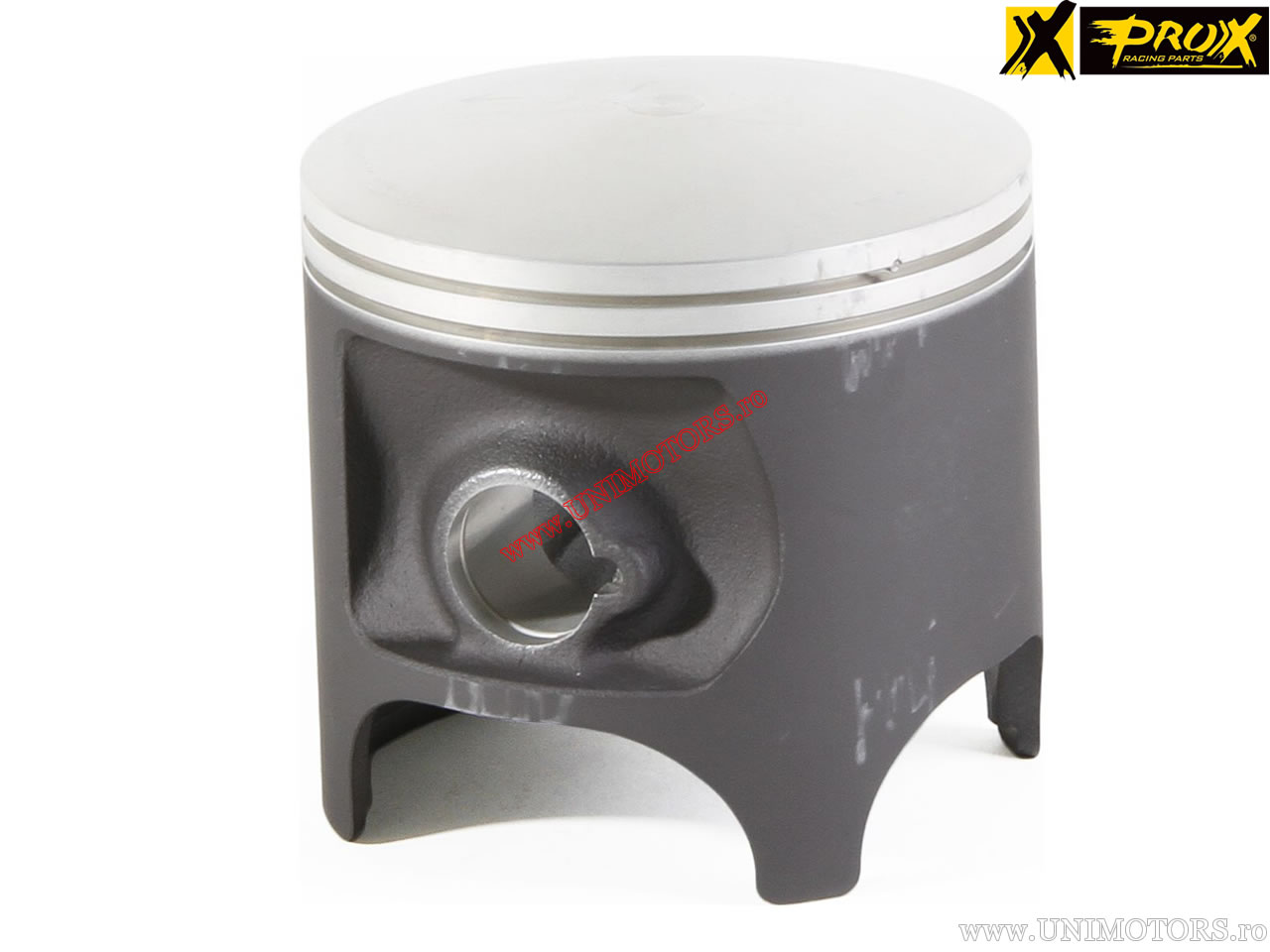

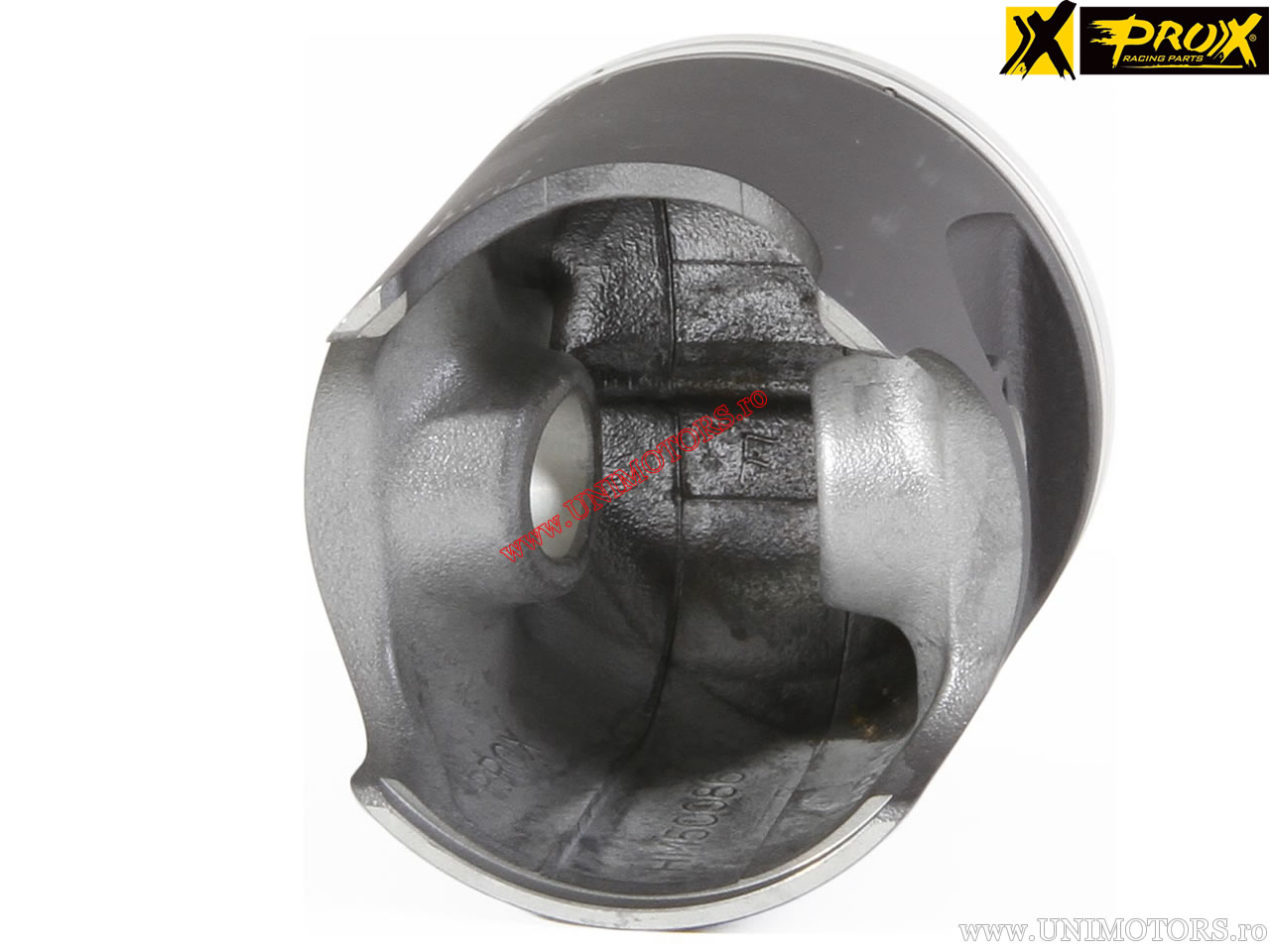

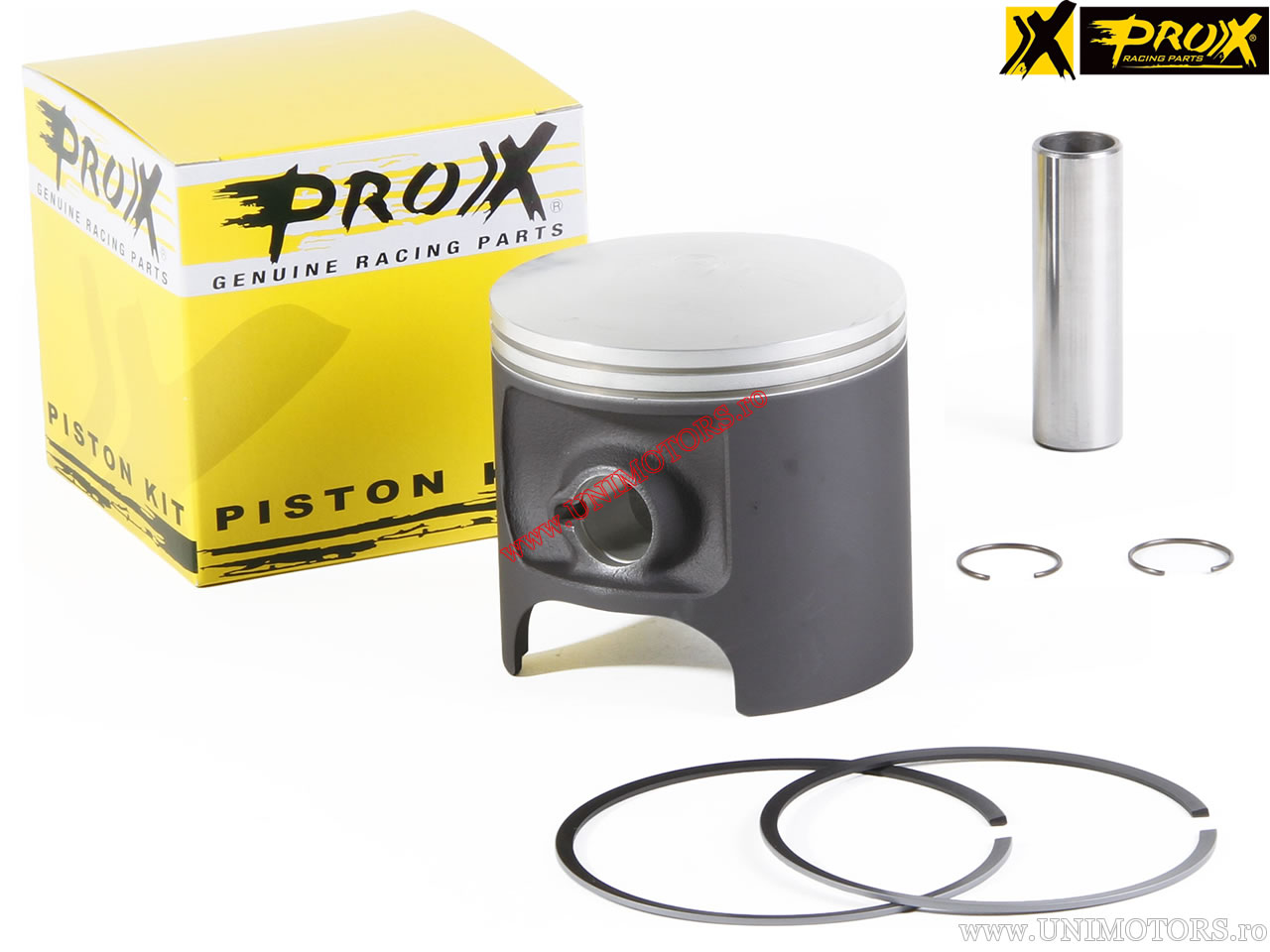

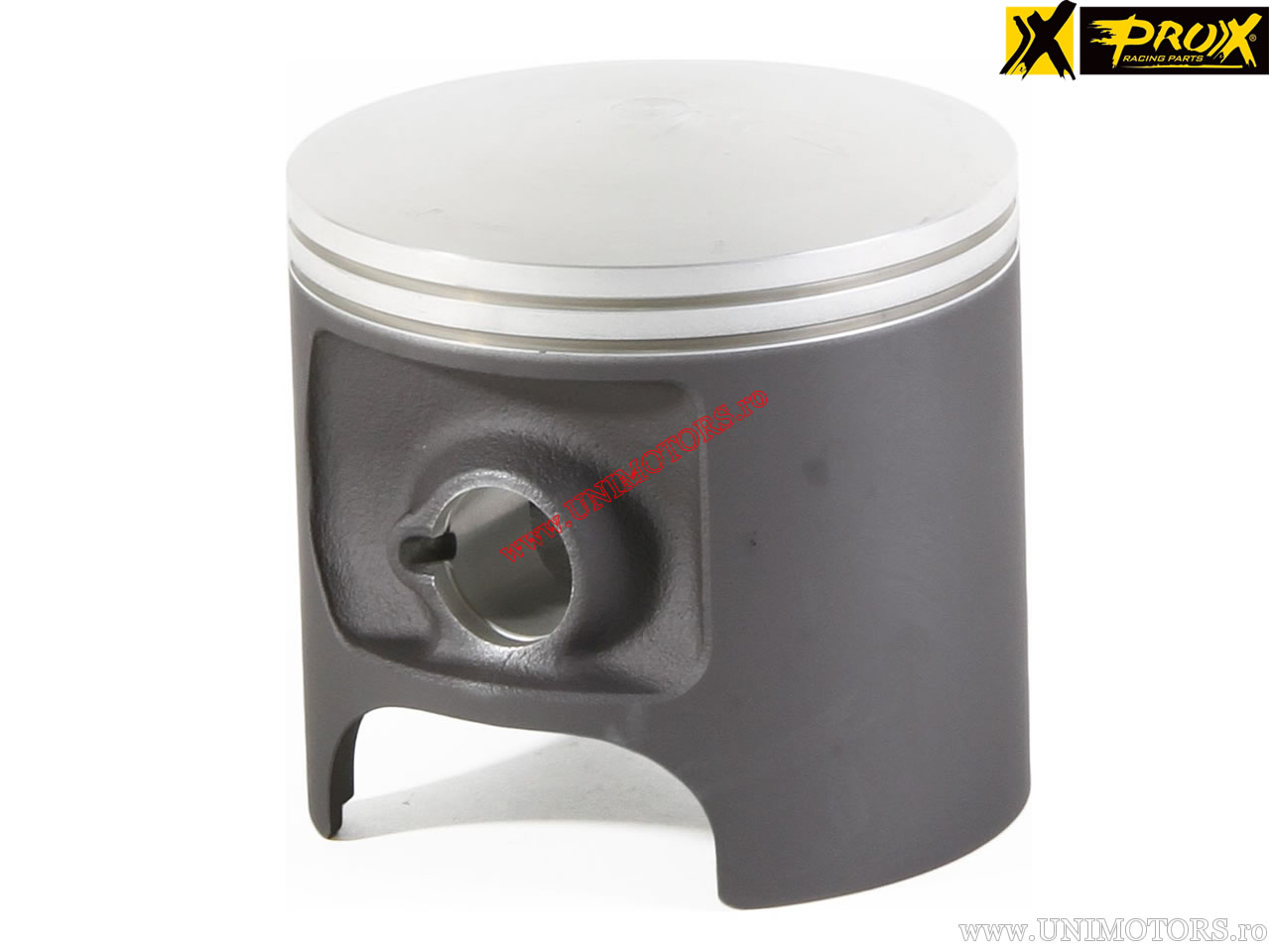

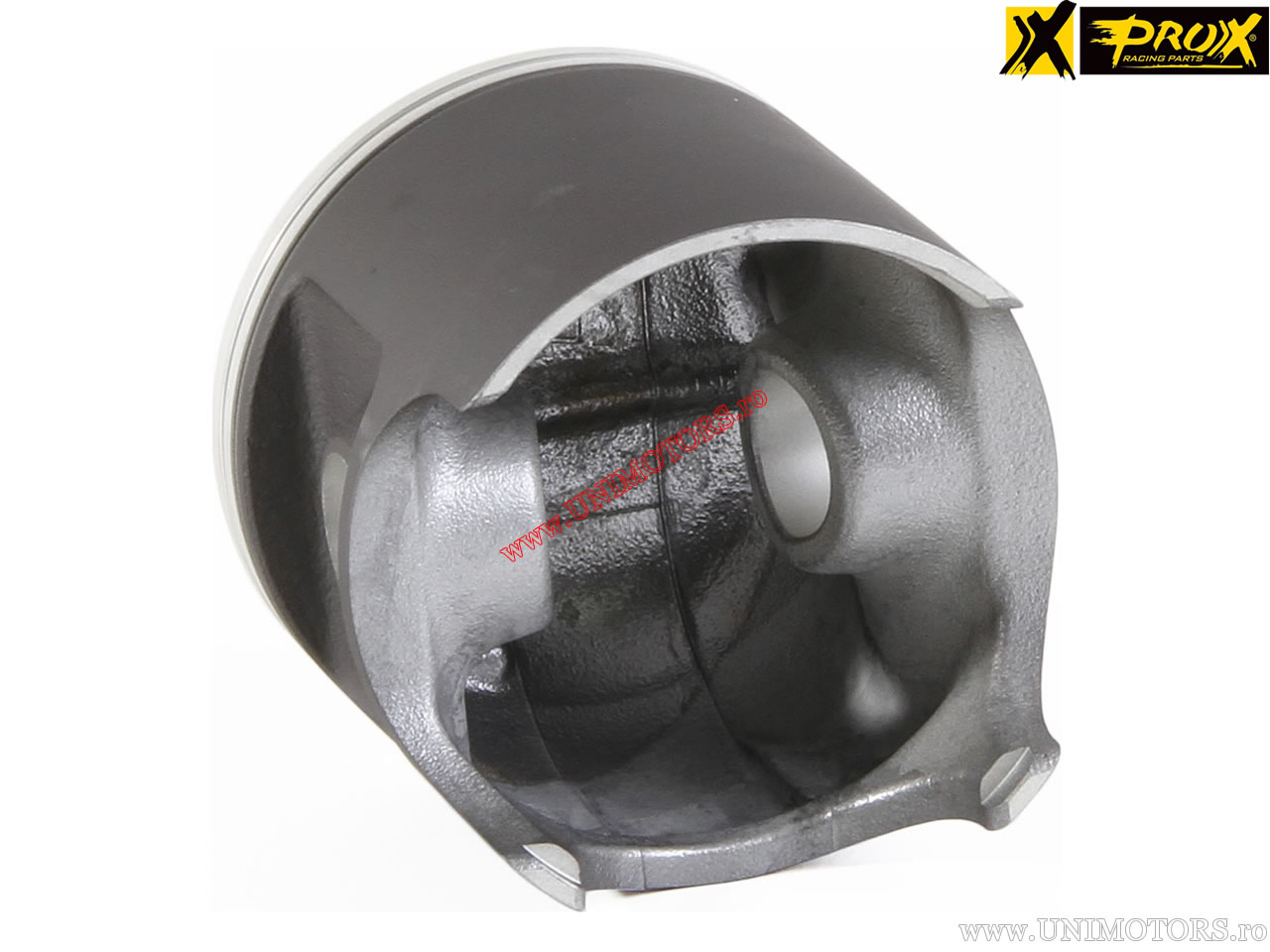

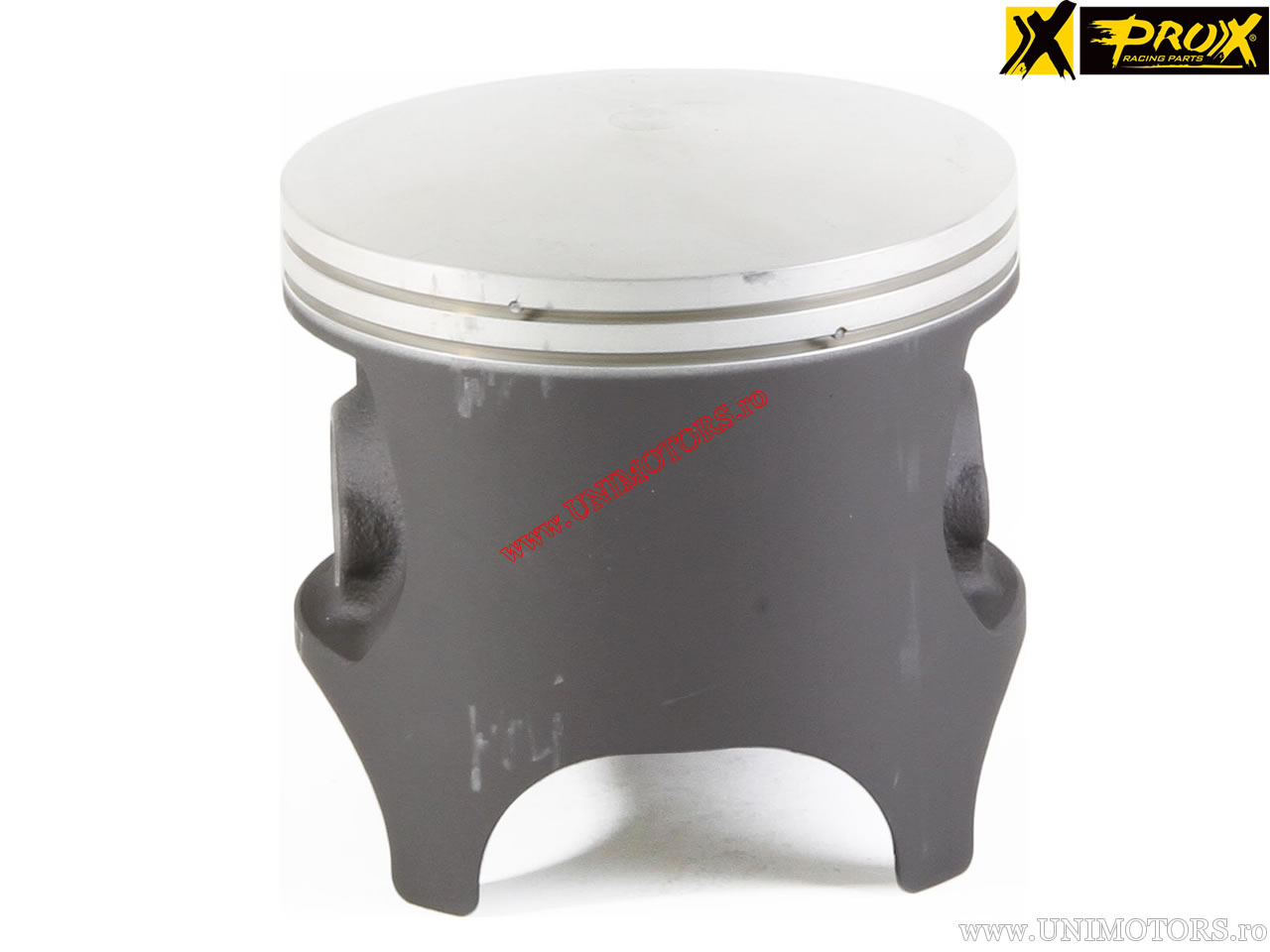

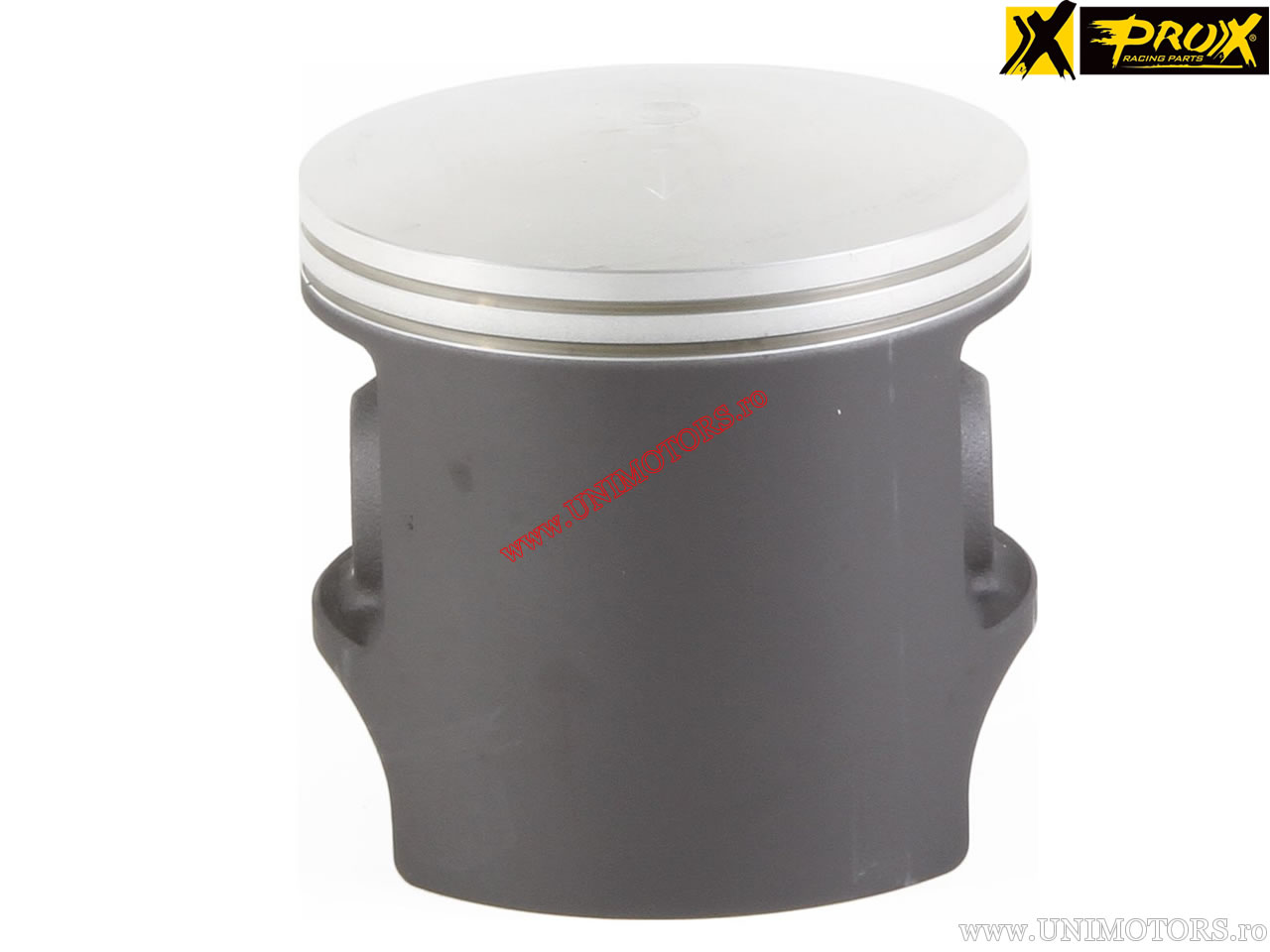

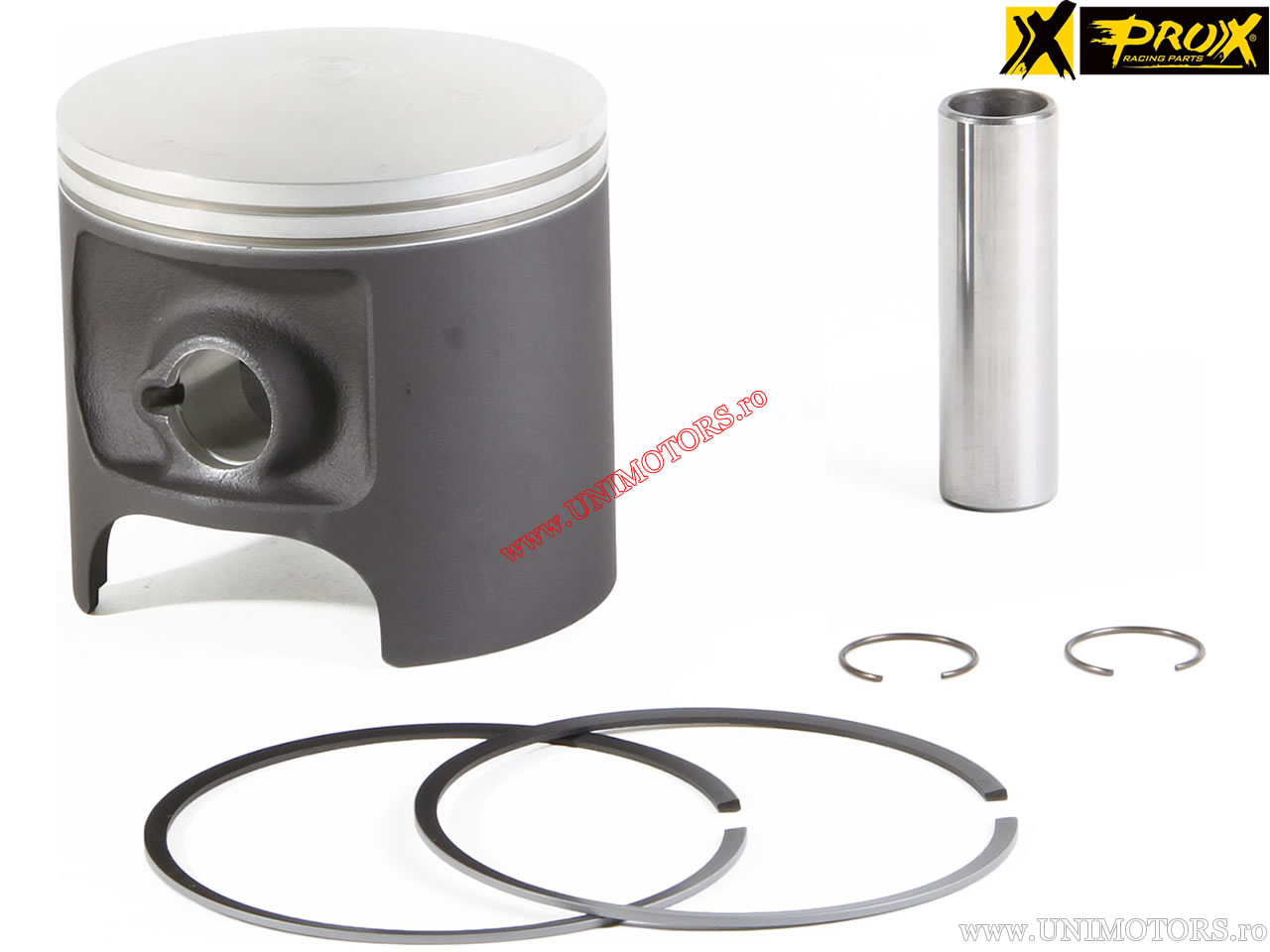

ProX piston kit for Honda CR 500 R manufactured from 1982-2001 - 500cc 2T. The complete application list can be found below.

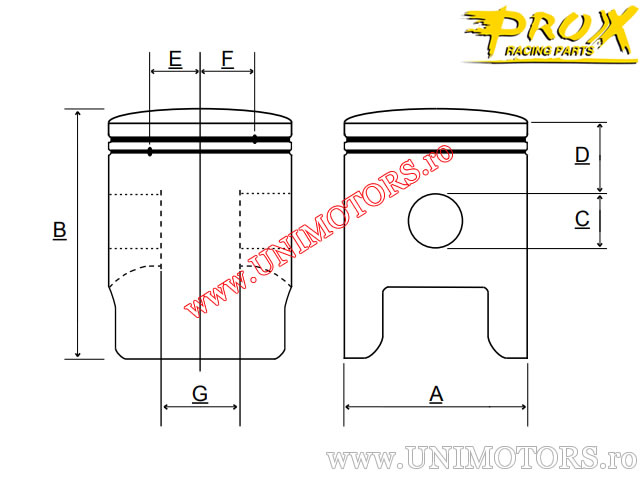

Technical specifications:
- standard cylinder diameter (factory diameter): 89.00 mm
- engine type: 2-stroke
- total piston length (B): 87.00 mm
- piston pin diameter (C): 20.00 mm
- compression height (D): 30.00 mm
- pin ring position measured from center (E): 19.00 mm
- pin ring position measured from center (F): 19.00 mm
- internal distance of piston pin (G): 30.00 mm
- piston head shape: domed
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- standard (89.00 mm)
- +0.25mm (89.25 mm)
- +0.50mm (89.50 mm)
- +0.75mm (89.75 mm)
- +1.00mm (90.00 mm)
- +1.25mm (90.25 mm)
- +1.50mm (90.50 mm)
- +2.00mm (91.00 mm)
