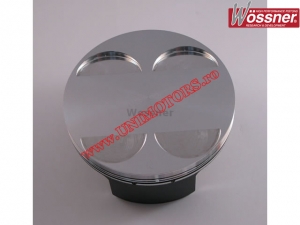

Kit piston - Honda CRF 450R ('02-'03) (95,96-95,98mm) - Wossner

Forged piston kit Wossner for Honda CRF450 R manufactured between 2002-2003.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 96.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 12.00:1 (increased compression - 12.00:1 compared to 11.50:1 OEM)
- pin-to-cap distance (measured from the center of the pin): 24.00mm
- piston pin dimensions: 19x10x51mm.

Available piston sizes:
- A (95.96mm)
- B (95.97mm)
- C (95.98mm)
