Kit piston - Kawasaki KX 450 F ('09-'12) - 450 4T - ProX

Please select the piston size from the box above.

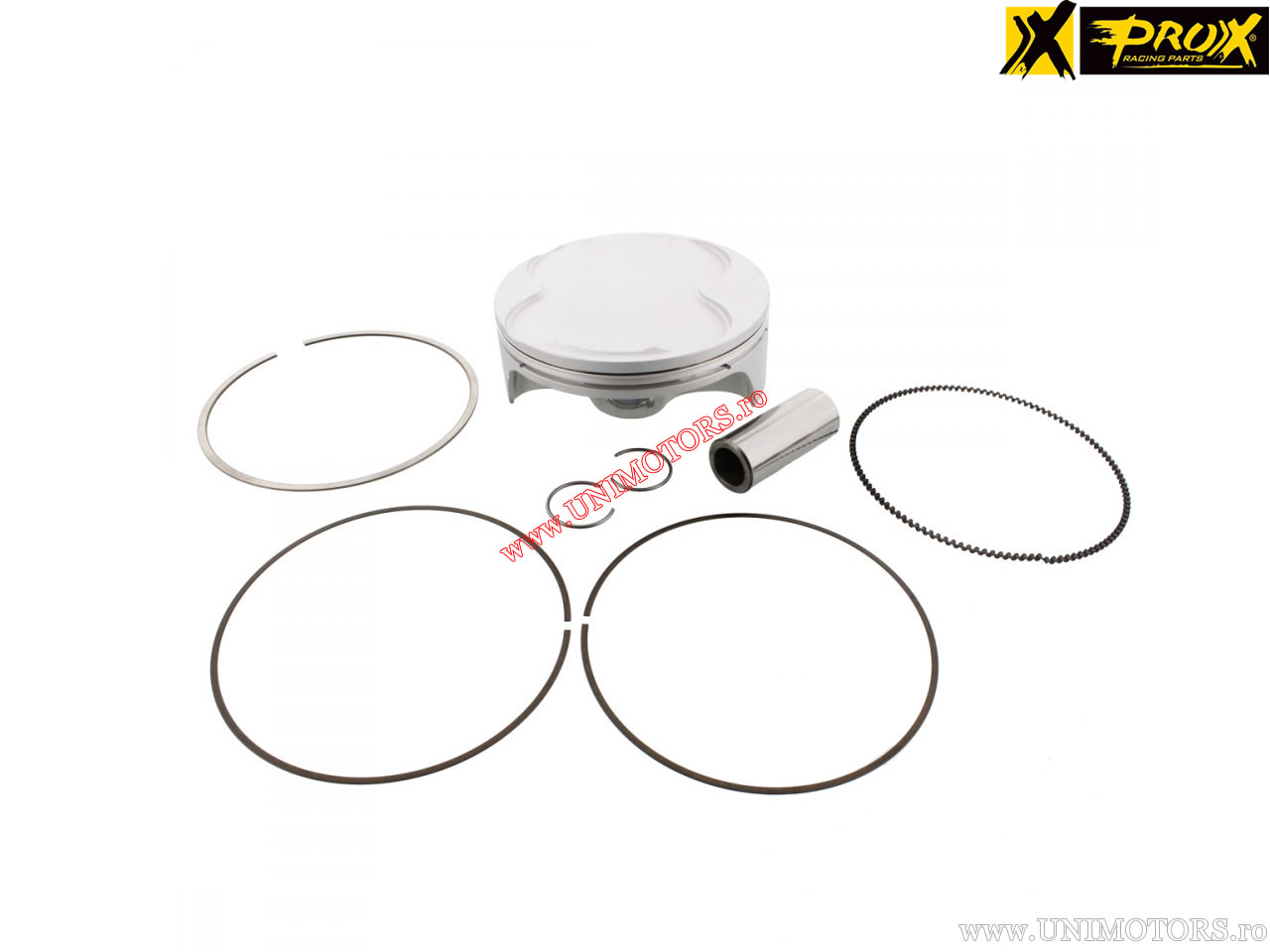

ProX piston kit for Kawasaki KX 450 F (2009-2012) - 450cc 4T. The complete application list can be found below.

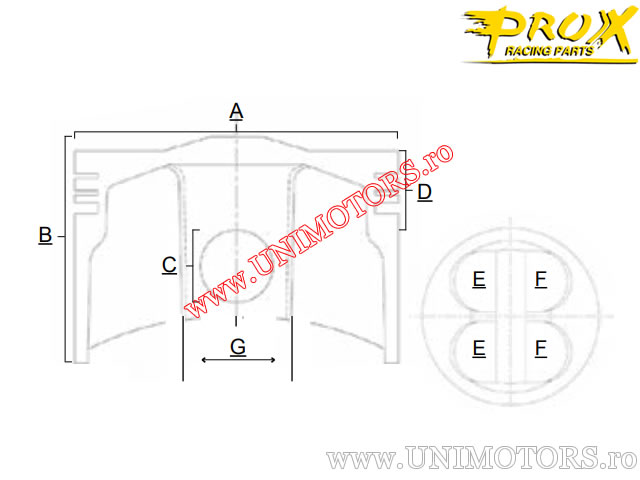

Technical specifications:
- standard cylinder diameter (factory diameter): 96.00 mm
- engine type: 4-stroke
- total piston length (B): 43.20 mm
- piston pin diameter (C): 19.00 mm
- compression height (D): 14.00 mm
- pin groove position measured from center (E): -
- pin groove position measured from center (F): -
- internal distance of piston pin (G): 22.60 mm
- piston head shape: flat
- other information: 4 x valve pockets
- manufacturing technology: forged piston
- compression ratio: 12.5:1

Available piston sizes (A):
- A (95.97 mm)
- B (95.98 mm)
- C (95.99 mm)
