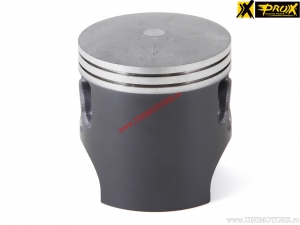

Kit piston - Yamaha YFS 200 Blaster - 200 2T - ProX

Please select the piston size from the box above.

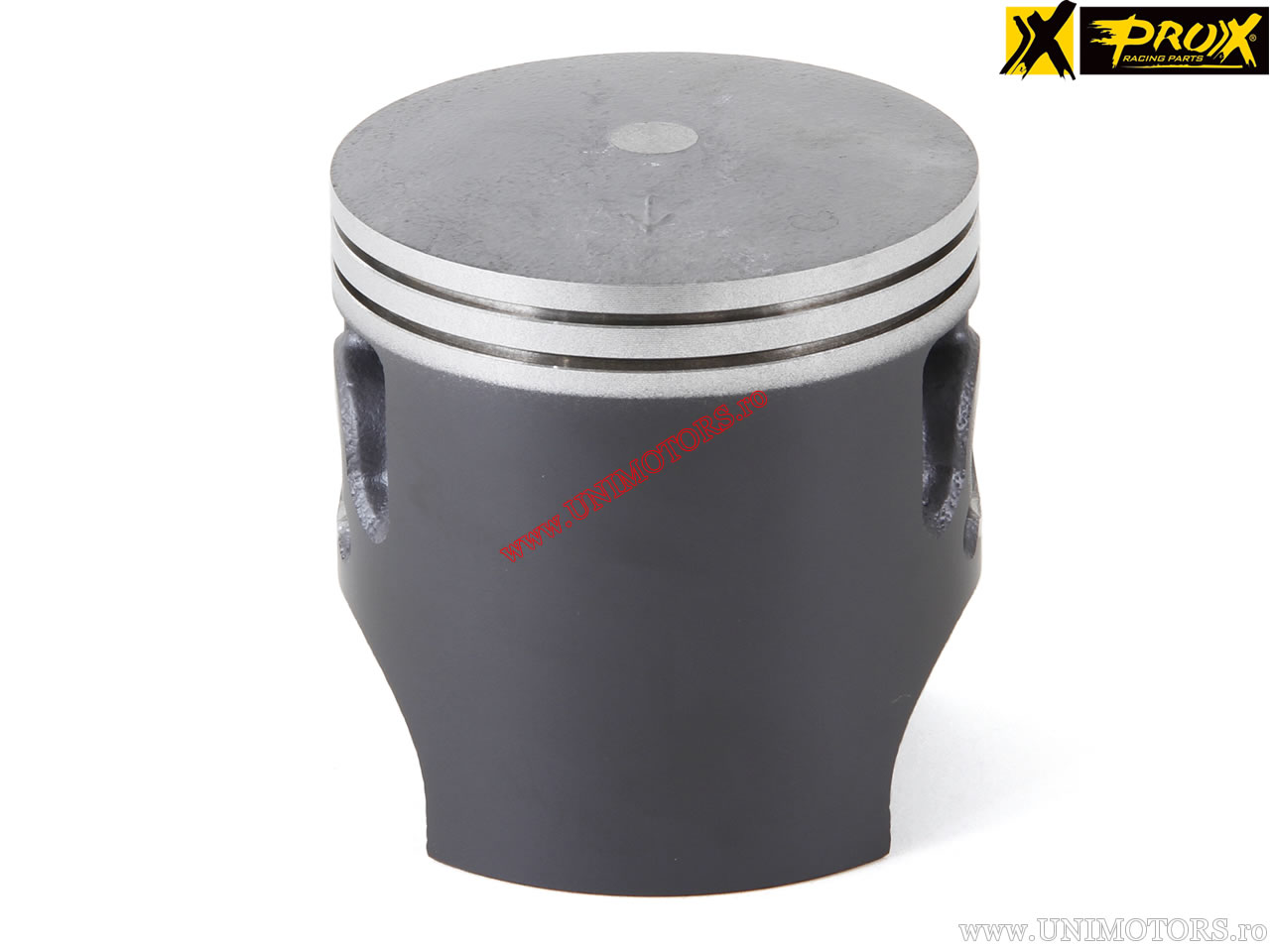

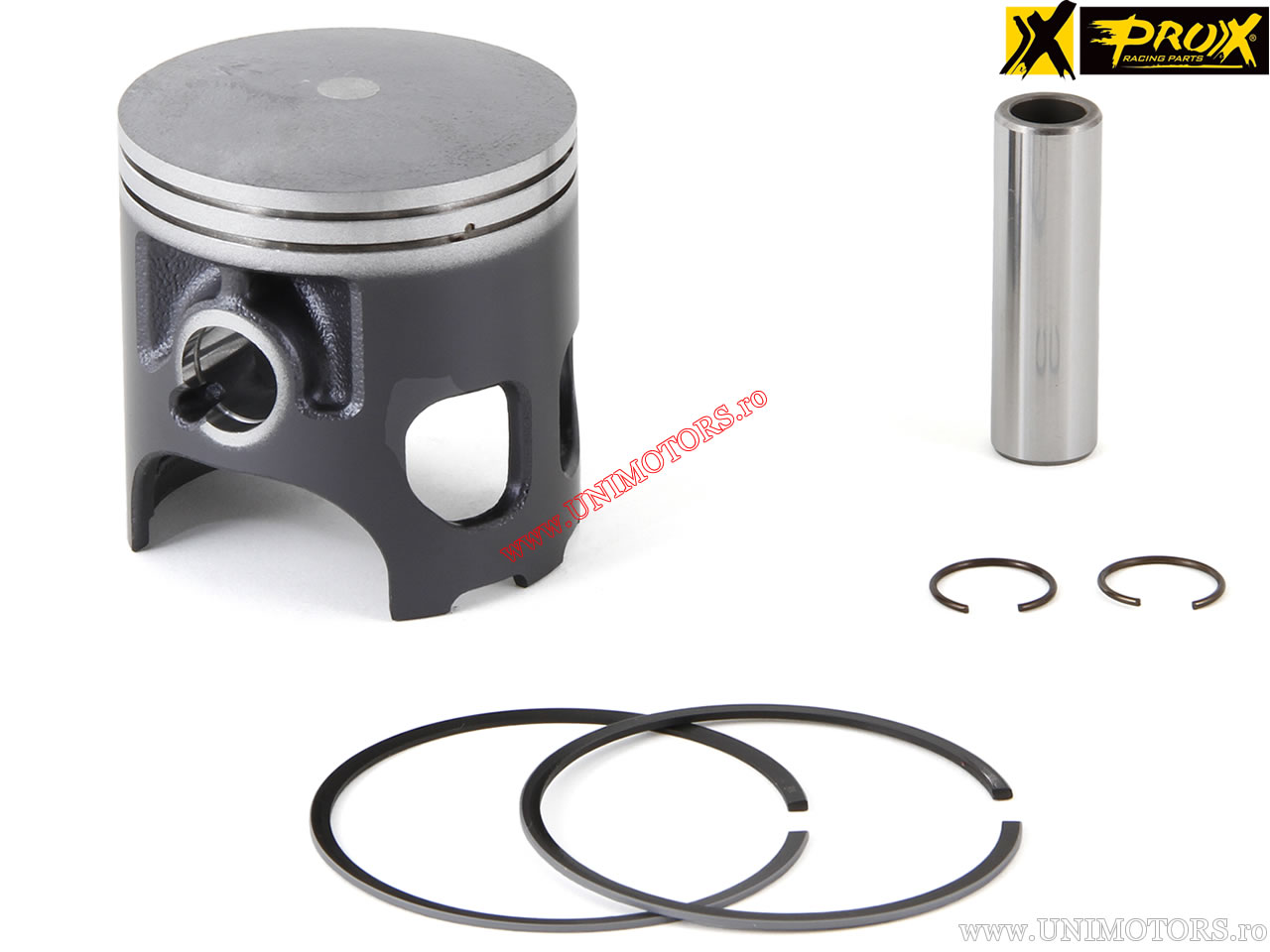

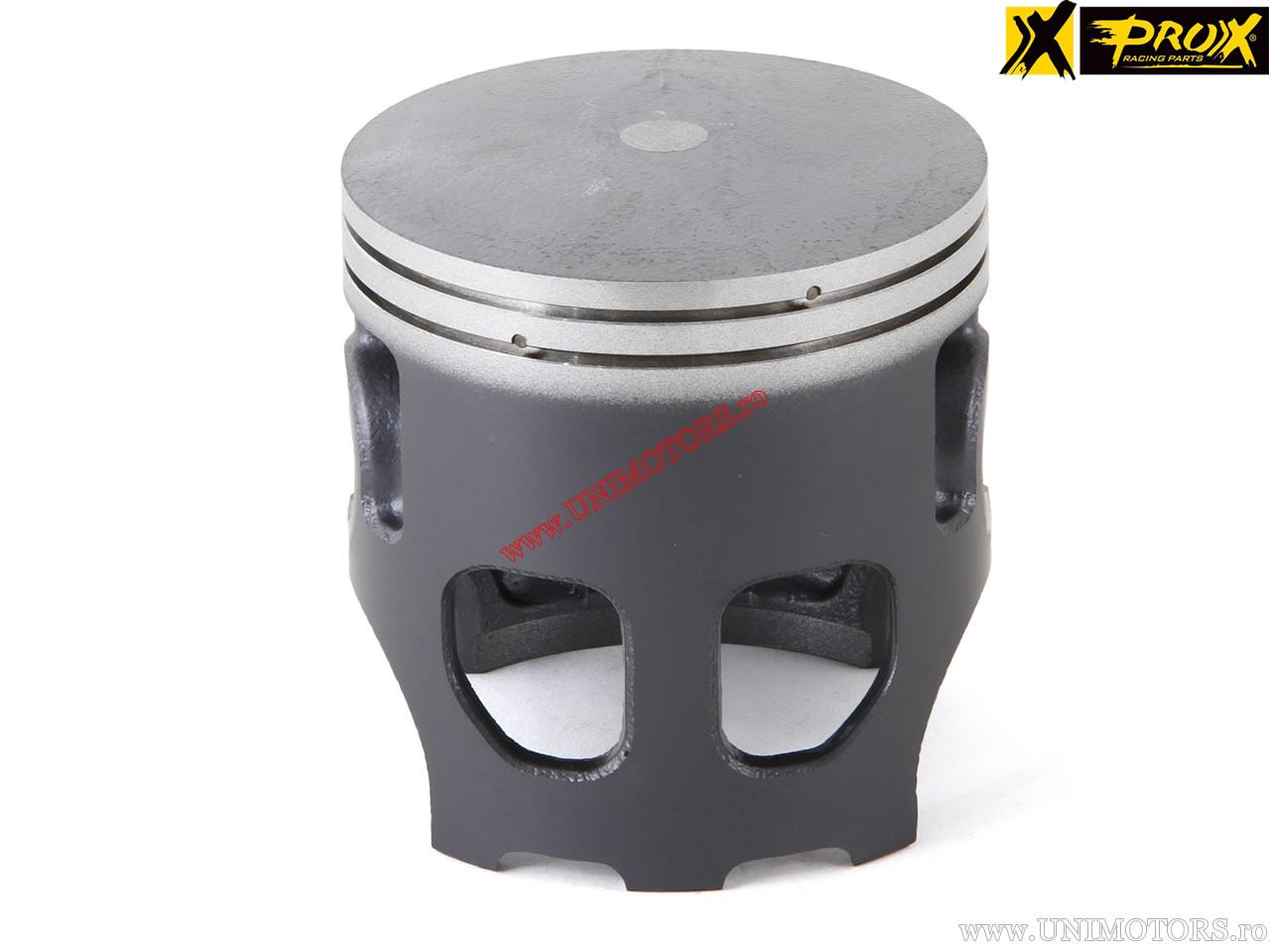

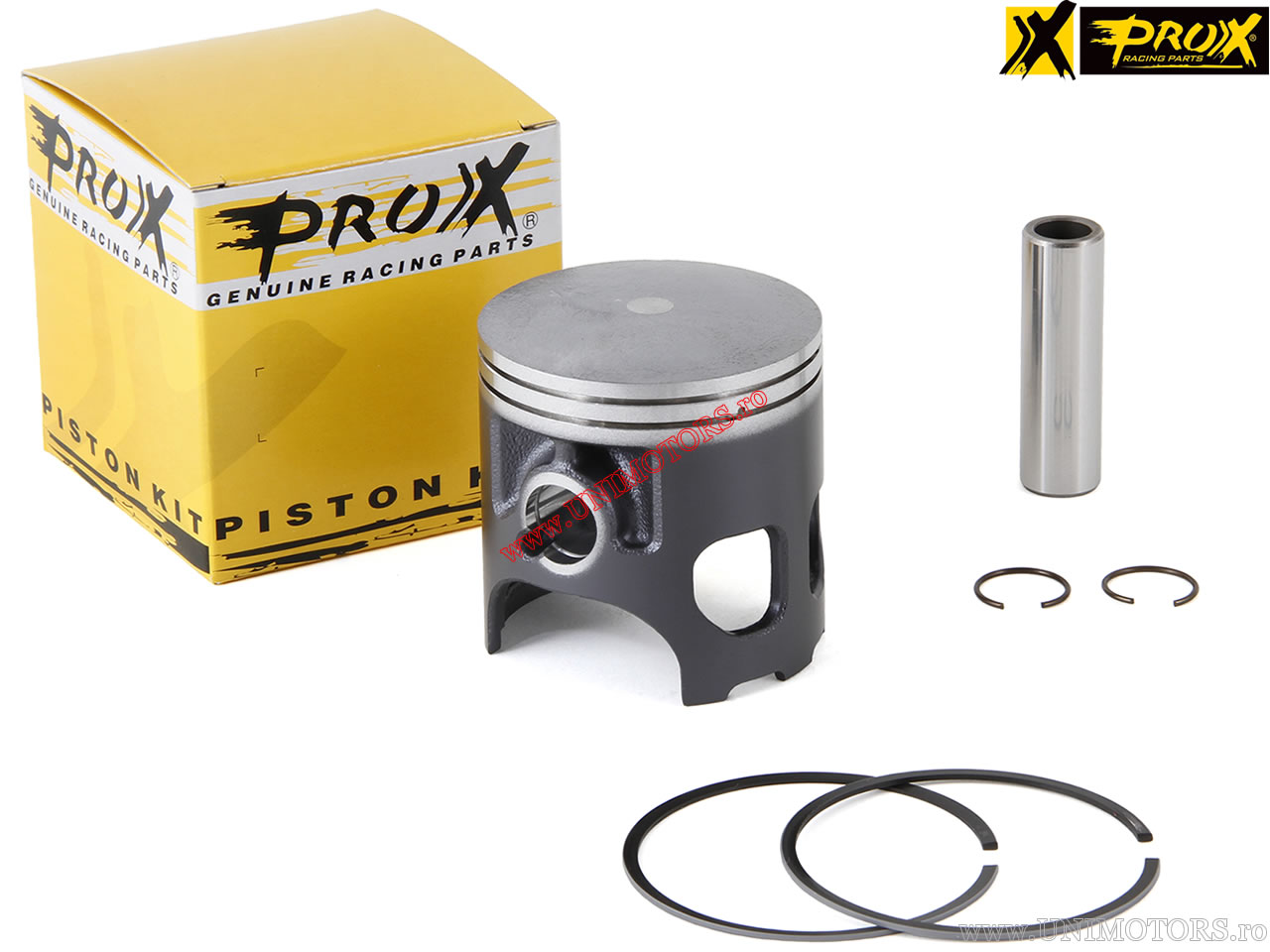

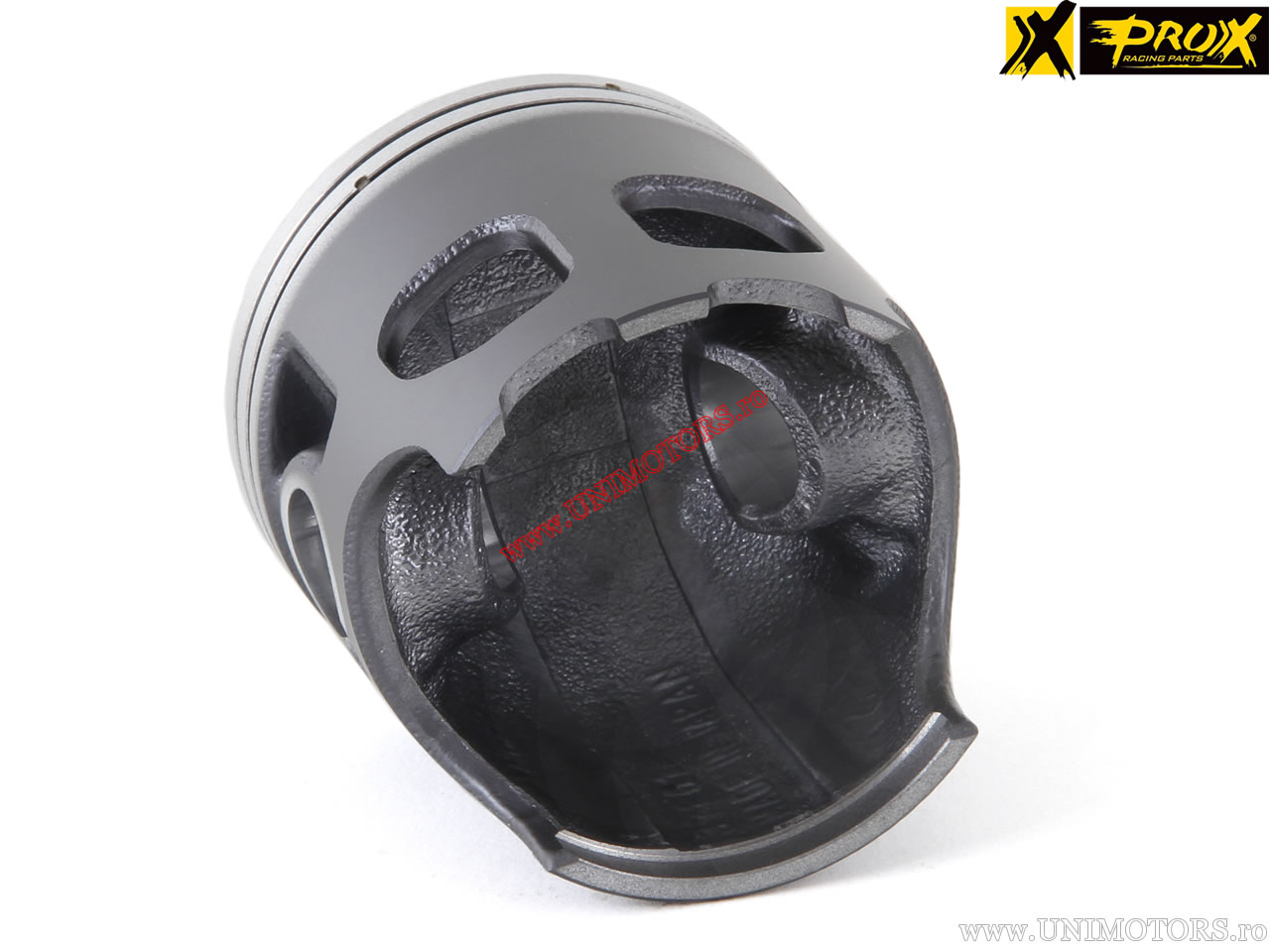

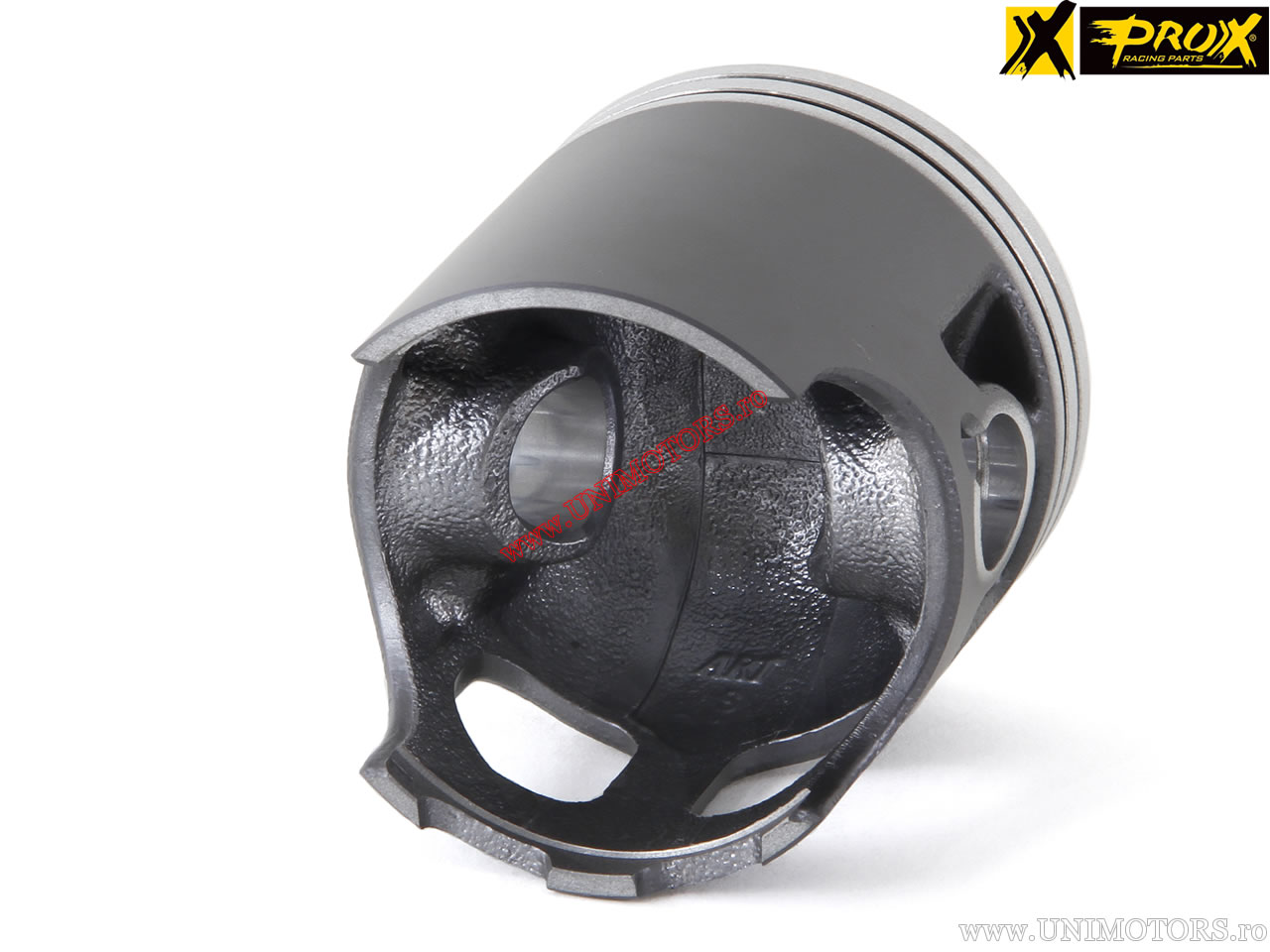

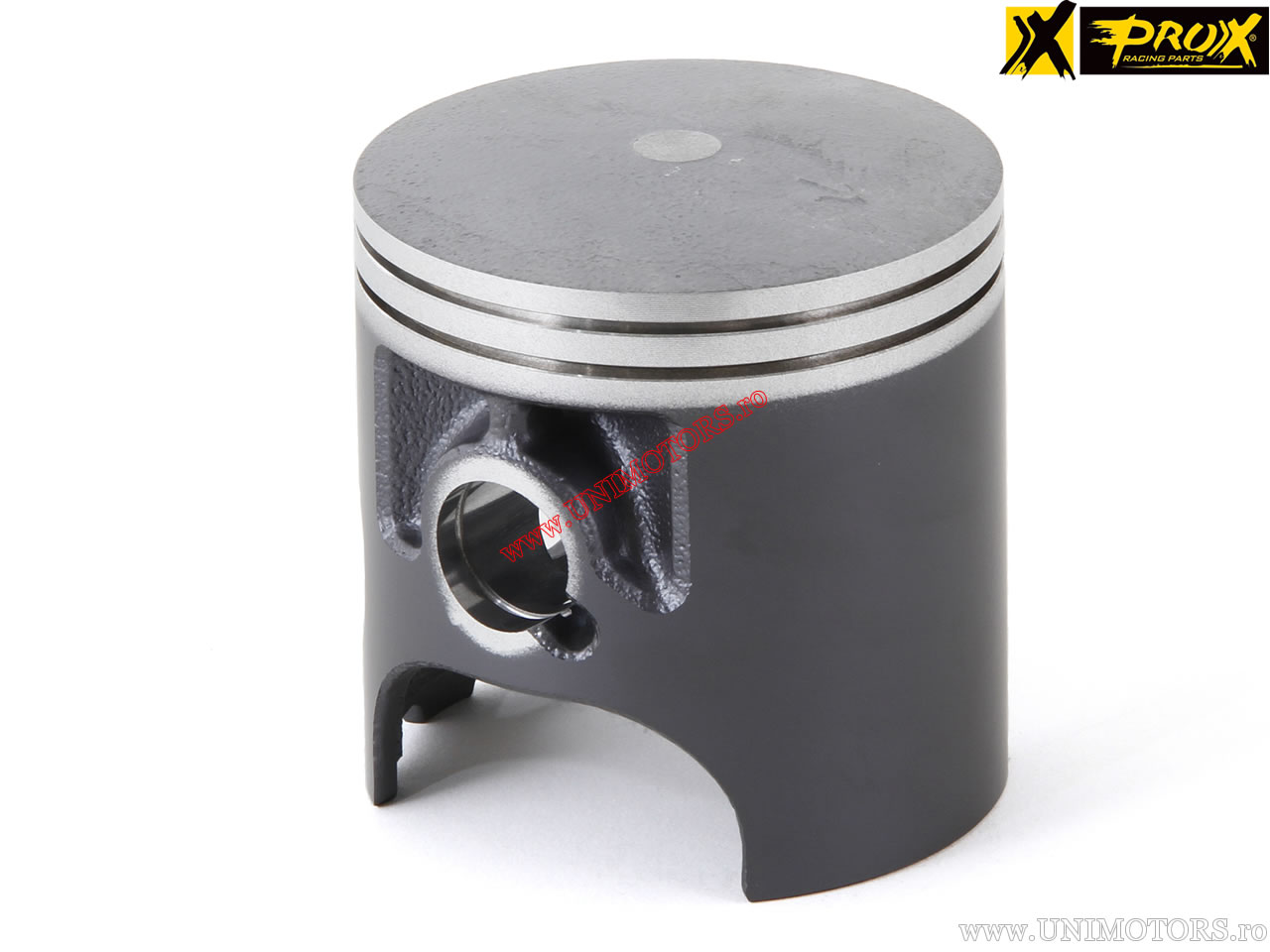

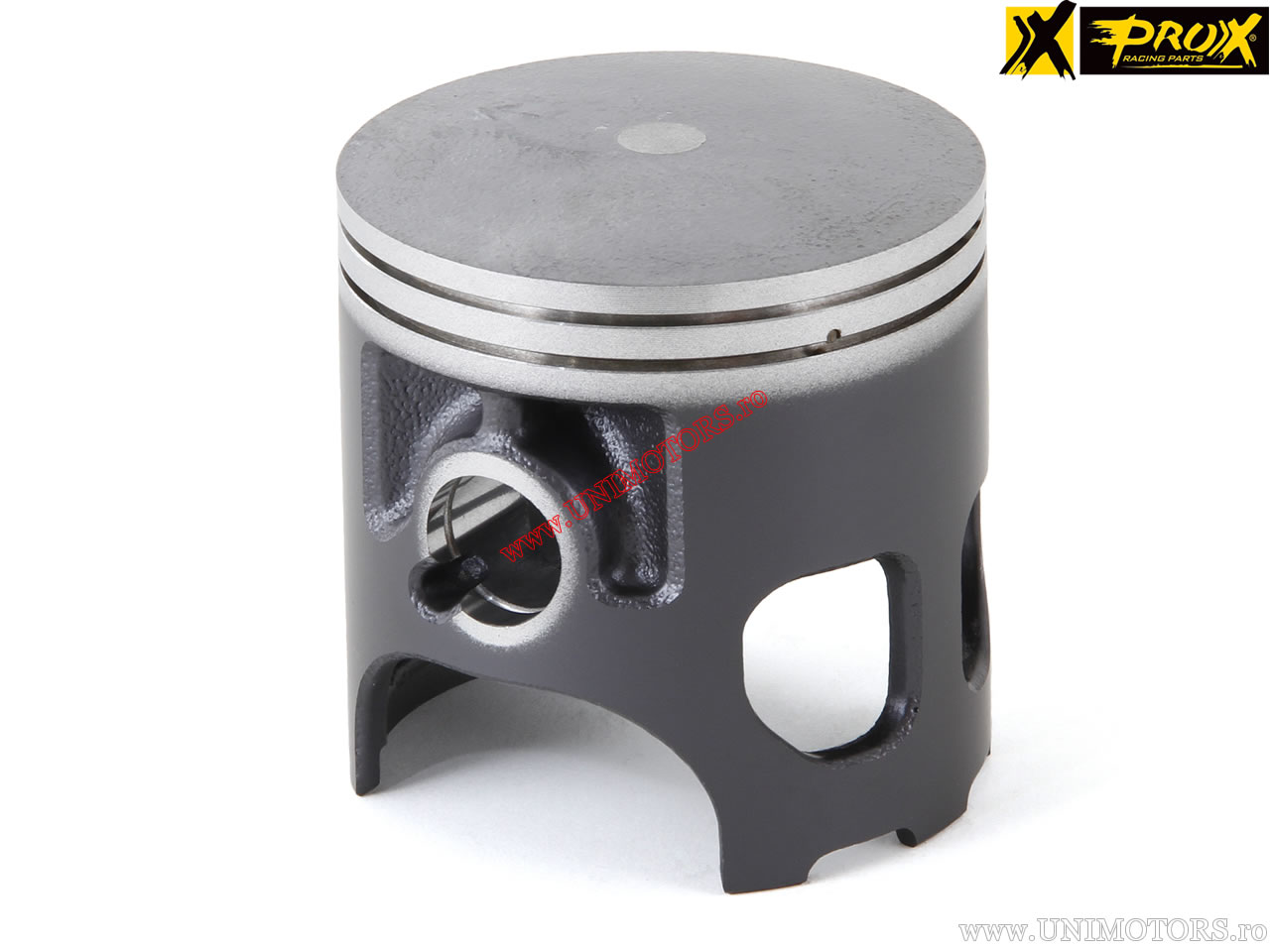

ProX piston kit for Yamaha YFS 200 Blaster - 200cc 2T. The complete application list can be found below.

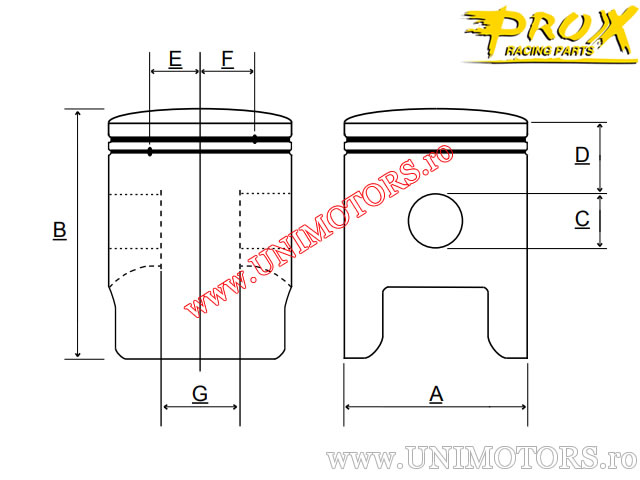

Technical specifications:
- standard cylinder diameter (factory diameter): 66.00 mm
- engine type: 2-stroke
- total piston length (B): 69.00 mm
- piston pin diameter (C): 16.00 mm
- compression height (D): 22.00 mm
- pin ring position measured from center (E): 15.00 mm
- pin ring position measured from center (F): 15.00 mm
- internal distance of piston pin (G): 23.00 mm
- piston head shape: domed
- additional information: 2 intake ports
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- standard (66.00 mm)
- +0.25mm (66.25 mm)
- +0.50mm (66.50 mm)
- +0.75mm (66.75 mm)
- +1.00mm (67.00 mm)
- +1.25mm (67.25 mm)
- +1.50mm (67.50 mm)
- +1.75mm (67.75 mm)
- +2.00mm (68.00 mm)
