Left Rear Brake Disc MST501SWL Rigid - Lucas TRW

Left rear brake disc from Lucas TRW - MST 501 SWL.

The brake discs from Lucas TRW are made from a high-hardness steel alloy of 35 HRC and feature a round design with perforations for optimal cooling. They are produced using state-of-the-art technologies, with minimal tolerances and high-precision finishes.

Lucas TRW is a global leader in the production of parts and accessories for vehicles and motorcycles. TRW Moto is the specialized division of Lucas for braking systems, clutches, and accessories for motorcycles, scooters, and ATVs.

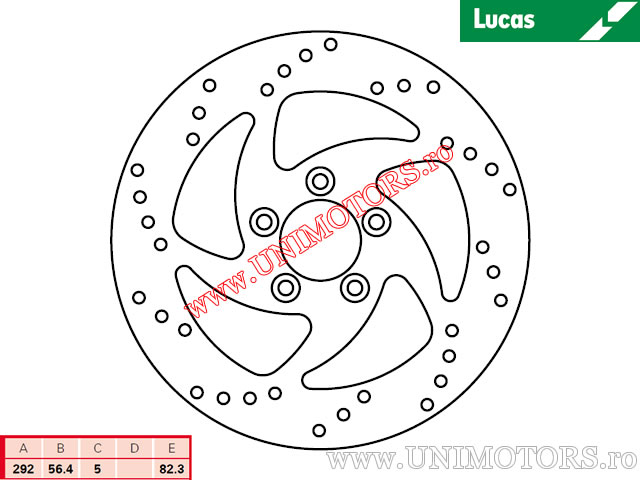

Technical specifications:
- type: rigid disc
- material: steel
- outer diameter (mm): 292
- inner diameter (mm): 56.4
- thickness (mm): 5
- weight (kg): 1.764
- TÜV approved: yes

Among the most important applications are: Harley-Davidson XL - C Sportster Custom 883 (1999-2002) / XL - C Sportster Custom 883 (2003-2010) / XL - L Sportster Low 883 (2006-2010) / XL - N Sportster Iron 883 (2009-2010) / XL - R Sportster 883 (2000-2003) / XL - R Sportster Roadster 883 (2006-2013) / XL - Sportster 883 (2004-2009) / XLH - Sportster 883 (2000-2003) / XLH - Sportster Hugger 883 (2000-2003) / XL - C Sportster Custom 1200 (2004-2010) / XL - N Nightster 1200 (2007-2010) / XL - R Sportster Roadster 1200 (2004-2008) / XL - S Sportster Sport 1200 (2000-2003) / XL - T Sportster Super Low ABS 1200 (2014-2015) / XL - V Seventy-Two 1200 (2012-2013) / XL - X Forty-Eight 1200 (2010-2013).

Complete application list can be found below.
