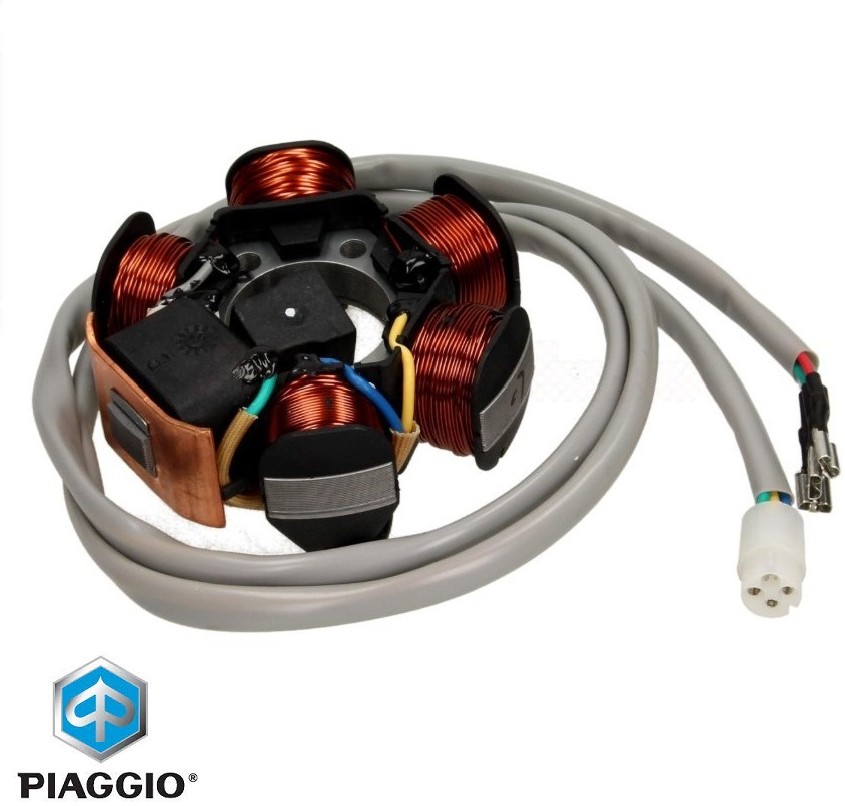

Magneto (ignition stator) - Gilera Runner / Piaggio Liberty / NRG / Sfera / Typhoon / Zip / Vespa ET2 2T 50cc - Piaggio

Magneto (ignition stator) original Piaggio. Among the most important applications are: Gilera 50cc: Runner DT 2T LC (1997-1998) / Runner DD 2T LC (1998-2001) / Runner SP DD 2T LC (1999-2001) / Stalker DT 2T AC (1997-2001) / Stalker DD 2T AC (1997-2001) / Stalker DT Base 2T AC (1998-2004) / Piaggio 50cc: Free 2T AC (1997-2002) / NRG 2T AC (1994-1997) / NRG MC2 2T AC (1996-1997) / NRG MC2 2T AC (1998-) / NRG MC2 DD 2T LC (1999-2002) / NRG MC2 DT RST 2T LC (1996-1998) / NRG MC2 DT Extreme 2T AC (1999-2002) / NTT 2T LC (1994-1996) / NTT 2T LC (1997-1998) / Quartz LC (1991-1994) / Quartz Maquillage LC (1994-1996) / Sfera 2T AC (1991-1995) / Sfera RST AC (1995-1997) / Typhoon 2T AC (1993-1999) / Typhoon X 2T AC (1999-2000) / Typhoon XR 2T AC (2000) / Zip 2T AC (1994-1996) / Zip Base RST 2T AC (1996-1999) / Zip Base DT RST 2T AC (1999-2001) / Zip SP 2T LC (1996-2003) / Zip Fast Rider 2T AC (1995-1996) / Zip RST Fast Rider 2T AC (1996-1998) / Vespa 50cc: ET2 2T AC (1996-).

ORIGINAL PIAGGIO PART;
RMS equivalent: 246350042;
OEM code Gilera: 830293;
OEM code Gilera: 830294;
OEM code Piaggio: 830293;
OEM code Piaggio: 830294;
OEM code Vespa: 830293;
OEM code Vespa: 830294;

Features:
- 6-pole stator;
- Total number of wires: ;
- Wires on round connector;
- 3 wires on individual connectors.
- Outer diameter: 96 mm.
