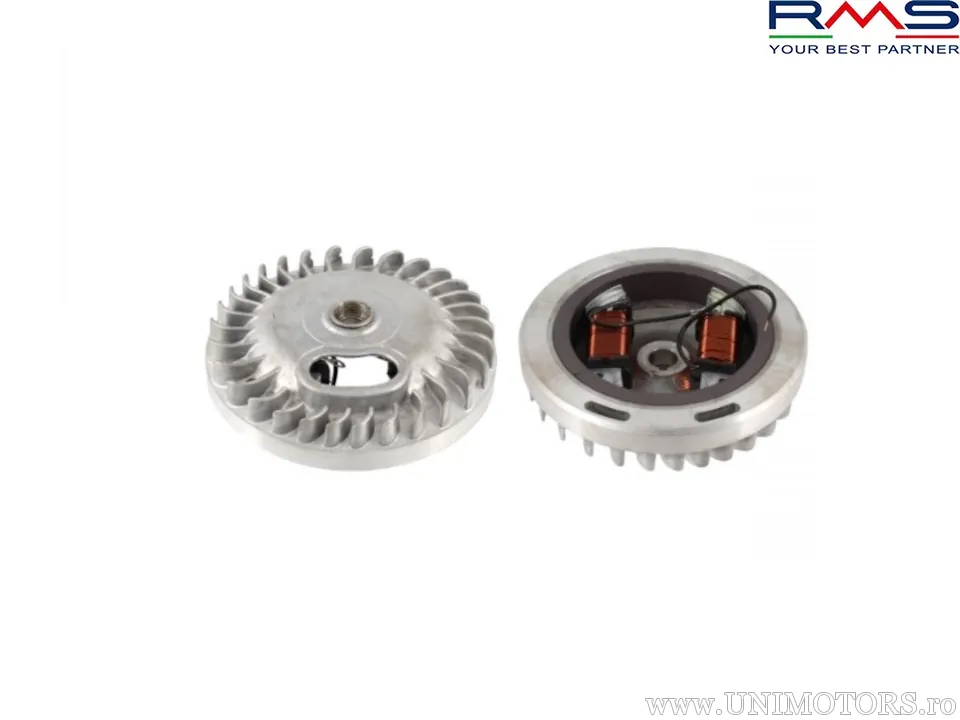

Complete ignition stator magneto RMS. Among the most important applications are: Piaggio 50cc: Boss 2T AC (1988-1989) / Boxer 2T AC (1972-1995) / Ciao 50 L 2T AC (1972-1979) / Ciao PX 2T AC (1983-1992) / Ciao P 2T AC (1982-1998) / Ciao Mix 2T AC (1998-2004) / Ciao 2T AC (1998-2001) / Ciao MY 2T AC (1999) / Grillo 2T AC (1982-1994) / Si 2T AC (1979-1999) / Si Mix 2T AC (1999) / Super Bravo 2T AC (1985-1996).
OEM Piaggio Code: 1665425;
OEM Piaggio Code: 1218225;
OEM Piaggio Code: 1218235;
Features:
- Compatible with Piaggio mopeds with 6V electrical system (models with points);
- Aluminum flywheel;
- Inner diameter of flywheel: 91.50 mm;
- Outer diameter of flywheel: 141 mm;
- Inner diameter (threaded side): 16 mm;
- Inner diameter (crankshaft side to crankshaft pin): 14 mm;
- Rubber cover on the flywheel is ordered separately: product code: CF7400;
The assembly includes:
- Magneto flywheel (rotor);
- Ignition coil;
- Lighting coil.
