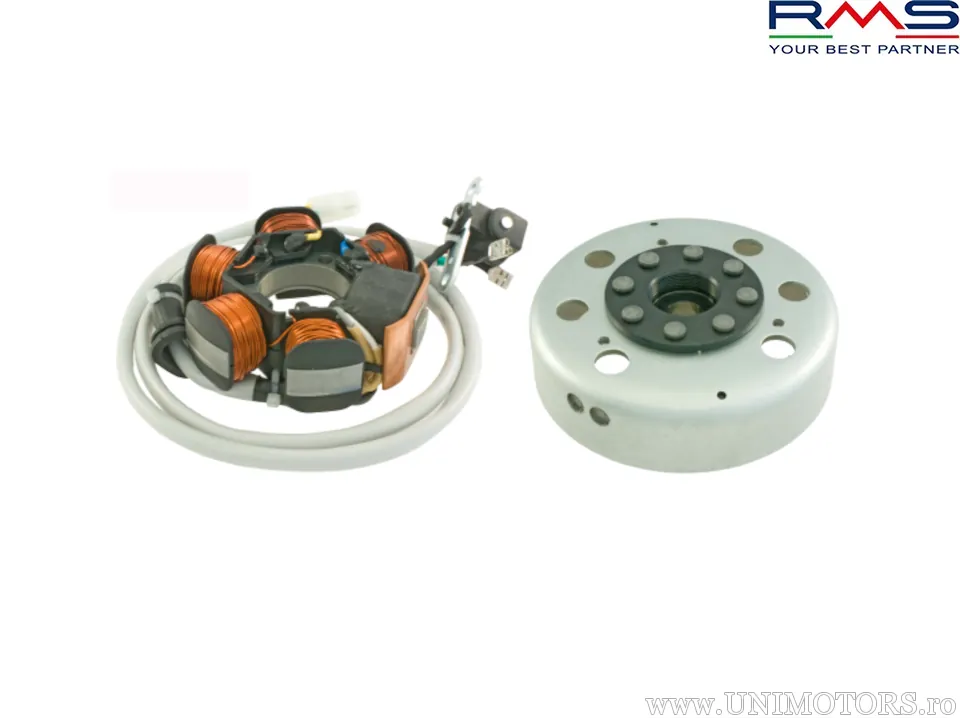

Magnetou (ignition stator) complete - Aprilia ('04-) / Gilera 2T ('03-) / Piaggio 2T ('04-) / Vespa 2T ('04-) 2T - RMS

Complete ignition magneto (stator) RMS. Among the most important applications are: Aprilia 50cc: Mojito Custom 2T (Piaggio engine) (2004-2010) / SR 2T H2O New (carburetor + injection) (2004-2009) / Scarabeo 2T (2005-2010) / Scarabeo Net 2T (2005-2011) / Scarabeo Street 2T (2005-2011) / Sport City One 2T Euro 3 (2008-2011) / SR injection 2T MY (2010-2012) / SR carburetor 2T MY (2010-2012) / SR Motard 2T Euro 3 (2012) / Derbi 50cc: Atlantis Red Bullet Euro 1 2T / Atlantis Bullet 2T (2003) / Atlantis City 2T (2003) / Atlantis O2 MY (2002) / Atlantis O2 Bullet (2003) / Atlantis O2 City Euro 2 2T (2003-2006) / Atlantis Red Bullet Euro 2 (2003) / Atlantis Two Chic Euro 2 (2005) / GP1 2T (2002) / GP1 2T Euro 1 (2003) / GP1 2T Euro 2 (2003) / GP1 Race Euro 2 (2005-2007) / Gilera 50cc: DNA (2000-2006) / DNA GP Experience (2000-2005) / DNA MY (2005) / Ice (2001-) / Runner Poggliali) / Runner 50 Sport (2000-2005) / Runner 50 SP (2005) / Runner SP (2005-2006) / Runner 50 SP Race (2005) / Runner 50 SP (2007) / Runner 50 SP 10-2012) / Runner 50 SP Race (2005) / Runner 50 SP SC (2006) / Stalker (2005-2006) / Stalker (2005-2006) / Stalker (2007-2008) / Stalker (2008-2011) / Stalker Naked (2008) / Stalker Special Edition (2007-2008) / Storm (2007) / Italjet 50cc: Jet Set 2T (Piaggio engine) / Torpedo 2T (Piaggio engine) / Piaggio 50cc: Fly 2T (2006-2007) / Fly 2T (2010-2011) / Fly 2T (2006) / Fly 2T MOC (2009-2011) / Diesis (1998-2005) / Liberty 2T Sport (2006) / Liberty 2T Sport (2007-2008) / Liberty 2T RST PTT (2000-2005) / NRG MC3 (2000-2005) / NRG MC3 DD (2000-2005) / NRG MC3 DT (2000-2005) / NRG Power DD (2005) / NRG Power DD (2007-2011) / NRG Power DD Special Series (2007-2012) / NRG Power DT (2005) / NRG Power DT (2006-2011) / NRG Power DT Special Series (2007-2012) / NRG Power Pure Jet (2005-2006) / NRG Power Pure Jet (2007-2008) / NRG Power Pure Jet 10-2011) / Typhoon 2T Euro 2 (2006-2008) / Typhoon 2T Euro 2 (2009-2012) / Typhoon 2T Euro 2 Special Series (2007-2008) / Typhoon 2T Euro 3 (2011) / Zip 2T (2009-2011) / Zip SP Euro 2 (2006-2012) / Vespa 50cc: ET2 (2002-2005) / LX 2T (2004-2005) / LX 2T (2005) / LX 2T (2006-2009) / LX 2T (2009-2010) / LX 2T Touring (2010-2011) / LXV 2T (2006-2009) / LXV 2T (2006-2009) / LXV 2T Navy (2007-2008) / S 2T (2007) / S 2T (2007) / S 2T College (2007-2012).

OEM code Aprilia (stator + magneto): 584525 + 584526;
OEM code Aprilia (stator + magneto): 639865 + 584526;
OEM code Aprilia (stator + magneto): 638610 + 584526;
OEM code Aprilia (stator + magneto): 830296 + 584526;
OEM code Derbi (stator + magneto): 830296 + 584526;
OEM code Gilera (stator + magneto): 584525 + 584526;
OEM code Gilera (stator + magneto): 639865 + 584526;
OEM code Gilera (stator + magneto): 638610 + 584526;
OEM code Gilera (stator + magneto): 830296 + 584526;
OEM code Piaggio (stator + magneto): 584525 + 584526;
OEM code Piaggio (stator + magneto): 639865 + 584526;
OEM code Piaggio (stator + magneto): 638610 + 584526;
OEM code Piaggio (stator + magneto): 830296 + 584526;
OEM code Vespa (stator + magneto): 584525 + 584526;
OEM code Vespa (stator + magneto): 639865 + 584526;
OEM code Vespa (stator + magneto): 638610 + 584526;
OEM code Vespa (stator + magneto): 830296 + 584526;
RMS equivalent (for stator): 246350072;

Stator characteristics:
- 6 coil stator;
- Diameter: 96 mm.

Flywheel (magneto) characteristics:
- Inner diameter of magneto: 99.5 mm;
- Outer diameter of magneto: 106.5 mm;
- The kit includes stator + flywheel (magneto).
