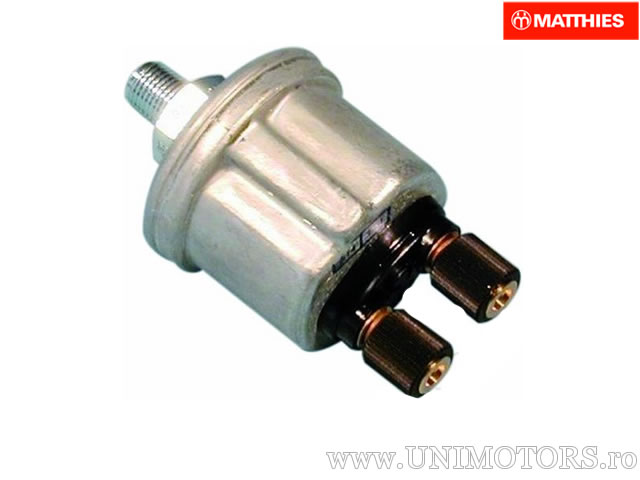

Oil pressure sensor 0-10 bar with warning M10 x 1 - JM

Sensors oil pressure from the manufacturer VDO.

Technical specifications:
- VDO pressure sensor with warning;
- for measuring gas or liquid pressure in connection with an electric display device;
- these pressure transducers are electromechanical;
- electrical resistance of 10-184 ohms changes according to pressure;
- warning contact closes with pressure drop;
- measurement range: 10 bar;
- warning contact / switching point: 0.5 bar ± 0.15 bar;
- connector: M10 x 1 short tapered;
- length, L1: 19.5 mm;
- length L2: 11.0 mm;
- connection: 2 M4 threaded nuts;
- voltage: 6 V to 24 V;
- allows max pressure of 30 bar or 50 bar (short duration up to 2 seconds);
- warning closes with pressure drop;
- alarm contact switching capacity: max. 5 W non-inductive;
- operating temperature: -25 °C to +100 °C (at +120 °C max for 1 hour).
