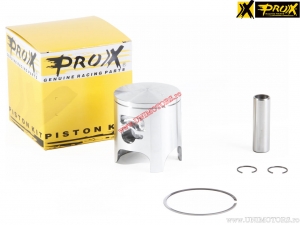

Piston Kit - Honda CR 125 R ('85-'86) - 125 2T - ProX

Please select the piston size from the box above.

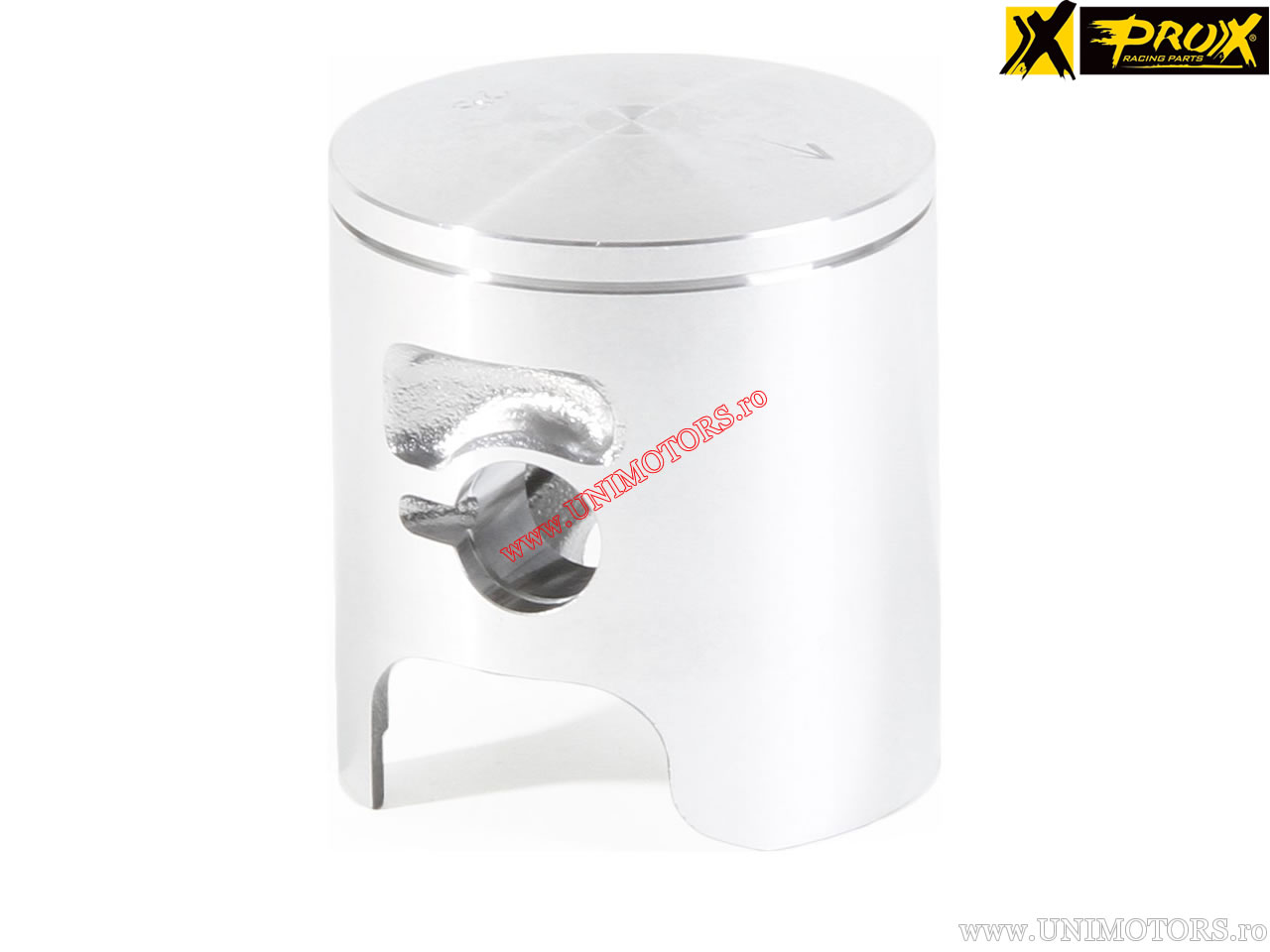

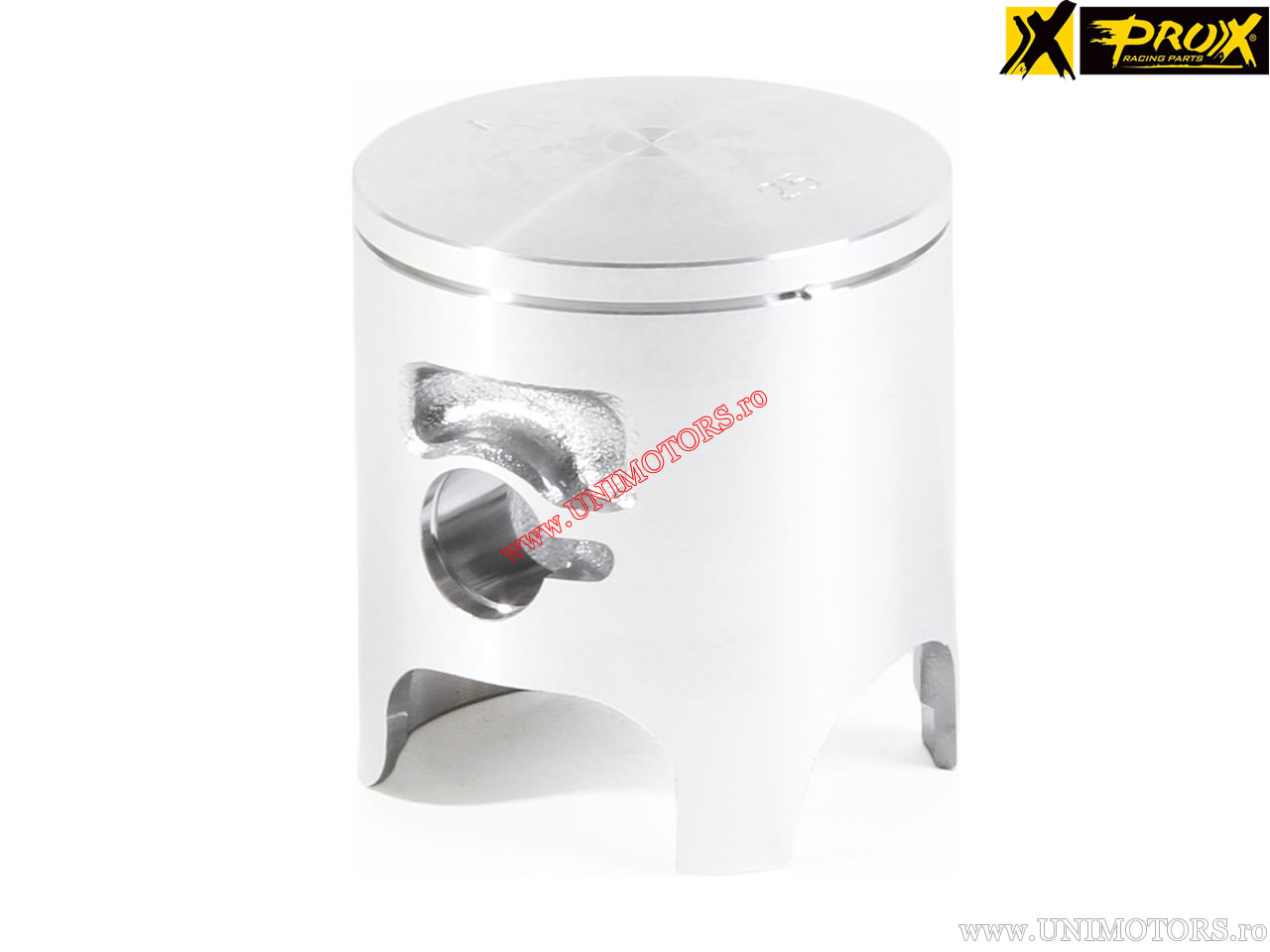

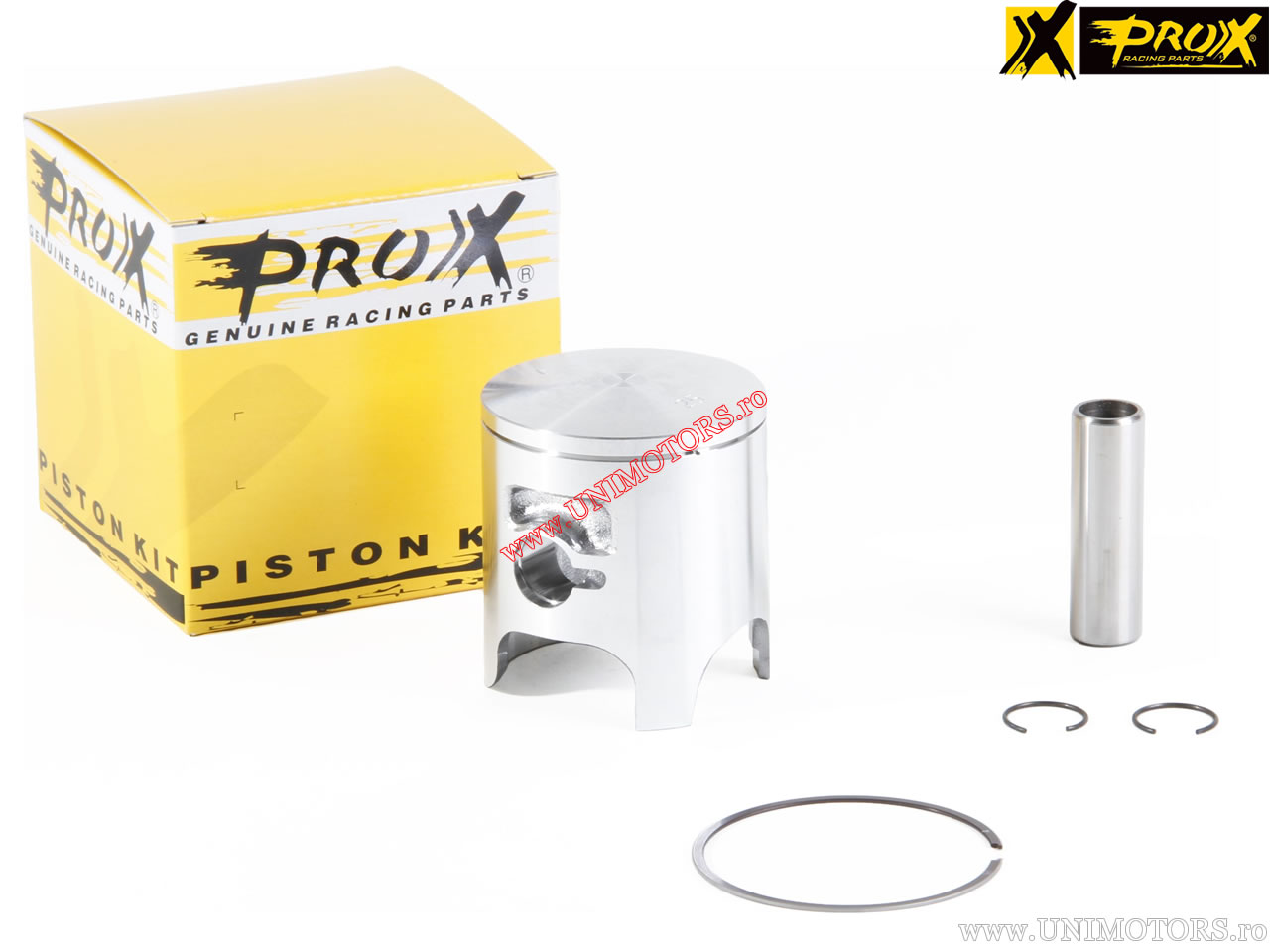

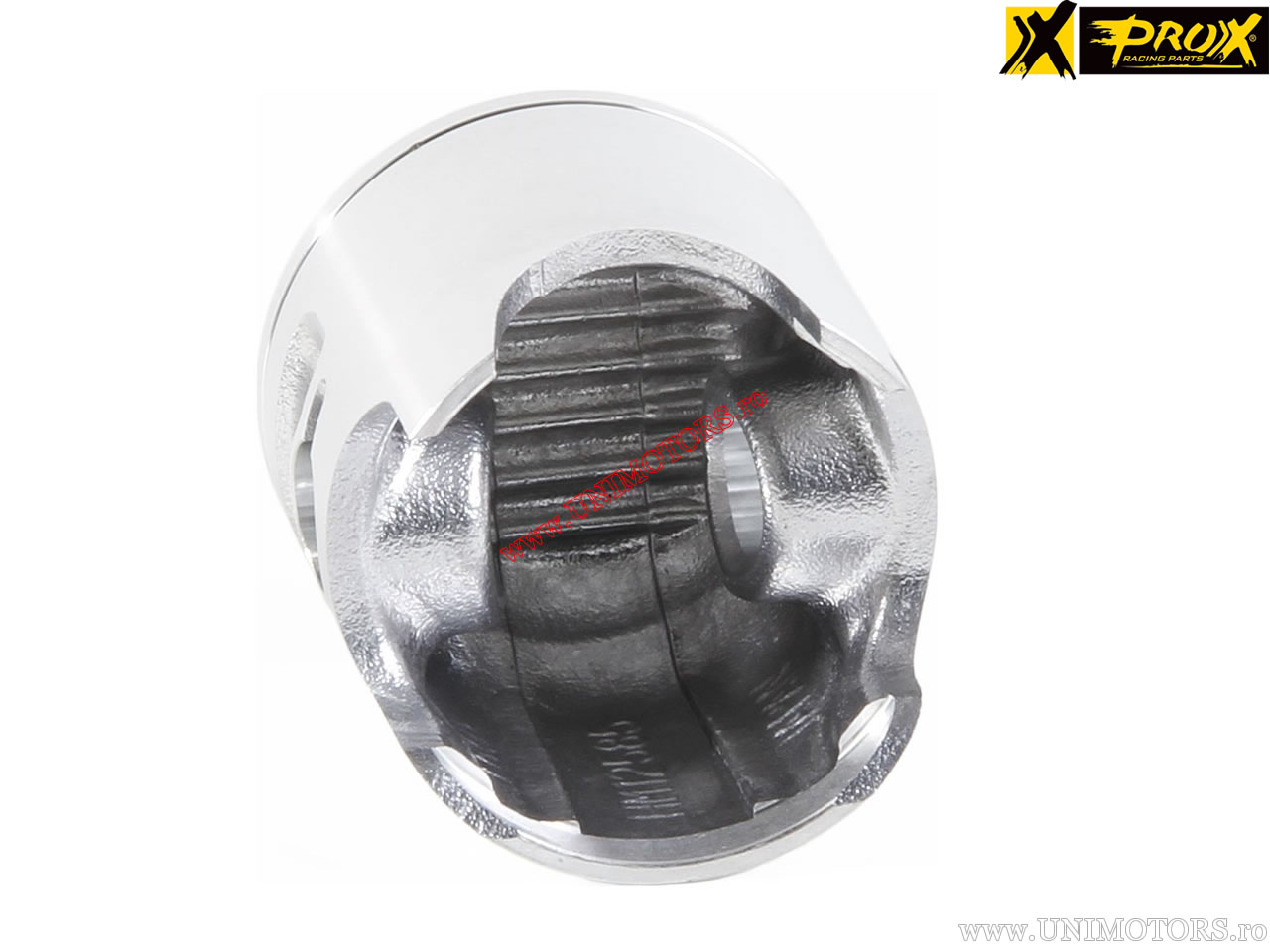

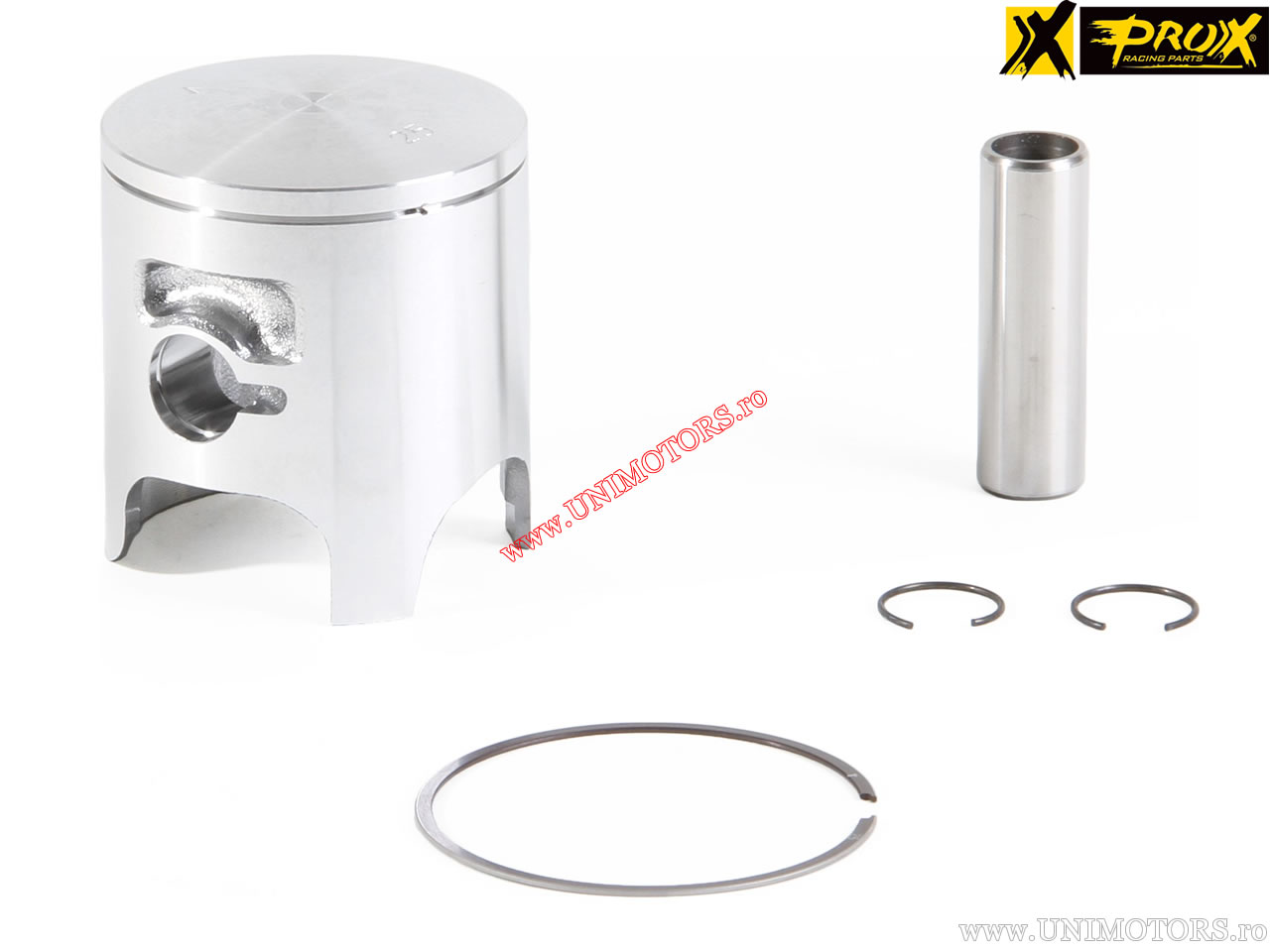

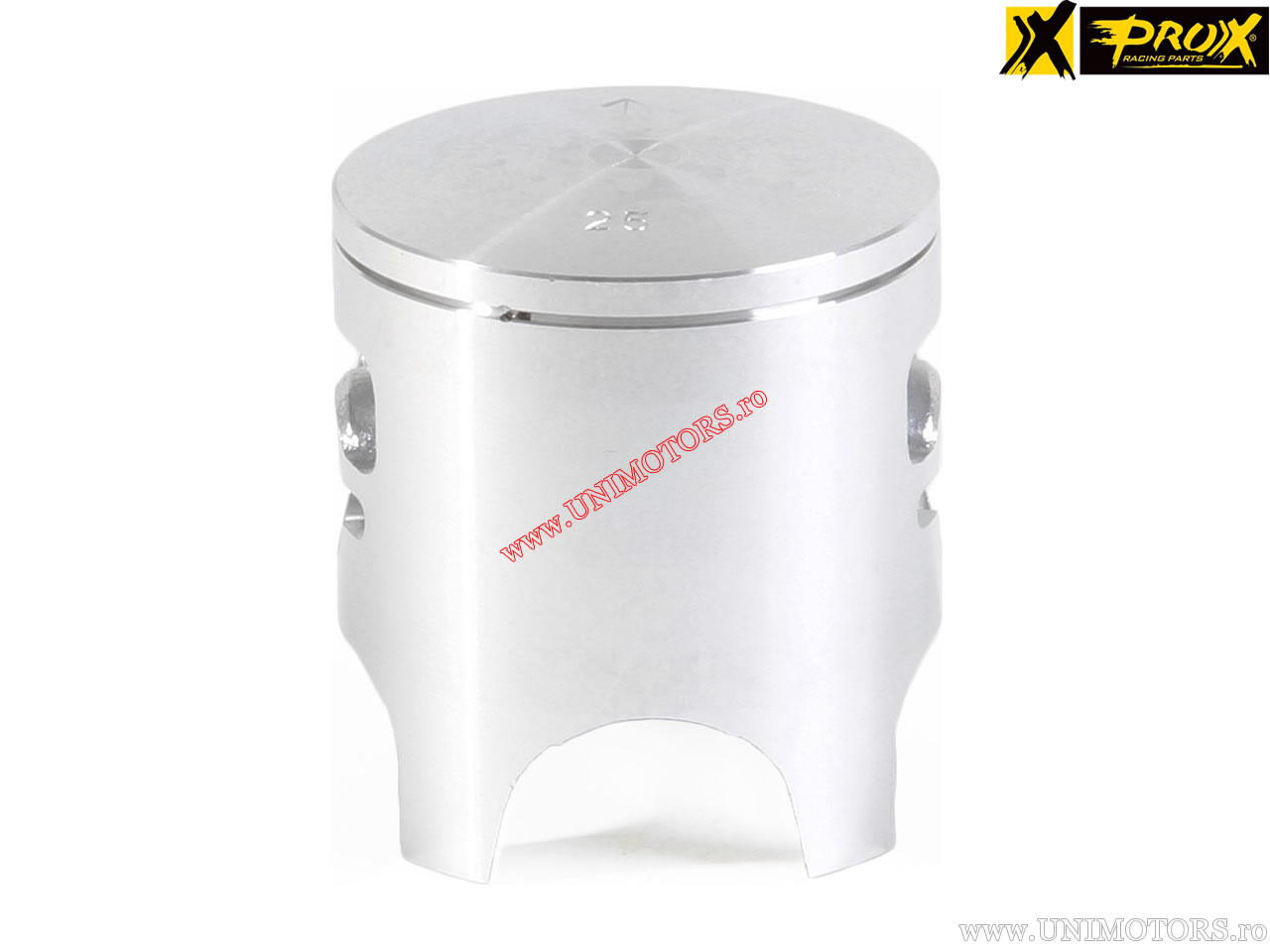

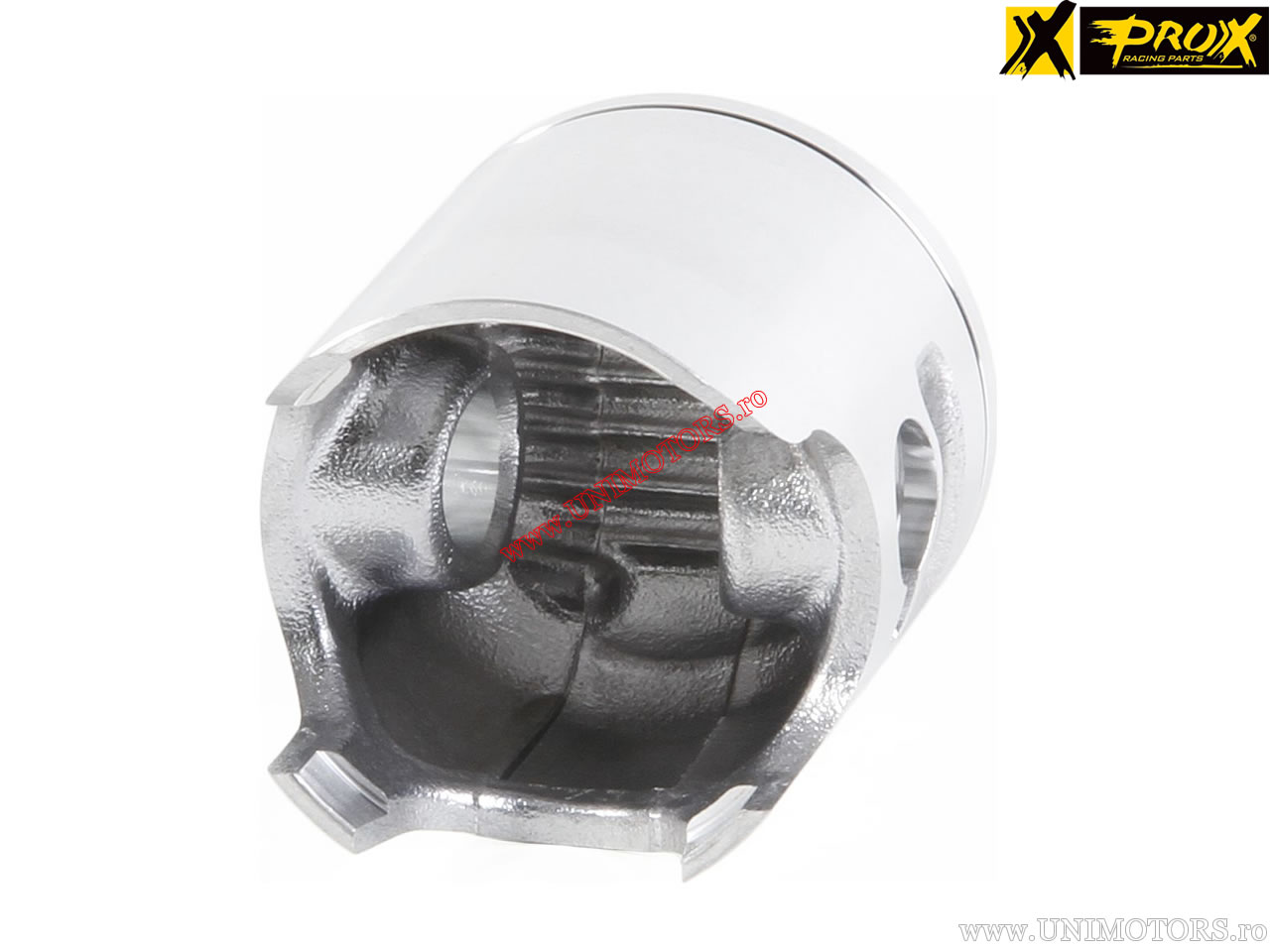

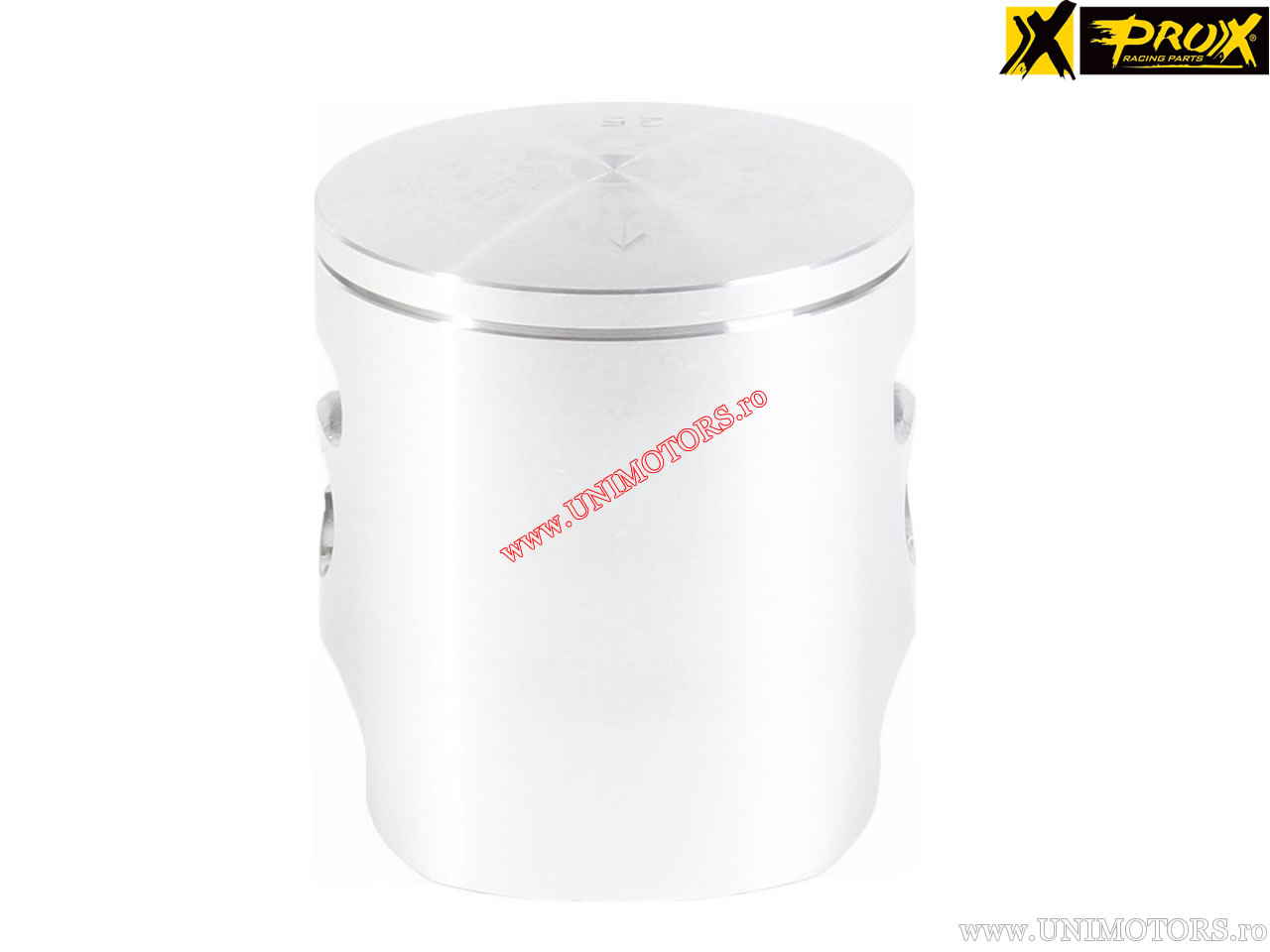

ProX piston kit for Honda CR 125 R manufactured between 1985-1986 - 125cc 2T. The complete application list can be found below.

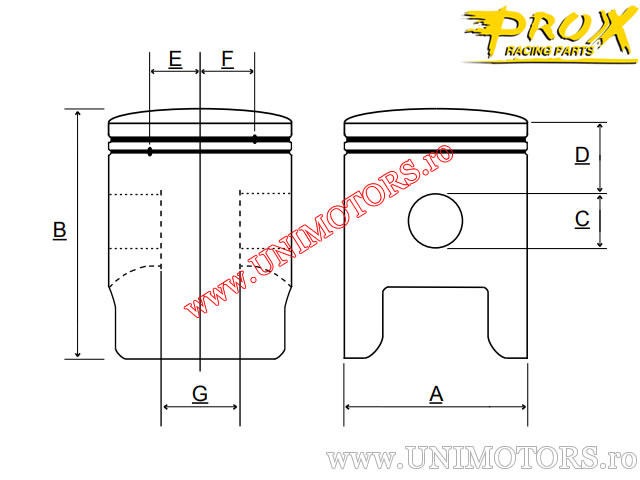

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 60.50 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 21.00 mm
- pin ring position measured from center (E): 12.50 mm
- pin ring position measured from center (F): -
- internal distance of piston pin (G): 19.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- +0.25 mm (54.25 mm)
