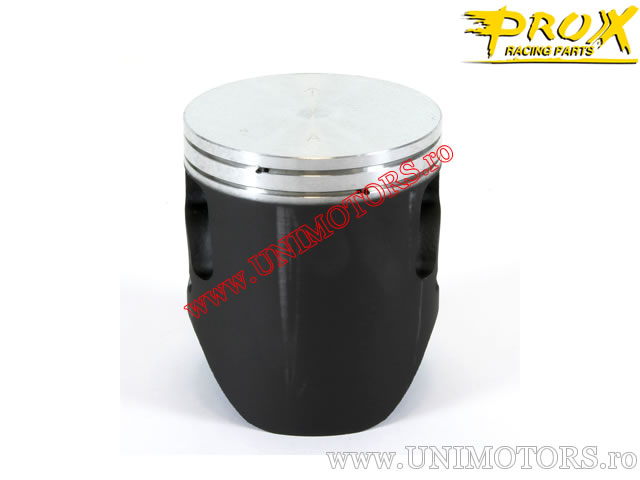

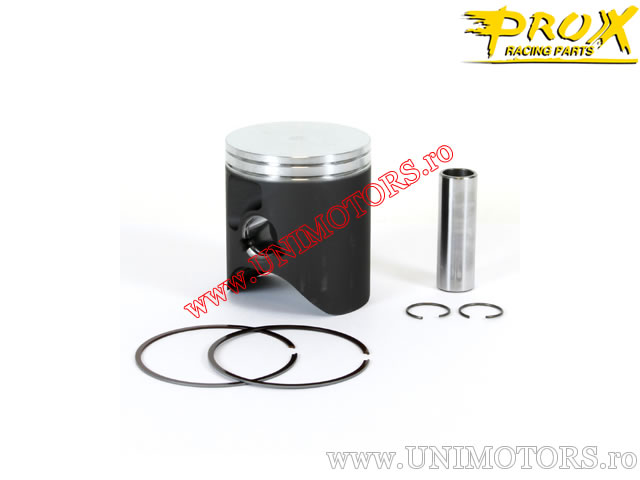

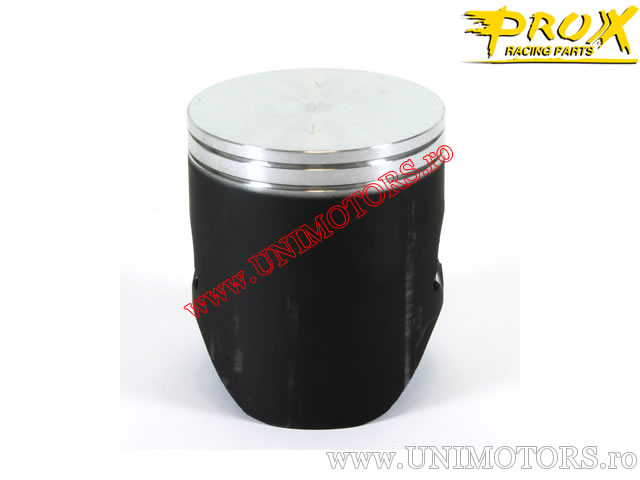

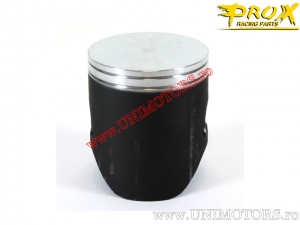

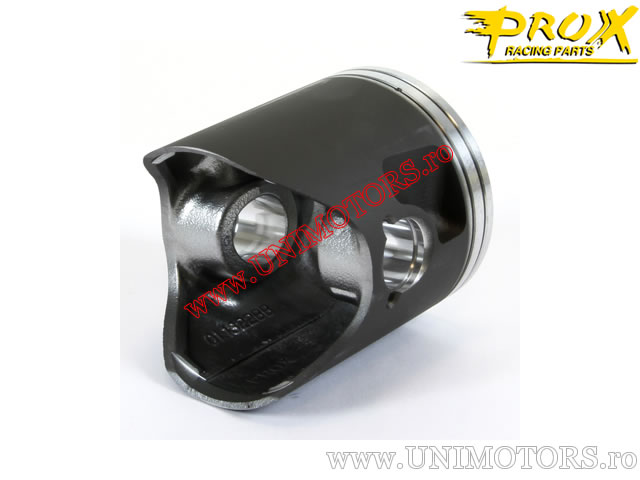

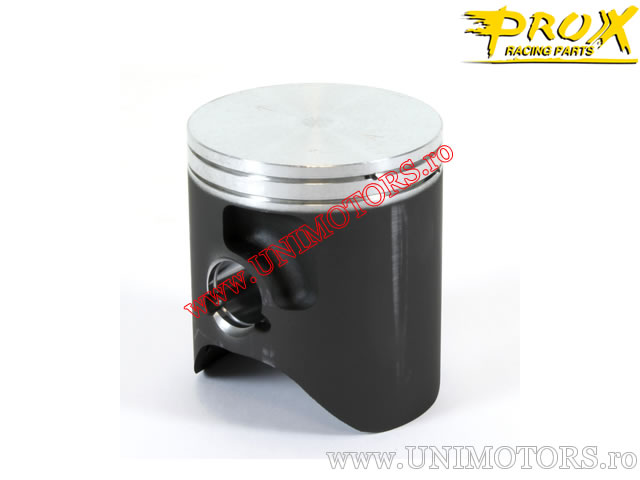

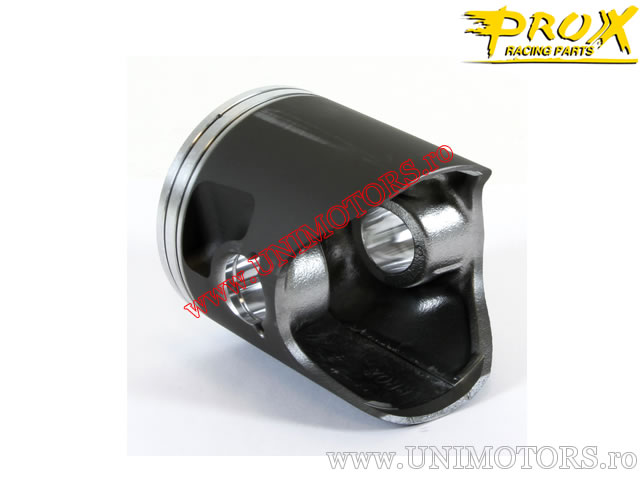

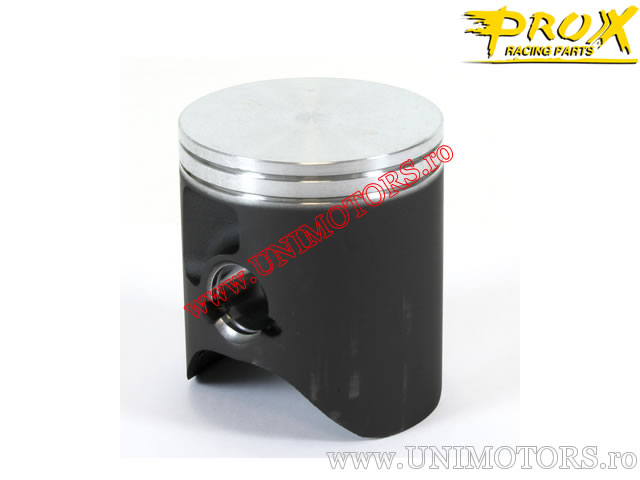

Piston Kit - Honda CR 250 R ('86-'96) / Suzuki RM 250 ('96-'97) - 250 2T - ProX

Please select the piston size from the box above.

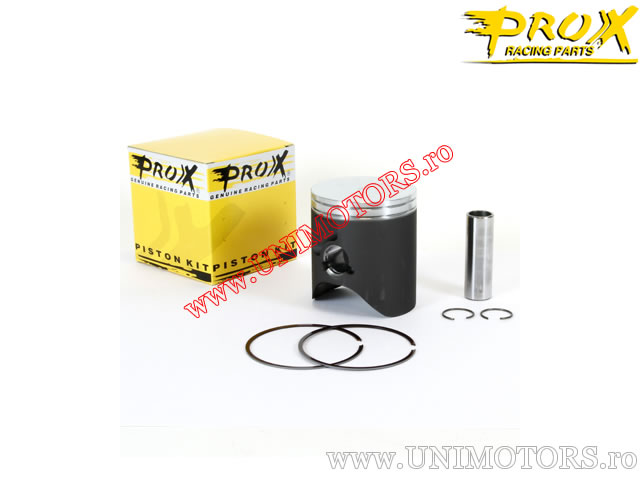

ProX piston kit for Honda CR 250 R (1986-1996) / Suzuki RM 250 (1996-1997) - 250cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 66.40 mm
- engine type: 2-stroke
- total piston length (B): 79.00 mm
- piston pin diameter (C): 18.00 mm
- compression height (D): 29.00 mm
- pin ring position measured from center (E): 14.00 mm
- pin ring position measured from center (F): 14.00 mm
- internal distance of piston pin (G): 23.50 mm
- piston head shape: domed
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (66.34 mm)
- B (66.35 mm)
- C (66.36 mm)
- D (66.37 mm)
- E (66.38 mm)
