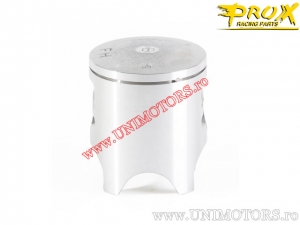

Piston Kit - Honda CR 80 R ('86-'02 - international version - 79cc) - 80 2T - ProX

Please select the piston size from the box above.

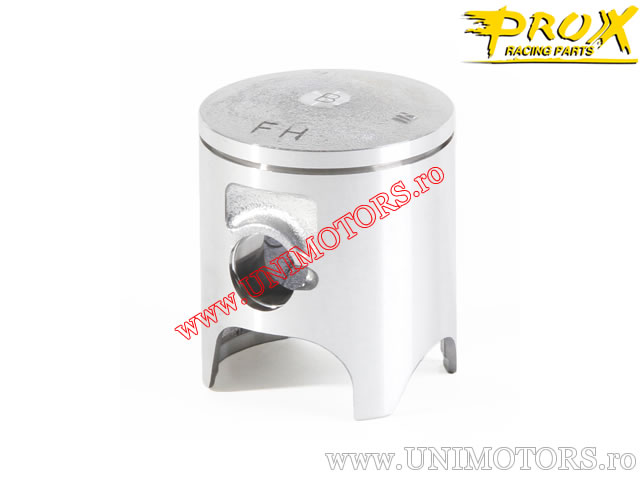

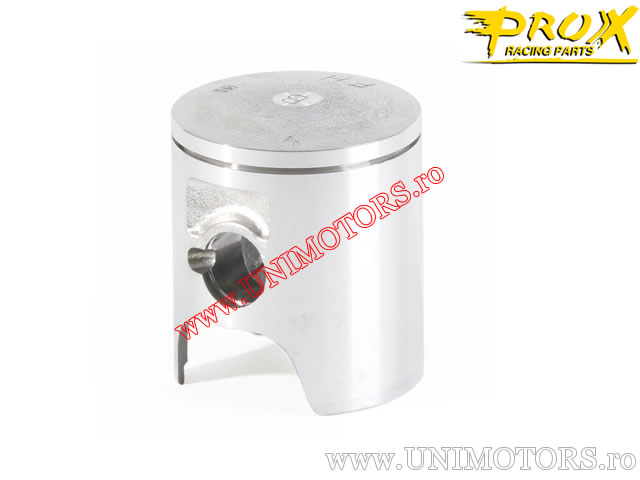

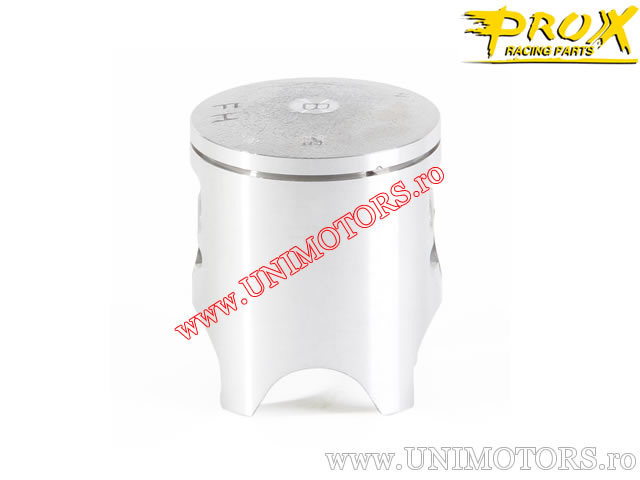

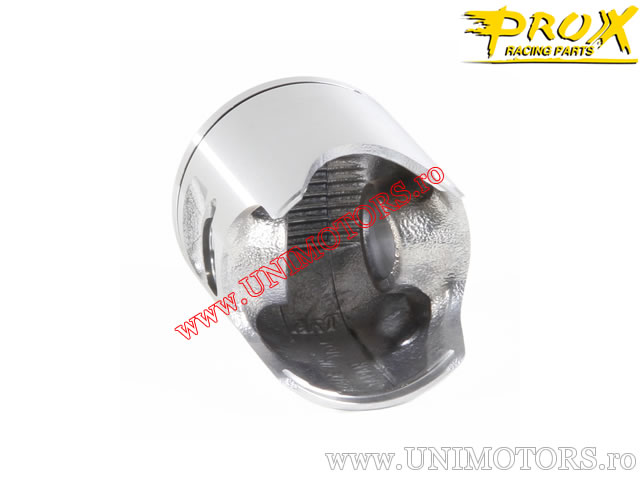

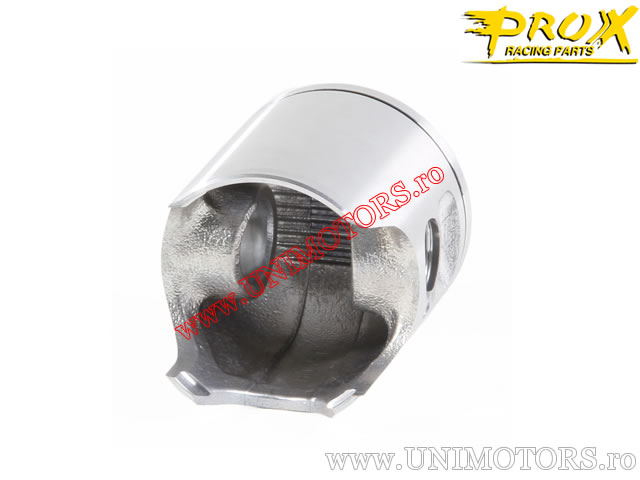

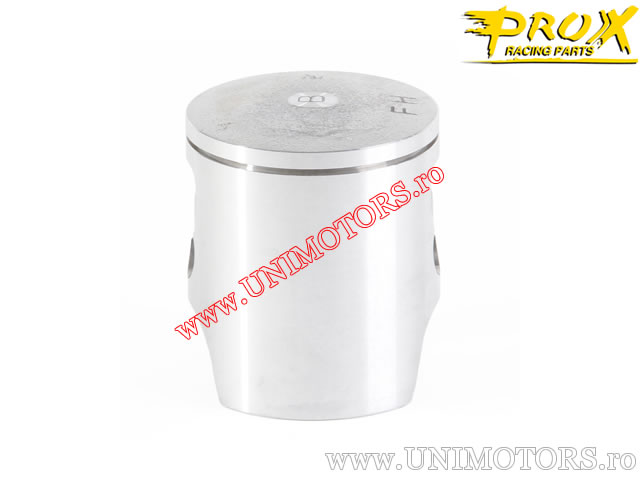

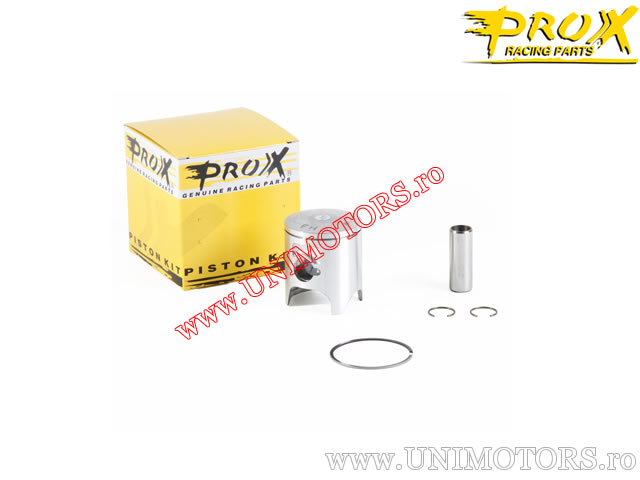

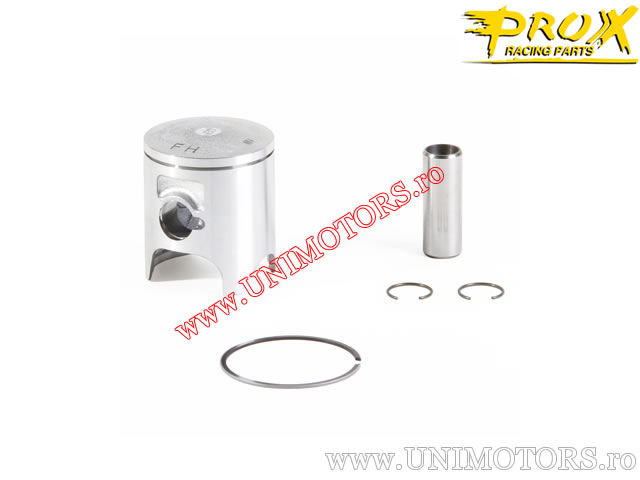

ProX piston kit for Honda CR 80 R manufactured from 1986-2002 - international version - 80cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 46.00 mm
- engine type: 2 stroke
- total piston length (B): 53.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 17.00 mm
- pin ring position measured from center (E): -
- pin ring position measured from center (F): 11.50 mm
- internal distance of piston pin (G): 16.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- B (45.95 mm)
- C (45.96 mm)
